- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V,50HZ,3 phase
-
Disc Dia.:
-
None
-
No Load Speed:
-
None
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Longxiang
-
Model Number:
-
LX-4
-
Warranty:
-
1year
-
Product name:
-

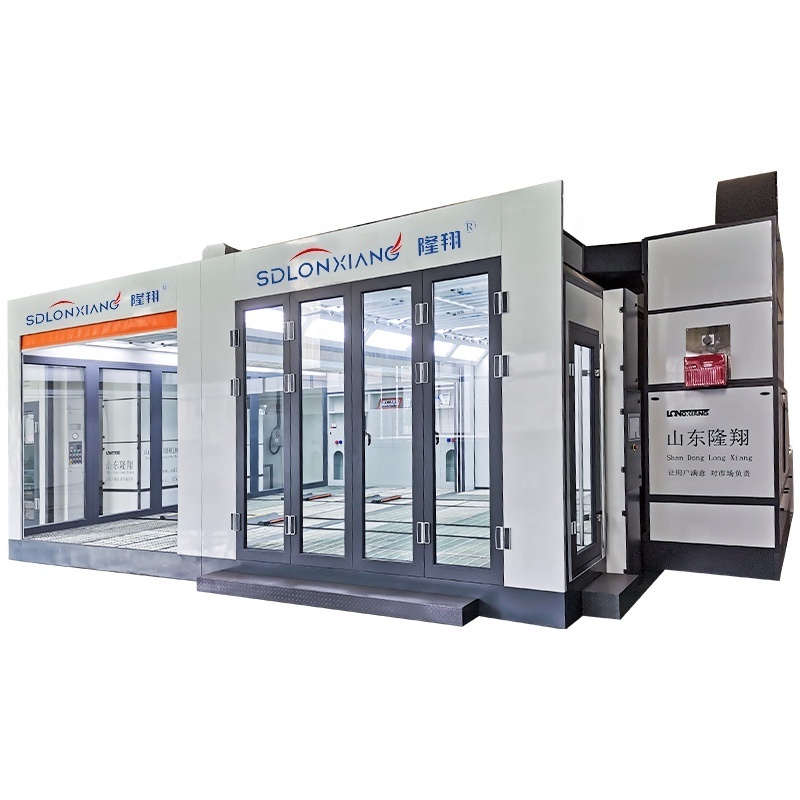

Bake Oven Booth
-
Color:
-
Cutomized
-
Lighting System:
-
32pcs LED Lights
-
Heating System:
-
Electric Heating
-
Packing detail:
-
Safe Packing
-
Ventilation system:
-
2pcs Intake Fans
-
Control System:
-
Electric Control Panel
-
Filter system:
-
Primary Filter + Ceiling Filter +Floor Filter
-
Product:
-
Automobile Paint Booth
-
Ceiling light:
-
32 Pieces
Quick Details
-
Power:
-
16KW
-
External Size:
-
7000*5200*3400mm
-
Internal Size:
-
6900*3900*2650mm
-
Voltage:
-
380V,50HZ,3 phase
-
Disc Dia.:
-
None
-
No Load Speed:
-
None
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Longxiang
-
Model Number:
-
LX-4
-
Warranty:
-
1year
-
Product name:
-
Bake Oven Booth
-
Color:
-
Cutomized
-
Lighting System:
-
32pcs LED Lights
-
Heating System:
-
Electric Heating
-
Packing detail:
-
Safe Packing
-
Ventilation system:
-
2pcs Intake Fans
-
Control System:
-
Electric Control Panel
-
Filter system:
-
Primary Filter + Ceiling Filter +Floor Filter
-
Product:
-
Automobile Paint Booth
-
Ceiling light:
-
32 Pieces
Products Description
|
LX-4
|
|
|
|
|
||||
|
Outside size
|
7000x5200x3400mm(LxWxH)
|
|
|
|
||||
|
Inside size
|
6900×3900×2650mm(L×W×H)
|
|
|
|
||||
|
Entrance door
|
3 folds，3000x2600 mm(W×H), bending steel door
|
|
|
|
||||
|
Emergency door
|
650*2000mm(W*H),equipped with handle lock
|
|
|
|
||||
|
Main System
|
|
|
|
|
||||
|
Cabin system
|
Wall panel
|
-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation.
-High quality galvanized steel roof panel. |
|
|
||||
|
|
Basement
|
-Galvanized steel assemble,280mm high,quadrate steel support,2 rows of grills with 30*5mm,3 rows of diamond plates.
-2 ramps,external setting,900*2000mm(W*L)/pc |
|
|
||||
|
Ventilation system
|
Inlet fan
|
2*4kw double-intake centrifugal fans, air capacity:12500m³/h for each set
|
|
|
||||
|
|
Outlet fan
|
1*7.5kw double-intake centrifugal fan, air capacity:18000m³/h for each set
|
|
|
||||
|
|
Cabinet setting type
|
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .
-Cabinet for the fan*1unit ,air duct*1unit, -Elbow:90°*1 unit |
|
|
||||
|
Heating system
|
Burner
|
Italy RIELLO G20 oil burner
, heating capacity: 180000Kcal/h, with pneumatic damper from spraying to baking cycle
|
|
|
||||
|
|
Heat Exchanger
|
1.5mm thickness
SUS304
stainless steel
|
|
|
||||
|
|
Cabinet
|
Rock-wool insulation*1 unit, heat insulation and preservation,inflaming retarding
|
|
|
||||
|
Lighting system
|
Ceiling lights
|
8*4pcs*16w LED lighting
|
|
|
||||
|
|
Side lights
|
8*4pcs*16w LED lighting.
|
|
|
||||
|
Filtering system
|
Primary filter
|
Grade
G2
plate type , filtering rate＞83%
|
|
|
||||
|
|
Ceiling filter
|
EU5
grade high efficient filter,filtering rate＞98%
|
|
|
||||
|
|
Floor filter
|
Multi-layer fiberglass filter,filtering rate＞70%
|
|
|
||||
|
Control system
|
Control panel
|
Intelligent control system
|
|
|
||||
|
|
Function
|
Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etc
|
|
|
||||
|
Total power
|
16.5 KW
|
|
|
|
||||
|
Voltage/
frequency
|
380V,50HZ,3phase
|
|
|
|
||||
