Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minew
-
Supplier Type:
-
Manufacturer
-
Name:
-
WiFi Gateway Bridge Long Range BLE 5.0 Wifi and Bluetooth IoT Gateway
-
Network Mode:
-
Router/Repeater/3g
-
Features:
-
WiFi/Bluetooth/Wireless Devices
-
Product Size:
-
23*16*5cm
-
Input:
-
DC 5V/1A,802.3af POE
-
Cover Range:
-
300 m
-
Port:
-
RJ45/USB/TF Card
-
Net Protocal:
-
MQTT/HTTP/TCP
-
Light strip:
-
Indicator
-
Upgrade:
-
USB/OTA
Quick Details
-
Chipset:
-
BLE 5.0 chip
-
Application:
-
indoor location
-
Model Number:
-
G1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minew
-
Supplier Type:
-
Manufacturer
-
Name:
-
WiFi Gateway Bridge Long Range BLE 5.0 Wifi and Bluetooth IoT Gateway
-
Network Mode:
-
Router/Repeater/3g
-
Features:
-
WiFi/Bluetooth/Wireless Devices
-
Product Size:
-
23*16*5cm
-
Input:
-
DC 5V/1A,802.3af POE
-
Cover Range:
-
300 m
-
Port:
-
RJ45/USB/TF Card
-
Net Protocal:
-
MQTT/HTTP/TCP
-
Light strip:
-
Indicator
-
Upgrade:
-
USB/OTA
Product Description

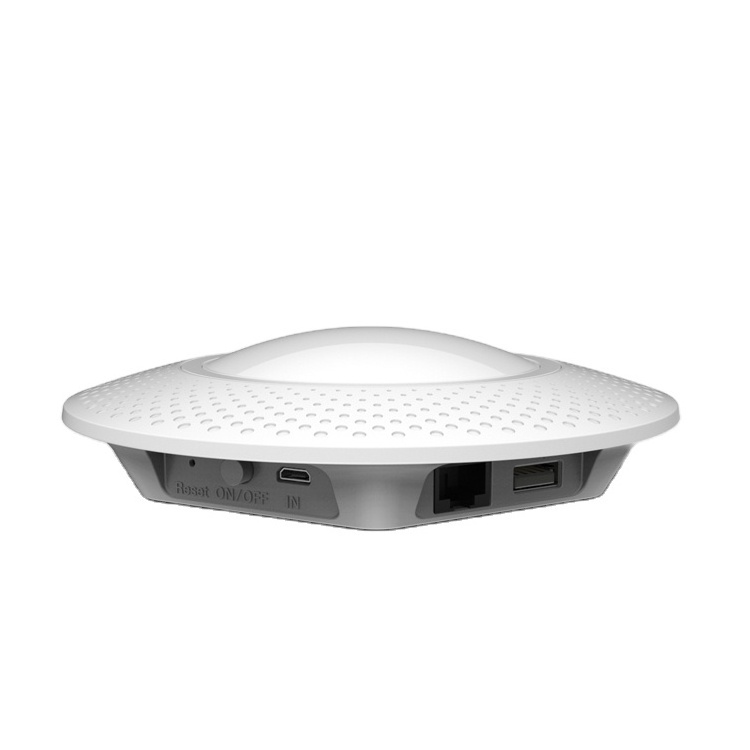

WiFi Gateway Bridge Long Range BLE 5.0 Wifi and Bluetooth IoT Gateway
G1 is WiFi/Bluetooth Gateway used to manage the wireless BLE devices, like beacons. Cover the range to 300m and with the power supply by DC adaptor or POE.
You could set the gateway via AP mode or a simple Web UI
- Bluetooth 5.0 hardware nRF52832
- With a power amplifier
- With 3dBi flexible FPC antenna
- 300 meters range in open space
- Rx sensitivity -108dBm
- Bi-directional (reads data / sends command)
WiFi
:
-
Up to 150 Mbps PHY data rate
- With 3dBi flexible FPC antenna
- 100 meters range in open space
- 1T1R 2.4GHz frequency band
- IEEE 802.11b/g/n
- Web based UI for configuration
- Connects to the local server or remote cloud
General
- Input: DC 5.0V, 1A, micro-USB
- Supports 802.3af PoE standard
- Supports firmware upgrade Over-the-Air
- Operating temperature: -10℃ to 50℃
- Reads multiple BLE devices in the same time
- Supports TCP/HTTP/MQTT/mbed(ARM)
- Built-in RTC and NTP support
- RGB LED string as the status indicator
- Based on OpenWrt 15.05
- Input: DC 5.0V, 1A, micro-USB
- Supports 802.3af PoE standard
- Supports firmware upgrade Over-the-Air
- Operating temperature: -10℃ to 50℃
- Reads multiple BLE devices in the same time
- Supports TCP/HTTP/MQTT/mbed(ARM)
- Built-in RTC and NTP support
- RGB LED string as the status indicator
- Based on OpenWrt 15.05
Application
-
iBeacon / Eddystone / other BLE Beacon receiver
- BLE sensor reader / receiver
- Asset tracking
- Access control management
- Advertisement promotion
- Indoor location and position
- Industrial automation
- BLE sensor reader / receiver
- Asset tracking
- Access control management
- Advertisement promotion
- Indoor location and position
- Industrial automation
Packing & Delivery
For samples: we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.
For orders: bulk orders usually take about 2 to 3 weeks after payment received
|
Details
|
Package Box
|
Carton
|
|
|
|
Quantity(G1)
|
1 pc
|
12 pcs
|
|
|
|
Size
|
23*16*5cm
|
32*23.5*40cm
|
|
|
|
Gross Weight
|
0.5kg
|
6kg
|
|
|
Certifications
Our Company
Minew specialized in IoT (Internet of Things) field, focus on high quality beacon device development, from the design, manufacture to sale. We established since 2007 and is the leading IoT related manufacture now.
Via providing smart devices and IoT solutions, we serve to optimize customers' lives, works and businesses, improving efficiency and convenience.
We have/certificated:
IOS9001:2008 Quality Management System
Professional R&D team, sales team and effective production line
CE, FCC, RoHs, ANATEL, Japan Radio Frequency Permit
Exhibitions
Every year, we would attend exhibitions both at home and abroad. Such as the CES Vegas, Cebit Hanover and so on, hope to have a have meet with you then.
F&A:
Q1: Do you provide the technical support to the developers?
A: SURE. The following technical data and documents will be provided.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions
Q2: Can we brand your product with our company LOGO?
A: Yes, We offer the OEM/ODM service.
Q3: How can we get the samples to test?
A: You can confirm the order on Alibaba or contact us to pay it via Paypal , samples can supply from stock. you can receive the samples within 3-4 days after you pay it.
Q4: Do you have any certificats?
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions
Q2: Can we brand your product with our company LOGO?
A: Yes, We offer the OEM/ODM service.
Q3: How can we get the samples to test?
A: You can confirm the order on Alibaba or contact us to pay it via Paypal , samples can supply from stock. you can receive the samples within 3-4 days after you pay it.
Q4: Do you have any certificats?
A: Yes, we have CE, RoHs, and FCC for all of our products.
Q5: What's the warranty of the product?
A: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
A: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
