Quick Details
-
Drilling depth:
-
180m
-
Drilling diameter:
-
110-202mm
-
Working pressure:
-
1.05-2.46Mpa
-
Air consumption:
-
16-30m3/min
-
Lift power:
-
5ton
-
torque:
-
4200N.m
-
Diesel engine:
-
YC4D80
-
Drilling method:
-
top drive hydraulic rotary drilling
-
Drill rod caliber:
-
89/76mm*2m/pc
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
After-sales Service Provided:
-
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
auger drill rig
-
Drilling depth:
-
180m
-
Drilling diameter:
-
110-202mm
-
Working pressure:
-
1.05-2.46Mpa
-
Air consumption:
-
16-30m3/min
-
Lift power:
-
5ton
-
torque:
-
4200N.m
-
Diesel engine:
-
YC4D80
-
Drilling method:
-
top drive hydraulic rotary drilling
-
Drill rod caliber:
-
89/76mm*2m/pc
-
Certification:
-
ISO

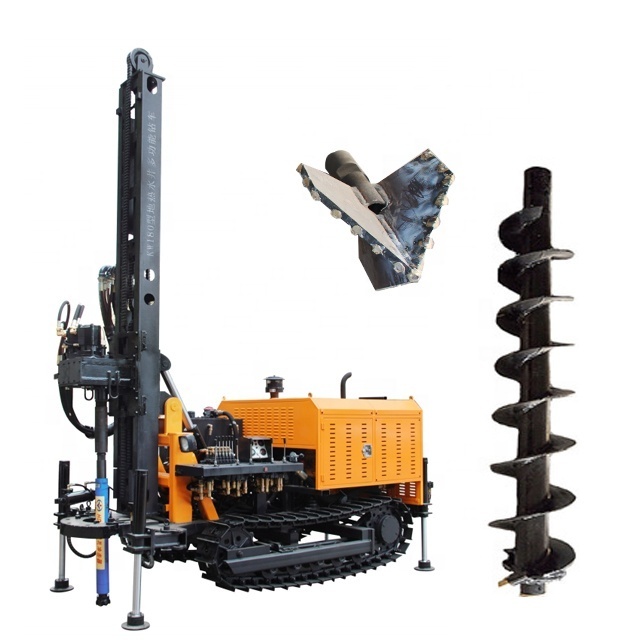

YCW180 crawler auger drill rig with auger pipe and three wing drill bit for soil
Tecnical parameter of auger drill rig
|
Model No |
YCW180 auger drill rig
|
|
Drilling Hole Diameter |
110-202mm |
|
Drilling Depth |
180m |
|
Working pressure |
10.5-24.6bar |
|
Air consumption |
16-30m³/min |
|
Propeller Shaft Stress |
0-2.5T |
|
Lifting power |
5T |
|
Pulling Force of Landing Leg Cylinder |
32T(4 legs) |
|
Stroke of Landing Leg Oil Cylinder |
0.4m |
|
Sliding Plate Stroke |
2380mm |
|
Slow Lifting Speed |
8m/min |
|
Slow Pushing Speed |
0-15m/min |
|
Fast Lifting Speed |
26m/min |
|
Fast Pushing Speed |
51m/min |
|
Rotation torque |
4200N.m |
|
Rotation Speed |
33-67r/min |
|
Lifting Power of Hoist |
1T |
|
Diesel Engine model |
YC4D80 |
|
Engine Power |
58kw |
|
Travelling speed |
0-2.5 km/h |
|
Climb capacity |
20° |
|
Weight |
4500kg |
|
Dimension |
2700*1550*2350mm |
Application o f auger drill rig
K W 180 is punctured equipment for light, efficient, versatile,
it is mainly applied to bore hole drilling wells, geothermal air conditioning hole and other uses.
Advantage of auger drill rig
introduction of auger drill rig
The rig can create jobs in different formations, the max. hole depth of up to 200 meters T he rig using a new
type of hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder pushing, factory engine to provide power for the hydraulic system, the two stage air filter and air compressor
air inlet design, prolong the service life of dieselengine. Convenient pump group design unique repair, reduce repair cost.
Hydraulic centralcontrol console, convenient operation. The rig adopts a special crawler chassis of engineering machinery, strong crosscountry performance. Module design independently, can make the rig mounted on trucks, increase its mobility. Positioner combined, can be adjusted according to the drill pipe and the impact of different types of replacing the positioning disk, to ensure the positioning accuracy, reliable centering.
