Quick Details
-
Power Supply:
-
DC12-57V
-
MOQ:
-
2 Pcs
-
Interface:
-
RJ45
-
Weight:
-
0.3KG
-
Dimensions (W x D x H):
-
115*85*32mm
-
Operating Temperature:
-
-30 ~ 80℃(-22~+176F)
-
Relative Humidity:
-
5%-95%
-
Shell Material:
-
Aluminium Alloy
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Place of Origin:
-
Guangdong, China
-
Power Supply:
-
DC12-57V
-
MOQ:
-
2 Pcs
-
Interface:
-
RJ45
-
Weight:
-
0.3KG
-
Dimensions (W x D x H):
-
115*85*32mm
-
Operating Temperature:
-
-30 ~ 80℃(-22~+176F)
-
Relative Humidity:
-
5%-95%
-
Shell Material:
-
Aluminium Alloy
Product Description

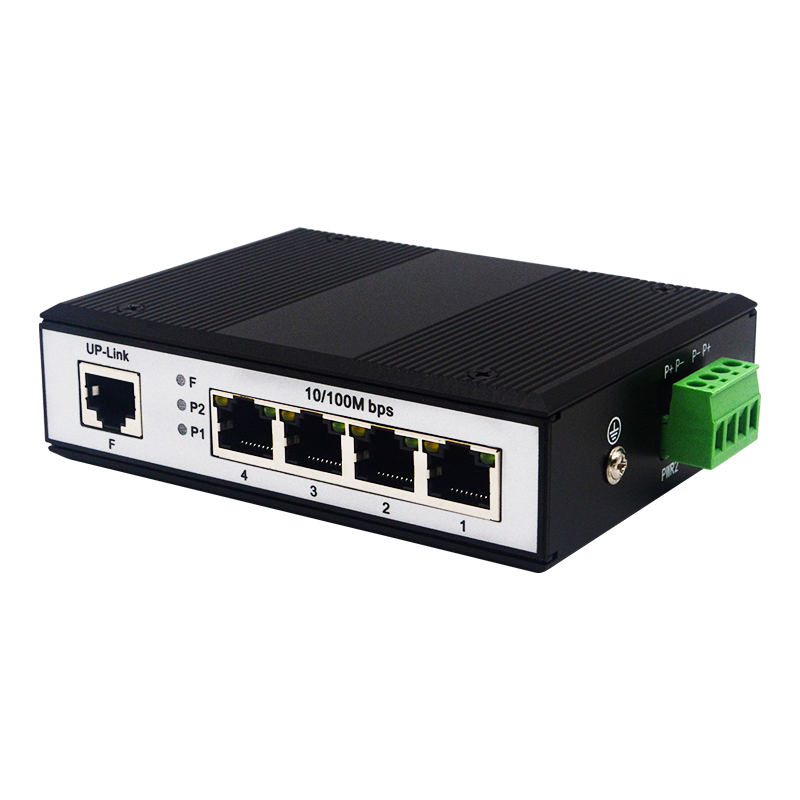

1.Ethernet port interface: 5 x fast Ethernet ports.
2.Din-rail & Wall mount kit: This 5-port Fast Ethernet Switch comes with an integrated DIN-rail mount and mounting hardware.
3.Extreme temperature Switch: the metal hardened IP30 rated network switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, while operating with a wide temperature range (- 30 – 80 °C For harsh environments.
4.Redundant power: the 5 port switch feature Dual power inputs to provide redundant power with overload current protection
5.Power supply sold separately: The power supply for this 5 port DIN-rail Ethernet Switch is sold separately.
Specification
|
Transmission Distance
|
0-100 meter
|
|
Transmission Rate
|
10/100Mbps
|
|
Ports
|
5*10/100Mbps RJ45 ports
|
|
Network Cable
|
Cat5, Cat5e
|
|
Communication Mode
|
Full-Duplex & Half-Duplex
|
|
Power
|
DC12-57V Double-power Supply redundancy
|
|
Installation Method
|
DIN-rail mounting
|
|
Lightning Protection Level
|
Second Level Lightning Protection
|
|
Applicable Environment
|
Industrial
|
|
Fan
|
No Fan, Natural Heat Dissipation
|
|
Dimensions (WxDxH)
|
115 x 85x 32mm
|
|
Weight
|
0.3Kg
|
|
Relative Humidity
|
5%-95%
|
|
Operating Temperature:
|
-30°C to 80°C (-22°F to 176°F)
|
|
Shell Material
|
Aluminium Alloy
|
|
Networking Protocol
|
IEEE803.3 10Base-T,IEEE203.3i 10Base-T,IEEE802.3u,100Base-TX/FX,IEEE802.3ab 100Base-T,IEEE802.3z 100Base-X,IEEE802.3x
|
|
Attention
|
(Optional POE function),the price not include power adapter
|
