There is safety net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
2000 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BrightSail
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Referring
-
Power (kW):
-
5.5 kW
-
Marketing Type:
-
Hot Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
SUS304,SUS 316,carbon steel
-
MOQ:
-
1 Set
-
Usage:
-
mixing powder, or mixing powder with liquid
-
mixer:
-
Spiral Horizontal Ribbon Mixer Machine / Blender Mixer
-
Power(W):
-
0.75KW~45KW
-
Certification:
-
CE ISO
-
Application fields:
-
Chemicals Processing
-
Application scope:
-
Food Processing
Quick Details
-
Barrel Volume (L):
-
20000
-
Max. Loading Volume (L):
-
200000 L
-
Max. Loading Capacity:
-
10000L
-
Weight (KG):
-
2000 KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BrightSail
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Referring
-
Power (kW):
-
5.5 kW
-
Marketing Type:
-
Hot Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
SUS304,SUS 316,carbon steel
-
MOQ:
-
1 Set
-
Usage:
-
mixing powder, or mixing powder with liquid
-
mixer:
-
Spiral Horizontal Ribbon Mixer Machine / Blender Mixer
-
Power(W):
-
0.75KW~45KW
-
Certification:
-
CE ISO
-
Application fields:
-
Chemicals Processing
-
Application scope:
-
Food Processing

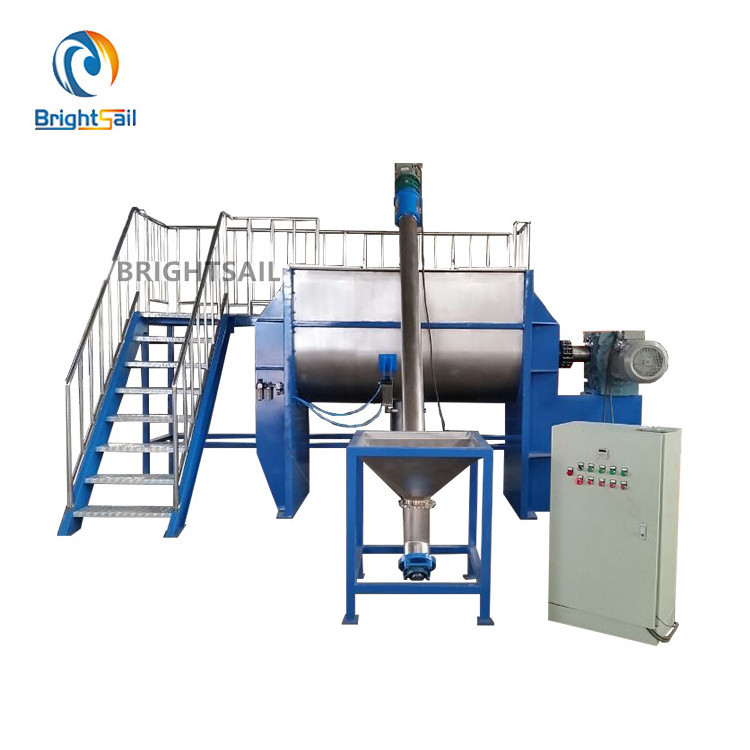

Ribbon mixer
Product Application
Horizontal ribbon mixer comprises of U-shape barrel,transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.
It has a very good effect for mixing spice or dry powder with liquid .
|
Model
|
Max work volume(L)
|
Rotate speed (rpm)
|
Overall size (L*W*H) (mm)
|
Weight(kh)
|
|
BSR-300
|
180
|
66
|
1550(L)*812(W)*1015(H)
|
780
|
|
BSR -500
|
300
|
66
|
1975(L)*1059(W)*1120(H)
|
955
|
|
BSR-1000
|
600
|
41
|
2340(L)*1380(W)*1455(H)
|
1400
|
|
BSR-2000
|
1200
|
33
|
2480(L)*1651(W)*1805(H)
|
2500
|
|
BSR-3000
|
1800
|
33
|
2945(L)*1896(W)*1980(H)
|
3300
|
|
BSR-4000
|
2400
|
29
|
3038(L)*1946(W)*2205(H)
|
3600
|
|
BSR-5000
|
3000
|
29
|
3932(L)*2010(W)*2035(H)
|
4620
|
|
BSR-6000
|
3600
|
26
|
3938(L)*1882(W)*2246(H)
|
5300
|
|
BSR-8000
|
4800
|
26
|
3986(L)*2160(W)*2516(H)
|
6800
|
|
BSR-10000
|
6000
|
19
|
4500(L)*2270(W)*2667(H)
|
8900
|
Main Features
1) Simple structure in horizontal U shape ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ,bearings and operation parts.
3) hermetic seals are adopted on both sides of our ribbon mixer,
4) There is safety net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
5) Pneumatic valve is adopted to discharge material
Detailed Images
Ribbon mixer cover (safety net)
Discharge Type
Pneumatic valve is adopted to discharge material
Seal Type on sides of mixer
hermetic seals are adopted on both sides of our ribbon mixer, so powder will not leak into bearing and powder leakage will not happen.
TO ACHIEVE BEST QUALITY
1) We use motor from ABB/Siemens/WEG
2) We adopts electrical control parts from Schneider/Delixi
3) We use bearings from SKF
2) We adopts electrical control parts from Schneider/Delixi
3) We use bearings from SKF
Our Service
Pre-Sales Service
* Inquiry and consulting support within 24 hours
* Sample testing support.
* View our Factory.
After-Sales Service
* Instructing how to install the machine, instructing how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
It depends
|
|
|
Weight
|
It depends
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
20ft container 40 ft container
|
|
|
Weight
|
It depends
|
|
|
Packaging Details
|
Machine won't move inside the container. |
|
