Quick Details
-
Filling Accuracy:
-
±2%
-
Voltage:
-
3P AC208-415V 50/60Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTPM CHINA
-
Dimension(L*W*H):
-
1205*1010*2174mm
-
Weight:
-
350 KG
-
Hopper:
-
Quick disconnecting hopper 75L
-
Packing Weight:
-
10 - 10000g
-
Packing precision:
-
≤ 100g,≤±2%; 100~500g,≤±1%;≥500g,≤±0.5%
-
Filling speed:
-
5~20 times per min
-
Power supply:
-
3P AC208~415V 50/60Hz
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Machinery Capacity:
-
100BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Powder
-
Filling Accuracy:
-
±2%
-
Voltage:
-
3P AC208-415V 50/60Hz
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTPM CHINA
-
Dimension(L*W*H):
-
1205*1010*2174mm
-
Weight:
-
350 KG
-
Hopper:
-
Quick disconnecting hopper 75L
-
Packing Weight:
-
10 - 10000g
-
Packing precision:
-
≤ 100g,≤±2%; 100~500g,≤±1%;≥500g,≤±0.5%
-
Filling speed:
-
5~20 times per min
-
Power supply:
-
3P AC208~415V 50/60Hz
-
Marketing Type:
-
Hot Product 2022
The Marked Prices Of Our Products Are All Range Prices Of The Entire Product Series.
If You Need a Detailed Quotation, Please
Send An Inquiry
At The Bottom Of The Page.

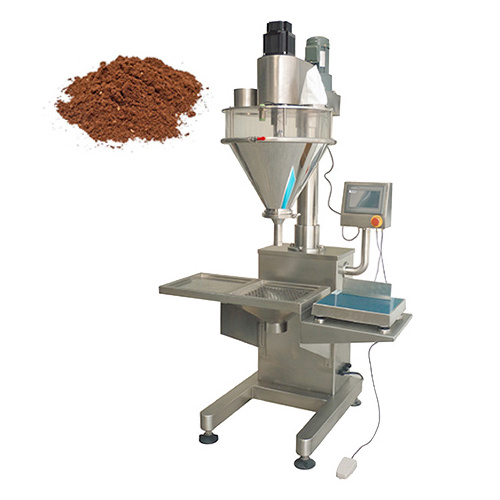

This Type Can Do Dosing And Filling Work. Due To The Special Professional Design, So It Is Suitable To The Fluidic Or Low-Fluidity Materials,
Like
Condiment, Cosmetic, Coffee Powder, Solid Drink, Veterinary Drugs, Dextrose, Pharmaceuticals, Powder Additive, Talcum Powder, Agriculture Pesticide, Dyestuff
, And So On.
Machine Parameters
|
Model
|
LTAGF-25
|
LTAGF-50
|
LTAGF-75
|
||
|
Hopper
|
Quick disconnecting hopper 25L
|
Quick disconnecting hopper 50L
|
Quick disconnecting hopper 75L
|
||
|
Packing Weight
|
1 - 500g
|
10 - 5000g
|
10 - 10000g
|
||
|
Packing Weight
|
1 – 10g, ≤±3-5%;10 - 100g, ≤±2%; 100 – 500g, ≤±1%
|
≤100g,≤±2%;100–500g,≤±1%
;≥500g,≤±0.5%
|
≤100g,≤±2%;100–500g,≤±1%;
≥500g,≤±0.5%
|
||
|
Filling speed
|
0 – 60 times per min
|
20 – 40 times per min
|
5 – 20 times per min
|
||
|
Power supply
|
3P AC208-415V 50/60Hz
|
3P AC208-415V 50/60Hz
|
3P AC208-415V 50/60Hz
|
||
|
Total Power
|
0.93 Kw
|
1.4Kw
|
2.25Kw
|
||
|
Total Weight
|
130kg
|
260kg
|
350kg
|
||
|
Overall Dimensions
|
800×790×1900mm
|
1140×970×2030mm
|
1205×1010×2174mm
|
||
Features
1.Stainless Steel Structure; Quick Disconnecting Hopper Could Be Washed Easily Without Tools.
2.Servo Motor Drive Screw.
3.Weight Feedback And Proportion Track Get Rid Of The Shortage Of Variable Packaged Weight For Various Proportion Of Different Material.
4.Save The Parameter Of Different Filling Weight For Different Materials. To Save 10 Sets At Most
5.Replacing The Auger Parts, It Is Suitable For Material From Super Thin Powder To Granule.
Product Details
1.Foot Brake Control Filling, Simple And Convenient
2.Four Foot Pads Make The Machine More Stable
3.The Place Where The Empty Bottle Is Placed Makes The Operation Very Smooth
4.To Avoid The Waste Of Materials During The Filling Process, Re-Collect Them Through The Filter Screen.
5.Weighing Equipment
6.Touch Screen
7.Feeding Foot Plate Screw, So That The Material Can Be Fed More Smoothly
8.Plexiglass Cover, Observe The Amount Of Material
9.Motor Parts
