• Flexible-installing & Easy-handling.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25
-
Brand Name:
-
Trina
-
Model Number:
-
TSM-NE09RC.05
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1762*1134*30mm
-
Place of origin:
-
China(Jiangsu)
-
Brand name:
-
Trina
-
size:
-
1762*1134*30mm
-
Product name:
-
425W Solar Panel
-
Frame:
-
30mm Anodized aluminium alloy
-
Backsheet:
-
Black
-
Solar cells:
-
monocrystalline
-
Cell Orientation:
-
144 cells
-
Weight:
-
21.8kg
-
Connector:
-
MC4 EVO2/TS4*
-
Certificate:
-
IEC/ISO/UL
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
PERC, Half Cell, IBC, HJT, hbc, Flexible, BIPV, Double-glass, MWT, N-TYPE, All Black
-
Panel Efficiency:
-
21.8%
-
Warranty:
-
25
-
Brand Name:
-
Trina
-
Model Number:
-
TSM-NE09RC.05
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1762*1134*30mm
-
Place of origin:
-
China(Jiangsu)
-
Brand name:
-
Trina
-
size:
-
1762*1134*30mm
-
Product name:
-
425W Solar Panel
-
Frame:
-
30mm Anodized aluminium alloy
-
Backsheet:
-
Black
-
Solar cells:
-
monocrystalline
-
Cell Orientation:
-
144 cells
-
Weight:
-
21.8kg
-
Connector:
-
MC4 EVO2/TS4*
-
Certificate:
-
IEC/ISO/UL
Product Description
|
Peak Power Watts(Wp)*
|
410
|
415
|
420
|
425
|
430
|
435
|
|
Maximum Power Voltage Range(V)
|
41.8
|
42.1
|
42.5
|
42.8
|
43.2
|
43.6
|
|
Maximum Power Current(A)
|
9.81
|
9.85
|
9.89
|
9.92
|
9.95
|
9.99
|
|
Open Circuit Voltage(V)
|
49.7
|
50.1
|
50.5
|
50.9
|
51.4
|
51.8
|
|
Short Circuit Current(A)
|
10.46
|
10.50
|
10.54
|
10.57
|
10.60
|
10.65
|
|
Module Efficiency(%)
|
20.5
|
20.8
|
21.0
|
21.3
|
21.5
|
21.8
|
• Flexible-installing & Easy-handling.
Small in size, big on power

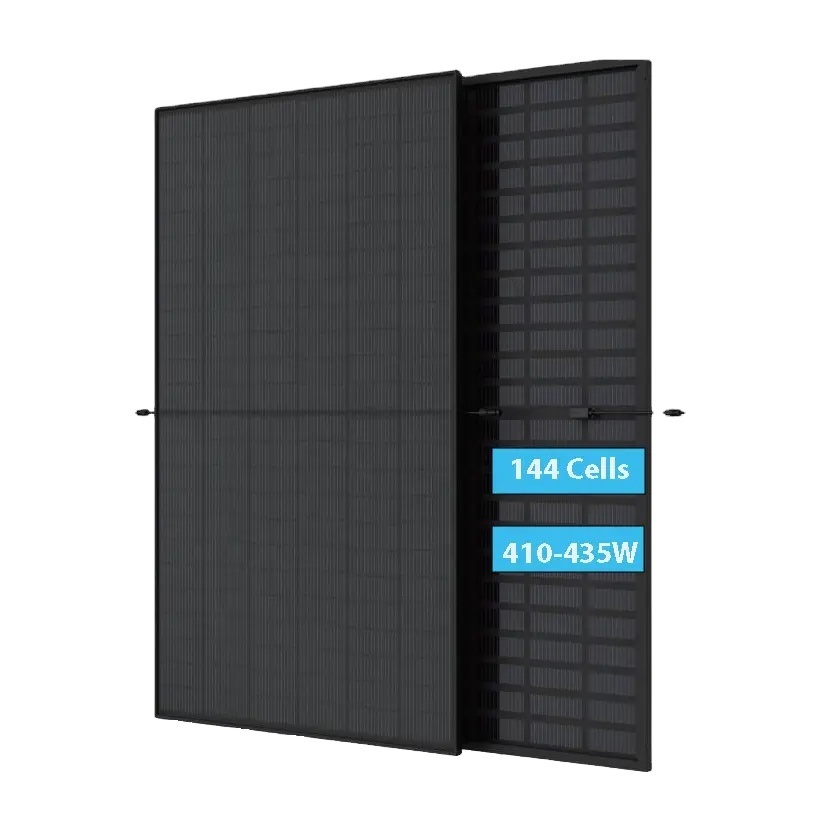

Based on advanced technology from the Vertex platform. The upgrade Vertex S 410W module is up to 435W, 21.8% module efficiency with high density interconnect technology. It is perfectly designed to fulfill power, efficiency, size, weight, appearance,mechanical load, reliability requirements of rooftop application! Best balance of power and size & weight.
Product Workmanship Warranty
25 Years
Performance Warranty
Product diagram
Why Choose Us
100% Cells Sorting
Ensure Colour and Power Difference.
Ensure high yields,consistent performance and durability,
First of 52 steps strict quality control and inspection process.
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final inspection, Continuous line monitoring and video/photo record for each cell and
panel
100% "Zero"
Defects Objective Before Shipment.
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
Defects Objective Before Shipment.
Most stringent acceptance criteria and tightest tolerance,
Ensure the best modules on the market- guaranteed!
Ensure 3% Positive Power Tolerance
Comprehensive QC information management system with barcode ID.Quality traceable system in place to allow quality data flow
constantly.
