Quick Details
-
Brand Name:
-
CF
-
Model Number:
-
TR-240 series
-
Max. Current:
-
16A
-
Mechanical Life:
-
50000 Cycles
-
Life cycles::
-
Up to 50,000 cycles
-
Current and volt.:
-
16A ,250VAC
-
Color:
-
Any color available
-
Material standard:
-
94 V0 flammability
-
Application:
-
oven ,electrical fan heater
-
Bipolar/unipolar:
-
2 to 16 positions
-
Certificates:
-
VDE TUV CE RoHS REACH
-
Below-panel case:
-
28 mm inter-axis screws
-
Heat and fire resistance:
-
GWFI 850° C
-
Distance between contacts:
-
> 3 mm
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CF
-
Model Number:
-
TR-240 series
-
Max. Current:
-
16A
-
Mechanical Life:
-
50000 Cycles
-
Life cycles::
-
Up to 50,000 cycles
-
Current and volt.:
-
16A ,250VAC
-
Color:
-
Any color available
-
Material standard:
-
94 V0 flammability
-
Application:
-
oven ,electrical fan heater
-
Bipolar/unipolar:
-
2 to 16 positions
-
Certificates:
-
VDE TUV CE RoHS REACH
-
Below-panel case:
-
28 mm inter-axis screws
-
Heat and fire resistance:
-
GWFI 850° C
-
Distance between contacts:
-
> 3 mm

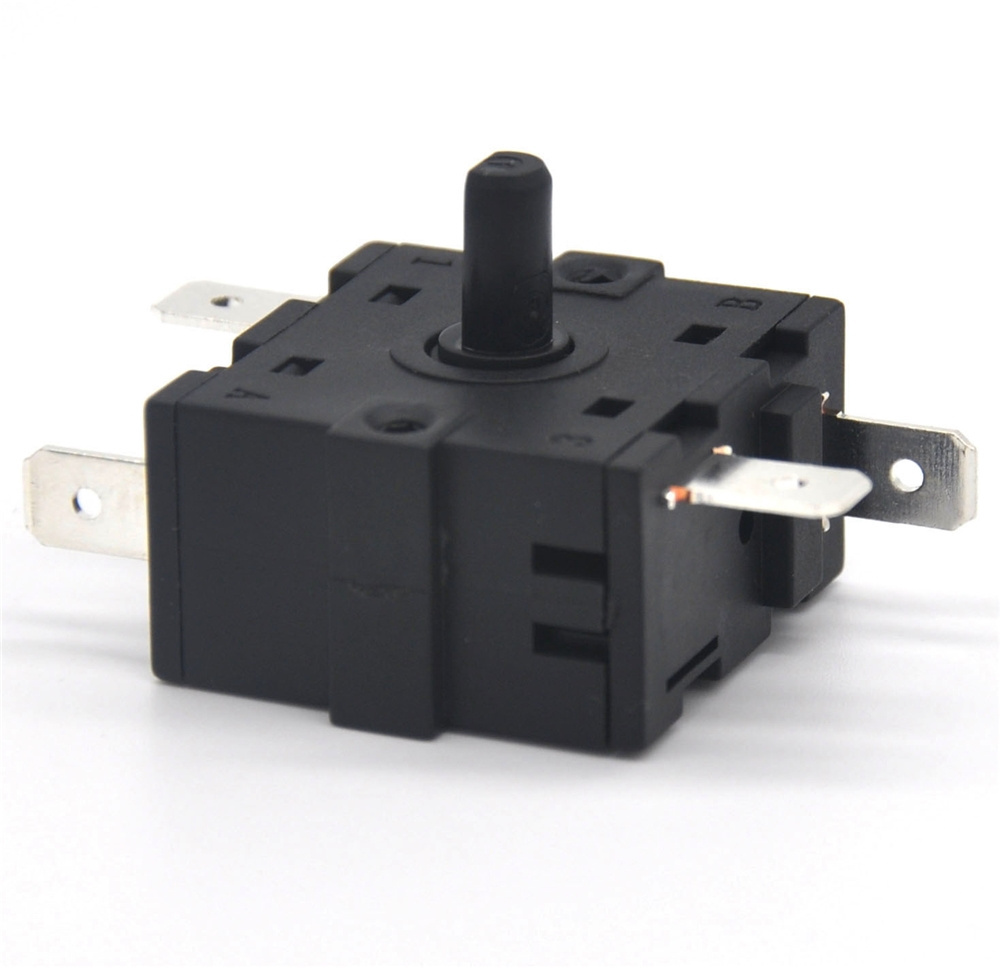

Picture details :
-----------------------------------------------------------------------------------------------------------------------------------------------------
PICTURE & DRAWING
TECHNICAL DATA
| ITEMS | Rotary Switch details |
| Plastic Material | PA66 |
| Contacts Material | Copper with compound silver |
| Rating | 16(8A) 250VAC 5E4 T105 |
| Room termperature up to | 100℃ |
| Flammability | 94V2 |
| Heat and fire resistance | GWFI 850℃ on demand |
| Contact gap | ≥ 3 mm |
| Electrical Life | >50000 Cycles |
| Mechanical Life | >10000 Cycles |
| Reference standards | EN61058-1 |
| Approval marks | VDE TUV ENEC CE RoHS REACH |
