Quick Details
-
Brand Name:
-
KEXIN
-
Model Number:
-
B/R/S/W, KB-602; KS-602; KR-602; KW-602;604
-
Material:
-
other
-
Type:
-
other
-
Product name:
-

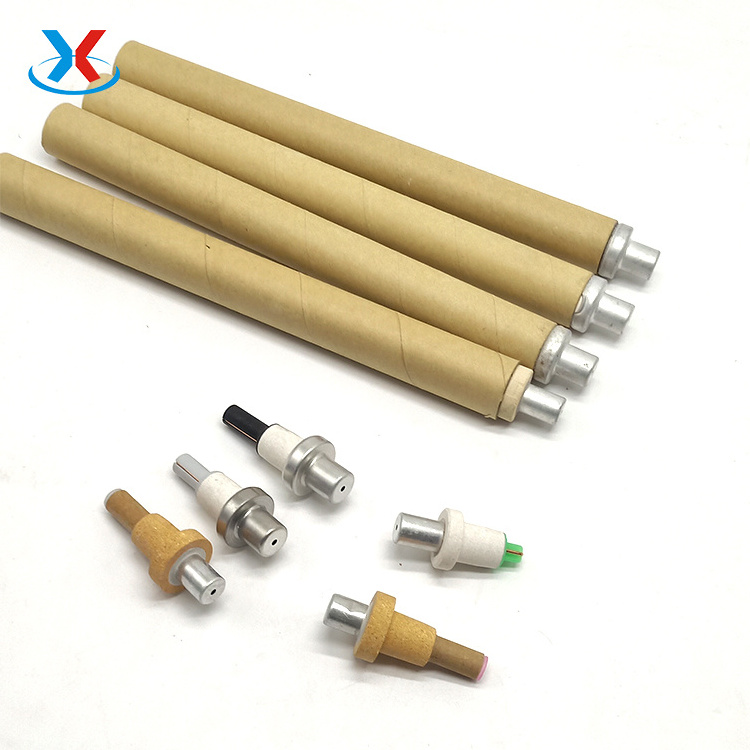

Lightweight Structure Fast Response K Type Thermocouple
-
Response time:
-
4-6s
-
Temperature range:
-
1500-1700℃
-
Usage:
-
Industrial
-
Accuracy:
-
±5℃
-
Application:
-
To measure the temperature of hot molten metal
-
Brand name:
-
Kexin
-
Wires:
-
Platinum rhodium
Quick Details
-
Warranty:
-
None
-
Theory:
-
Temperature controller, Pressure Thermometer, Temperature Sensor, Temperature Recorder
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
KEXIN
-
Model Number:
-
B/R/S/W, KB-602; KS-602; KR-602; KW-602;604
-
Material:
-
other
-
Type:
-
other
-
Product name:
-
Lightweight Structure Fast Response K Type Thermocouple
-
Response time:
-
4-6s
-
Temperature range:
-
1500-1700℃
-
Usage:
-
Industrial
-
Accuracy:
-
±5℃
-
Application:
-
To measure the temperature of hot molten metal
-
Brand name:
-
Kexin
-
Wires:
-
Platinum rhodium
|
Name
|
Type
|
Model
|
The best
|
Max
|
Accuracy
|
Wire diameter(mm)
|
|
PtRh10%/Pt
|
S
|
KS-602/604
|
1500-1700
|
1750℃
|
≤±5℃
|
0.05
|
|
PtRh13%/Pt
|
R
|
KR-602/604
|
1400-1600
|
1750℃
|
≤±5℃
|
0.05
|
|
PtRh30%/PtRh6%
|
B
|
KB-602/604
|
1400-1600
|
1800℃
|
≤±5℃
|
0.05
|
|
WRe5%-WRe26%
|
C
|
KC(KW5/26)602/604
|
1500-1700
|
1800℃
|
≤±7℃
|
0.08
|
|
WRe3%-WRe25%
|
D
|
KD(KW3/25)602/604
|
1500-1700
|
1800℃
|
≤±7℃
|
0.08
|
Instructions
1. According to the object and range of measurement, choose the appropriate protection of the length of the paper tube and the applicable temperature gun.
2. Mount the fast thermocouple on the temperature gun and measure.
3. The fast thermocouple is inserted into the molten iron. When measuring, do not measure the wall or the slag. Do: Fast, steady and accurate. When the meter gets the result, the gun should be taken immediately.
After the temperature gun is lifted from the furnace, remove the used thermocouple and install a new one.
1. According to the object and range of measurement, choose the appropriate protection of the length of the paper tube and the applicable temperature gun.
2. Mount the fast thermocouple on the temperature gun and measure.
3. The fast thermocouple is inserted into the molten iron. When measuring, do not measure the wall or the slag. Do: Fast, steady and accurate. When the meter gets the result, the gun should be taken immediately.
After the temperature gun is lifted from the furnace, remove the used thermocouple and install a new one.
