- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
chisung
-
Model Number:
-
G202 4G
-
Product Name:
-
Gsm 4G Gate Opener G202 Remote Control Single Relay Switch
-
Keyword:
-
Gsm 4G Gate Opener
-
Type:
-
Accessories
-
DC Power:
-
DC9V~30V/1A
-
Relay Time:
-
Max.0s~9.5 s
-
Power consumption:
-
Max.50mA/Average25mA
-
Dimension:
-
96.5*50*31.5mm
-
User:
-
200
-
Wired Switch:
-
Supports
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
chisung
-
Model Number:
-
G202 4G
-
Product Name:
-
Gsm 4G Gate Opener G202 Remote Control Single Relay Switch
-
Keyword:
-
Gsm 4G Gate Opener
-
Type:
-
Accessories
-
DC Power:
-
DC9V~30V/1A
-
Relay Time:
-
Max.0s~9.5 s
-
Power consumption:
-
Max.50mA/Average25mA
-
Dimension:
-
96.5*50*31.5mm
-
User:
-
200
-
Wired Switch:
-
Supports
Product Description
Introduction & Parameter
G202 could be well integrated with most of the electronic locks,gate motors,gate operators.The users could dialthe SIM
cardnumberto open thedoor,and no phone charges, no distance limits,no keyfobs,more convenient and friendly thananyother solutions
in current market.
G202 could be well integrated with most of the electronic locks,gate motors,gate operators.The users could dialthe SIM
cardnumberto open thedoor,and no phone charges, no distance limits,no keyfobs,more convenient and friendly thananyother solutions
in current market.
|
Model Number
|
G202
|
|
Product Name
|
Gsm 4G Gate Opener G202 Remote Control Single Relay Switch
|
|
Application
|
Outdoor, Courtyard
|
|
Keyword
|
Gsm 3G Gate Opener
|
|
Type
|
Accessories
|
|
DC Power
|
DC9V~30V/1A
|
|
Relay Time
|
Max.0s~9.5 s
|
|
Power consumption
|
Max.50mA/Average25mA
|
|
Dimension
|
96.5*50*31.5mm
|
|
GSM Frequency
|
GSM: Quad-band 850/900/1800/1900MHz
|
|
DC Power
|
DC9V– 30V/1A
|
|
Power consumption
|
Max.50mA/Average25mA
|
|
SIM Card
|
Nanotype,3V
|
|
Antenna
|
50ΩSMA
|
|
Relay Specification
|
3A/250VAC|20A/14VDC
|
|
Relay Type
|
NO/NC
|
|
Relay Time
|
Max. 0s -9.5 s
|
|
Users
|
200
|
|
Wired Switch
|
Supports
|
|
Operating Temp
|
-10℃~ + 60℃
|
|
Relative Humidity
|
10% ~90%( RH)
|
|
Dimension
|
96.5×50×31.5mm
|
|
Net Weight
|
88g
|

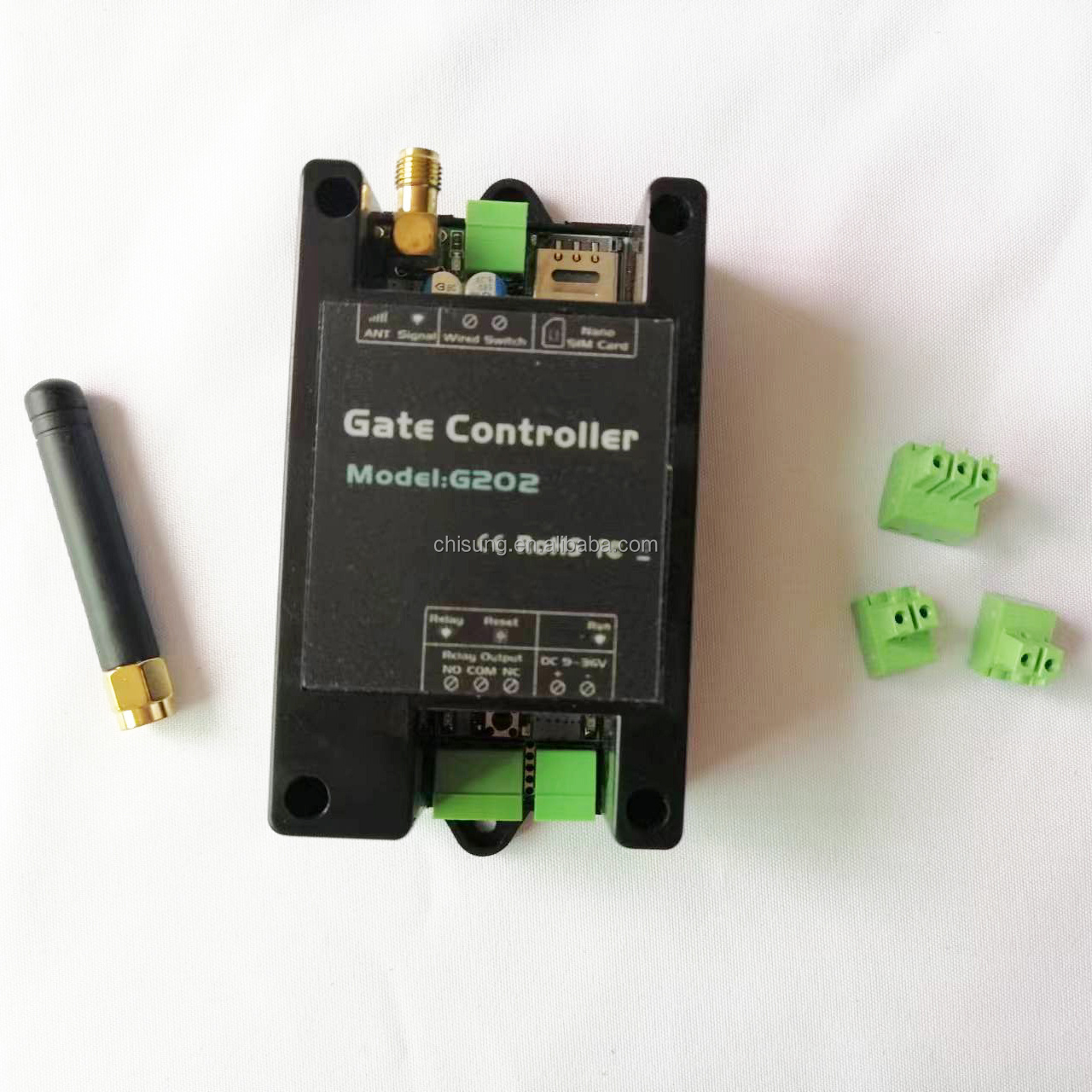

Product Display
Packing List
1).The Device *1pcs
2).TheAntenna *1 pcs
3).The Wiring Terminal * 3pcs
4).The Quick Guide Brochure * 1pcs
Notice:The package is WITHOUT Power Adapter and Push Button.The default device only supports GSM.
2).TheAntenna *1 pcs
3).The Wiring Terminal * 3pcs
4).The Quick Guide Brochure * 1pcs
Notice:The package is WITHOUT Power Adapter and Push Button.The default device only supports GSM.
