Quick Details
-
Application:
-
Courtyard
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tegood
-
Model Number:
-
PLUS LDD125LS
-
Frame material:
-
UPVC
-
Wall thickness:
-
2.0mm
-
Frame thickness:
-
125mm
-
Surface treatment:
-
Power Coating And Film
-
Sealing System:
-
2 EPDM
-
Glass:
-
6GLow-e+12A+6G
-
Color:
-
Customization
-
Hardware:
-
300kg lifting and sliding hardware bearing
-
After-sales service:
-
More than 10 years
-
MOQ:
-
1set
Quick Details
-
Door Material:
-
Glass
-
Feature:
-
Windproof
-
Main Material:
-
PVC
-
Application:
-
Courtyard
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tegood
-
Model Number:
-
PLUS LDD125LS
-
Frame material:
-
UPVC
-
Wall thickness:
-
2.0mm
-
Frame thickness:
-
125mm
-
Surface treatment:
-
Power Coating And Film
-
Sealing System:
-
2 EPDM
-
Glass:
-
6GLow-e+12A+6G
-
Color:
-
Customization
-
Hardware:
-
300kg lifting and sliding hardware bearing
-
After-sales service:
-
More than 10 years
-
MOQ:
-
1set

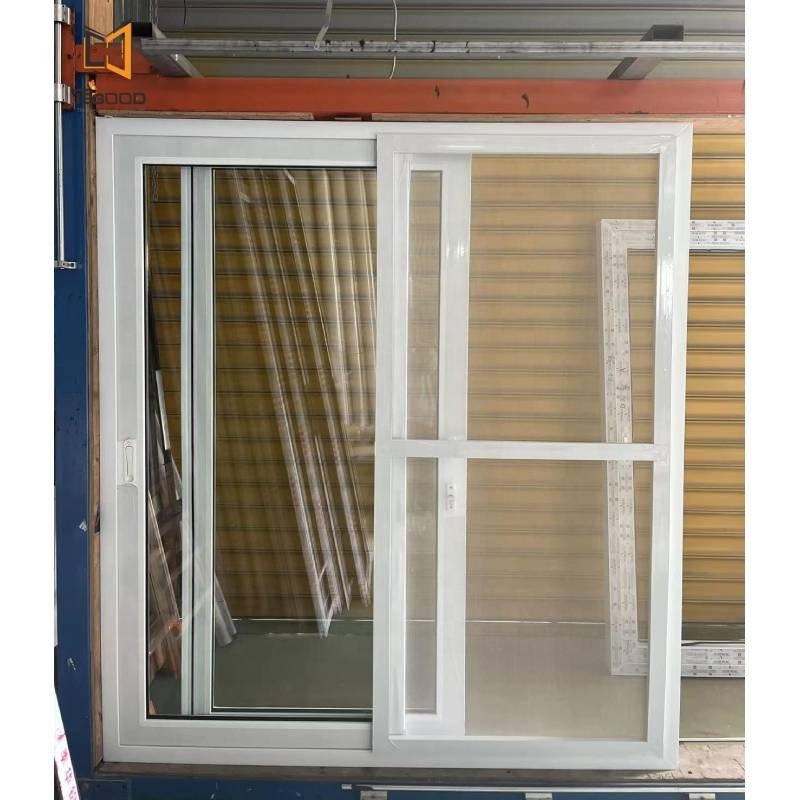

Sliding Door Design 1
After the customer provides the window and door size, opening method and other requirements, then we make the drawings accordingly.
Sliding Door Design 2
Show the window and door drawings to customer for approval, then start production.
Energy Efficient Windows & Doors
U value≤0.8 W/（㎡·K）/ U-factor≤0.14
PRO PWV82M is based on the PWV70M system window, by optimizing the profile system and increasing the chamber to improve itsthermal insulation performance. It is one of the best insulated windows in the world.
•
The profile adopts high-performance PVC profile, the surface can be co-extruded or coated two processes, to achieve the appearance of diversity.
• Section wall thickness ≥3.0 mm, exceed international a class requirement, welding angle strength can increase 15-20% , load bending and torsion strength can increase 10-12% .
• Profile internal 7 cavity design and filled insulation materials, significantly improve the thermal insulation performance of the frame.
• Standard European Standard Notch, suitable for all kinds of European standard hardware, can realize a variety of opening.
• Special screw positioning design, so that the screw in the profile of the connection drawing force increased by 15-20% .
• Special Welding Glue Bar to ensure the sealing performance of windows.
• The maximum thickness of glass can be 45mm.
• Renolit Film: The normal service life is more than 20 years outdoors.
Performance parameter：Uw≤0.8 W/（㎡·K）for passive house windows and windows
• Section wall thickness ≥3.0 mm, exceed international a class requirement, welding angle strength can increase 15-20% , load bending and torsion strength can increase 10-12% .
• Profile internal 7 cavity design and filled insulation materials, significantly improve the thermal insulation performance of the frame.
• Standard European Standard Notch, suitable for all kinds of European standard hardware, can realize a variety of opening.
• Special screw positioning design, so that the screw in the profile of the connection drawing force increased by 15-20% .
• Special Welding Glue Bar to ensure the sealing performance of windows.
• The maximum thickness of glass can be 45mm.
• Renolit Film: The normal service life is more than 20 years outdoors.
Performance parameter：Uw≤0.8 W/（㎡·K）for passive house windows and windows
1.
Three EPDM strips are sealed to improve the overall airtightness of the window.
2.
It’s equipped with triple-glass double hollow Low-E tempered glass, which improves the thermal insulation performance of doors and windows, and saves energy by 40-50% compared with ordinary glass.
3.
The width of PA66+GF25 insulation strip is 35.3mm, which can effectively improve the thermal insulation performance of doors and windows.
4.
Renolit Film: The normal service life is more than 20 years outdoors. (Optional)
SST solar thermal shielding technology reduces the internal temperature of the profile. 50μm polyacrylate, resists 99%
ultraviolet rays, improves the anti-ultraviolet ability of the profile, prolongs the service life, and is tested for 12,000
hours of aging resistance (xenon lamp).
5.
Soundproofing class: 35dB
German Brand / China Top Brand
Zinc/Aluminum/Stainless Steel/Brass
Over 10 Years Warranty
Advanced structural design, German hardware
What is RENOLIT film
① PMMA film
The unique SST solar thermal shielding technology reduces the influence of sunlight and heat on the profile surface, reduces the temperature of the profile, so as to ensure that the profile is not deformed even under strong light, and ensure the air tightness of the window.
② Printing ink
Rich color, texture realistic.
③PVC base
The exterior facade has strong resistance to color decay and does not fade or fall off. Easy to clean, as clean as new.
④PUR adhesive bottom layer
The solidification process is irreversible, the solidification strength is high, and the water resistance is good
* Surface materials imported from Germany;
* Real wood grain styles can be selected to save precious wood resources by means of science and technology;
* Surface weather resistance, acid resistance, aging resistance, corrosion resistance, wear resistance, pollution resistance easy to clean;
* In the outdoor normal service life of more than 20 years;
* SST solar thermal shielding technology, reduce the internal temperature of profiles;
* 50μm polyacrylate, resist 99% uv, improve the uv resistance of profiles, prolong the service life, 12000 hours of aging
resistance (xenon lamp) detection.
The unique SST solar thermal shielding technology reduces the influence of sunlight and heat on the profile surface, reduces the temperature of the profile, so as to ensure that the profile is not deformed even under strong light, and ensure the air tightness of the window.
② Printing ink
Rich color, texture realistic.
③PVC base
The exterior facade has strong resistance to color decay and does not fade or fall off. Easy to clean, as clean as new.
④PUR adhesive bottom layer
The solidification process is irreversible, the solidification strength is high, and the water resistance is good
* Surface materials imported from Germany;
* Real wood grain styles can be selected to save precious wood resources by means of science and technology;
* Surface weather resistance, acid resistance, aging resistance, corrosion resistance, wear resistance, pollution resistance easy to clean;
* In the outdoor normal service life of more than 20 years;
* SST solar thermal shielding technology, reduce the internal temperature of profiles;
* 50μm polyacrylate, resist 99% uv, improve the uv resistance of profiles, prolong the service life, 12000 hours of aging
resistance (xenon lamp) detection.
Cases
Specification
|
Product Type
|
UPVC Tilt and Turn Windows / Lifting and sliding doors / Fixed Windows
|
|
Profile thickness
|
UPVC 82mm
|
|
Cavity design
|
7 cavity, *Heat insulation performance is more excellent
|
|
Sealing System
|
3 EPDM
|
|
Insulation strip material
|
PA66+GF25
|
|
Glass type
|
6GLow-e+12Ar+6G+12Ar+6GLow-e
|
|
Glass thickness
|
30/36mm/45mm
|
|
Color
|
Customization
|
|
Hardware
|
German hardware--GU
|
|
Water Tightness
|
Level 6
|
|
Air Tightness
|
Level 8
|
|
Wind Resistance
|
Level 6
|
|
Heat preservation
|
Less than 0.8w/m².k
|
|
Sound Insulation
|
38db
|
German CNC Machines
German CNC machines
More efficient
Profile sawing
More accurate
Drilling
Perfect tolerance
