Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SH
-
Model Number:
-
152
-
Product name:
-
PU Sandwich Panel
-
Core material:
-
Hard Polyurethane Foam
-
Material:
-
Galvanzied Steel
-
Advantage:
-
Fireproof
-
Thickness:
-
50-200mm
-
Surface material:
-
Alu-Zn Galvanized Sheet
-
Keyword:
-
Polystyrene Foam EPS Sandwich Panel
-
Function:
-
Sound-absorbing Decoration Wall
-
Features:
-
Easy Operation
Quick Details
-
Project Solution Capability:
-
graphic design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Warehouse
-
Design Style:
-
Mediterranean
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SH
-
Model Number:
-
152
-
Product name:
-
PU Sandwich Panel
-
Core material:
-
Hard Polyurethane Foam
-
Material:
-
Galvanzied Steel
-
Advantage:
-
Fireproof
-
Thickness:
-
50-200mm
-
Surface material:
-
Alu-Zn Galvanized Sheet
-
Keyword:
-
Polystyrene Foam EPS Sandwich Panel
-
Function:
-
Sound-absorbing Decoration Wall
-
Features:
-
Easy Operation

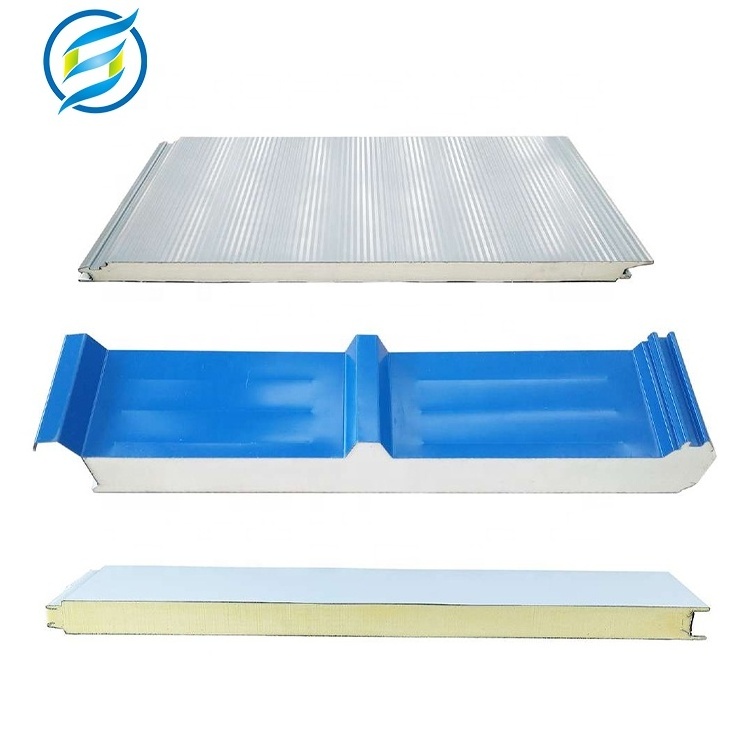

Fire insulation pu sandwich panel product line foam wood sound proof wall panels
Product Details
Polyurethane insulation boards are made of polyurethane as the main raw material, which has a stable porosity structure and is basically a closed-cell structure, which not only has excellent insulation properties, but also resists freezing and thawing, has good sound absorption, and has a particularly good waterproof and moisture-proof effect.
|
Parameter Description
|
|
|
|
Product Name
|
polyurethane sandwich panel
|
|
|
Surface density（core material）
|
42kg/m³
|
|
|
Compressive strength（core material）
|
295kpa
|
|
|
Water absorption
|
0.8%
|
|
|
Vertical tensile strength（siding）
|
1.6kpa
|
|
|
High temperature resistance(steel sheet)
|
600℃
|
|
|
Percentage of close area(core material)
|
99.70%
|
|
|
Al-Zn coating content
|
55-57g/㎡(55%aluminum,43% zinc)
|
|
Fire prevention
We can verify the fire resistance of polyurethane with a simple experiment. Burning the core with a gun will show that the surface will burn black and will not extend the spread of the fire, blocking the flame
Waterproof
If you pour water into the core material, you will find that it will not penetrate, because the closed porosity of polyurethane is over 90%, it is a water-repellent material, which can prevent moisture and water, and will not increase the thermal conductivity due to moisture absorption, and the wall will not seep.
product application
Product performance:
heat preservation and insulation, water insulation and sound insulation, waterproof and flame retardant
Product features:
aging resistance, high density, high temperature resistance +150℃, low temperature resistance -40℃
|
Parameter Description
|
|
|
|
|||
|
Panel name
|
Wall roof panel
|
|
|
|||
|
Effective coverage
|
400-1000mm
|
|
|
|||
|
Steel thickness
|
0.4-0.7
|
|
|
|||
|
Regular colors
|
White gray, crimson, sea blue, iron gray, etc.
|
|
|
|||
|
Recommended coating
|
Fluorocarbon coating PVDF, SMP coating, HDP coating, polyester PE coating, etc.
|
|
|
|||
|
Core thickness
|
50, 60, 75, 80, 100, etc.
|
|
|
|||
|
Core material name
|
Polyurethane
|
Polyurethane edge sealing glass wool
|
Polyurethane edge rock wool
|
|||
|
Thermal Conductivity
|
0.019-0.024w/m ·k
|
0.035-0.041w/m ·k
|
0.037-0.043w/m.k
|
|||
We have a wide range of colors and specifications for customers to choose from, and we can also customize according to your requirements.
Product Use
Sandwich panels are used in a wide range of applications, including hospital operating theatres, clean rooms, food processing workshops, cold storage rooms, etc.
Our Factory
Shandong Shanghe Economic and Trade Co., Ltd. is a company with modern plants, advanced technology and professional technical staff.
