Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DRF
-
Voltage:
-
220V/240V/380V/400V/415V/440V
-
Dimension(L*W*H):
-
2150x1660x2550mm
-
Weight (KG):
-
2500 kg
-
Name:
-
QT4-24 semi automatic paver block making machine
-
Forming cycle:
-
25-40s
-
Pcs/mould:
-
4pcs for 400x200x200 hollow blocks
-
Power:
-
12.7kw
-
Weight:
-
2300kgs
-
Pallet size:
-
880x480mm
-
After Warranty Service:
-
Field maintenance and repair service
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Keywords:
-
QT4-26 china block factory brick making machine
-
Block Type:
-
Hollow Paver Solid Interlock Blocks
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Sand, Crushed stone, fly ash, cement and so on
-
Production Capacity (Pieces/8 hours):
-
3400 pcs/8hours, 3000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 2880pcs/8hour
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DRF
-
Voltage:
-
220V/240V/380V/400V/415V/440V
-
Dimension(L*W*H):
-
2150x1660x2550mm
-
Weight (KG):
-
2500 kg
-
Name:
-
QT4-24 semi automatic paver block making machine
-
Forming cycle:
-
25-40s
-
Pcs/mould:
-
4pcs for 400x200x200 hollow blocks
-
Power:
-
12.7kw
-
Weight:
-
2300kgs
-
Pallet size:
-
880x480mm
-
After Warranty Service:
-
Field maintenance and repair service
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Keywords:
-
QT4-26 china block factory brick making machine
-
Block Type:
-
Hollow Paver Solid Interlock Blocks

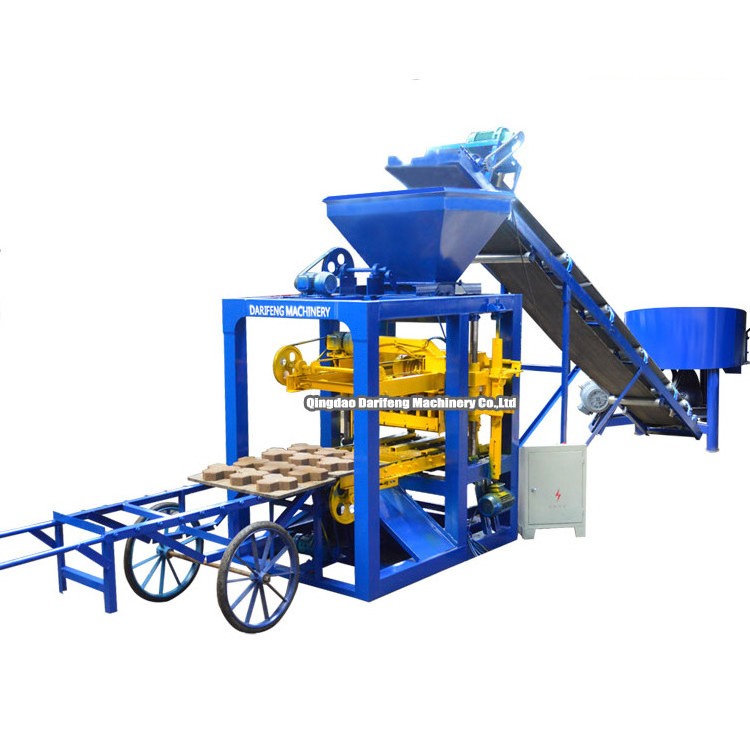

QT4-26 semi automatic concrete cement hollow solid paver block making machine is one of our sell best machine model, it is manual type machine, suitable for making all types of hollow blocks, solid block, pavers, curbstones and so on. This machine equiped a larger reducer, its key rotary parts are changed into bearings, thickened square steel frame is used and wear resisting material is adopted for its inside sleeves for directional positioning for four guiding columns so that the service life of this machine can be largely prolonged. With the durable quality, stable running, easy operation and cheaper price attract many customers to buy it.
|
Technical Specifications
|
|
|
|
Model
|
QT4-24
|
|
|
Forming cycle
|
25-40s
|
|
|
Pcs/mould
|
4 pcs for 400x200x200mm hollow block
|
|
|
Vibrating frequency
|
2800-4500r/minute
|
|
|
Power
|
12.7KW
|
|
|
Pallet size
|
880x480mm
|
|
|
Dimension
|
2150x1660x2550mm
|
|
|
Weight
|
3000kg
|
|
|
Brick material
|
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes, and so on.
|
|
|
Applied product
|
Hollow block, solid blocks, paving blocks, Curbstone, Slabs, Hourdis blocks, interlocking blocks and so on.
|
|
Darifeng Machinery- Profession achieves success
Qingdao Darifeng Machinery Co.,Ltd founded in 1985, is one of the biggest block & brick machine manufacturer in China, our company located in Qingdao City and Linyi City, Shandong Province, covers an area of 126,000 square meters, with 400 staffs, including medium and high-level professionals 100 staffs.
We are a high-tech enterprise, integrating science, industry and export for block & brick machine with our brand more than 30 varieties. Now we have built more than 20000 block production line in China and we also have exported block & brick machine to more than 100 countries, like Philippines, India, Bangladesh, Indonesia, Kazakhstan, Uzbekistan, Nepal, Yemen, Oman, Palestine, Armenia, Sudan, South Africa, Uganda, Mozambique, Tanzania, Ghana, Zimbabwe, Congo, Peru, Colombia, Chile, Paraguay, Bolivia Mexico etc, and have won great fame and popularity.
Our company not only provides customers with various brick and block making machine, but also provides services including process design, workshop design and factory design. In addition, we have a professional engineer team to offer the best after-sales services, such as training workers, imparting technical instruction and fixing problems, we provide all ofour customers 2 year's warranty. We always want to be the best in our industry because we clearly know that only the completely perfect quality and service are the best. Anyway, choosing to cooperate with us is really your wise choice. We are looking forward to cooperating with you.
Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within two year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user’s needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new glory to you.
