Quick Details
-
Voltage:
-
380V / as client's demand
-
Dimension(L*W*H):
-
650*600*600MM
-
Weight:
-
140 KG
-
Product name:
-
vibrating sieving machine
-
Keyword:
-
round vibratory screen
-
Layer:
-
1-3 layers
-
Color:
-
customized
-
Screen size:
-
2 - 500 mesh
-
Motor:
-
Vertical Vibrating Motor
-
Surface treatment:
-
Mirror Polishing
-
Function:
-
Screening\separation\sorting\sieving
-
Diameter:
-
600-1500MM
-
Customized:
-
Acceptable
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DY
-
Voltage:
-
380V / as client's demand
-
Dimension(L*W*H):
-
650*600*600MM
-
Weight:
-
140 KG
-
Product name:
-
vibrating sieving machine
-
Keyword:
-
round vibratory screen
-
Layer:
-
1-3 layers
-
Color:
-
customized
-
Screen size:
-
2 - 500 mesh
-
Motor:
-
Vertical Vibrating Motor
-
Surface treatment:
-
Mirror Polishing
-
Function:
-
Screening\separation\sorting\sieving
-
Diameter:
-
600-1500MM
-
Customized:
-
Acceptable
Dayong Machinery
16+ Years specializing in providing Top quality Machinery for you
Always on the way to do better

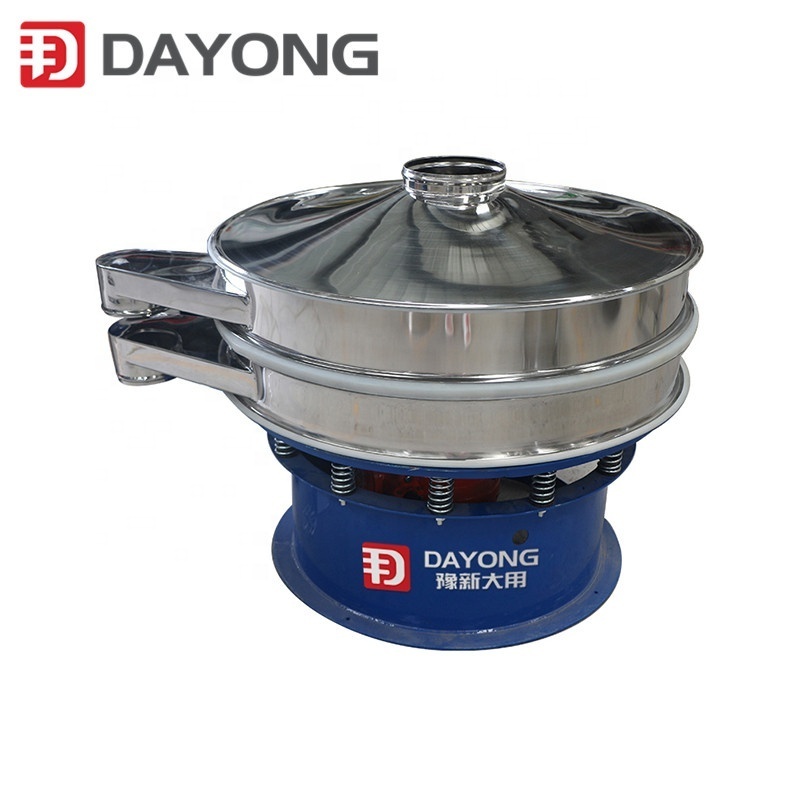

small diameter vibrating screen to clean pollen from lavender
Product Description
The machine consists of vertical vibration motor, screen base, mesh frame, screening chamber and rubber vibration ring and so on. The vibrating ball on mesh bracket flaps the mesh continuously so that the screen is not easy to be blocked. This machine can be used either for single layer or multi layers grading.
Round rotary vibro screen has a vertical motor system, with eccentric hammers being installed on top and bottom of the motor, where the vibration motor acts as the vibratory source.The direction of the eccentric hammers may change its rotational mode either in horizontal,vertical and inclined movement into the sieving surface, reaching the purpose of screening, grading, removing impurities anf filtration.
Main Features
1. Excellent screening precision, and the blocking rate of the screen is less than 10% in average.
2. The movement locus and vibration amplitude are both adjustable. Any granular, powdery and serous materials could be roughly screened, or just filtered according to the material applications.
3. The screening machine is 600-2000 mm in diameter, and the overall size is quite small. Wheels can be mounted on it for convenient moving.
4. Specially designed screen frame. It takes only 5-10 min for the screen changing. The stainless steel wire woven net is easy to clean and operate, while the life span is quite long.
Product Application
1. Chemical industry: resin pigment, medicine, grease, fire-extinguishing agent, rubber and plastic.
2. Grinding material, glass, ceramic industry: silica sand, alumina, grinding material, glass powder, refractory material.
3. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, bean milk, yeasts must, pollen, food additive.
4. Paper-making industry: whitish soil slush, black and white fluid, filling fluid, waste fluid and paper-making fluid.
5. Mine industry: quartz sand, ore, titanium oxide, zinc oxide.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder.
7. Others: carbon black, light calcium, additive, pearl powder, catalyst.
What industry are you in ?
Dayong help you choose the suitable machine
Your output benifit > Your input investment
Design & production
Professional design teamEngineer provide suitable design Provide the best solutions before production 100% personal production |
Design the tailored-made solution for your real needs
|
Strict inspection principle
|
Strict inspection procedure
|
Remark: 24 hour operation test pre delivery
|
Model |
Motor power |
Inside diameter |
Dimension |
Layer |
|
DY-600-1S DY-600-2S DY-600-3S |
0.35kw |
550mm |
800*800*680
800*800*780
800*800*880
|
1 2 3 |
|
DY-800-1S DY-800-2S
DY-800-3S
|
0.55 kw |
750mm |
900*900*780 900*900*930 900*900*1080 |
1 2 3 |
|
DY-1000-1S DY-1000-2S
DY-1000-3S
|
0.75 kw |
950mm |
1160*1160*880 1160*1160*1030 1160*1160*1180 |
1 2 3 |
|
DY-1200-1S DY-1200-2S
DY-1200-3S
|
1.5 kw |
1150 mm |
1360*1360*980 1360*1360*1160 1360*1360*1360 |
1 2 3 |
|
DY-1500-1S DY-1500-2S DY-1500-3S |
1.75kw |
1450mm |
1850*1850*1130 1850*1850*1330 1850*1850*1550 |
1 2 3 |
|
DY-1800-1S DY-1800-2S DY-1800-3S |
2.2kw |
1750mm |
2200*2200*1360 2200*2200*1460 2200*2200*1680 |
1 2 3 |
To choose the suitable model, please tell us:
- Name and feature of the raw material?
- Aim of using the machine: get rid of impurity, filtration, grading
- Handling capacity: kg /h, L/h
- The raw material size: (mesh or mm)
- How many final materials you want, or how many layer you need?
Note: You had better send us the relevant pictures about the details.
|
Pre-Sales Service
|
After-Sales Service
|
Not only Sell Machines, But also Build Solutions.
- Design the equipment according to your technical request.
- Providing solutions according to the real situation.
- If needed, relevant technical documents would be available.
- Payment terms is flexible.
- Delivery on time
- Warranty: 18 months.
