Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sealine Power or OEM
-
Dimension(L*W*H):
-
510*500*590mm
-
Weight:
-
60
-
Rated power/speed:
-
13HP/3600rpm
-
Color:
-
Yellow/Black/Red/Green/Others
-
Output Shaft Type:
-
Keyway shaft/Thread shaft/Taper shaft/Spline shaft
-
Speed(rpm):
-
3000/3600rpm
-
Rated Power:
-
13HP
-
Fuel Oil Tank Volume:
-
2.5L
-
OEM:
-
Yes
-
After-sales Service Provided:
-
Overseas third-party support available
-
Type:
-
4-storkes
-
Starting system:
-
Electric Starter
Quick Details
-
Displacement:
-
660cc, 660
-
Emission Standard:
-
Other
-
Power:
-
9.5KW, 16HP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sealine Power or OEM
-
Dimension(L*W*H):
-
510*500*590mm
-
Weight:
-
60
-
Rated power/speed:
-
13HP/3600rpm
-
Color:
-
Yellow/Black/Red/Green/Others
-
Output Shaft Type:
-
Keyway shaft/Thread shaft/Taper shaft/Spline shaft
-
Speed(rpm):
-
3000/3600rpm
-
Rated Power:
-
13HP
-
Fuel Oil Tank Volume:
-
2.5L
-
OEM:
-
Yes
-
After-sales Service Provided:
-
Overseas third-party support available
-
Type:
-
4-storkes
-
Starting system:
-
Electric Starter
Products Description
|
CHANGZHOU SEALINE POWER COMPANY GENERATION CO.,LTD
|
|
|
|
|
||||
|
Contact person: May Jiang
Email：sales2@sealinepower.com
Tel:0086-13372286908 Wechat&Whatsapp: 008613372286908
|
|
|
|
|
||||
|

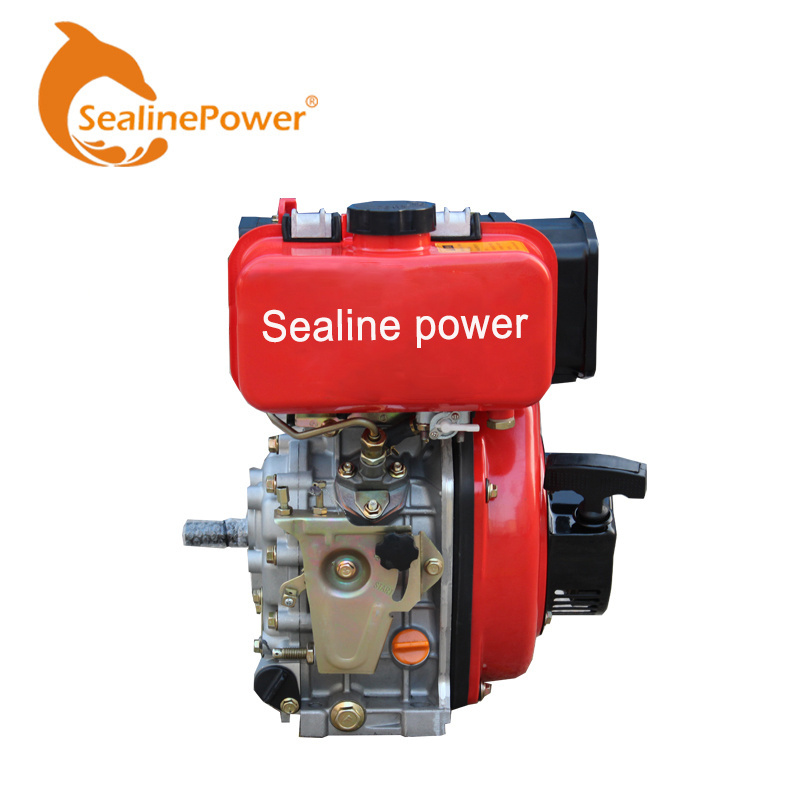

Air-Cooled Diesel Engine Series
|
|
|
|
|
||||
|
Model
|
SE1100F
|
|
Type
|
Single-cylinder,vertical,4-stroke air-cooled diesel engine
|
|
Combustion System
|
Direct Injection
|
|
Bore×Stroke(mm)
|
100x64
|
|
Displacement capacity(cc)
|
660
|
|
Speed(rpm)
|
3000/3600
|
|
Max.output(kw)
|
9.4/10
|
|
Rated output(kw)
|
8.5/9.4
|
|
Fuel
|
o# or-10# light diesel oil
|
|
Fuel oil tank volume(l)
|
2.5
|
|
Fuel oil consumption rate(g/kw.h)
|
260
|
|
Starting system
|
Electric
|
|
PTO rotation direction
|
It is clockwise as viewing from the flywheel end
|
|
Dimension(mm)
|
510x500x590
|
|
Net Gross weight(kg)
|
60/65
|
