Quick Details
-
Brand Name:
-
YUYE
-
Model Number:
-
YES1-NA
-
Rated Current:
-
400A
-
Frame current:
-
630
-
Certificate:
-
CCC
-
Color:
-
Blue
-
Rated current:
-
32A/125A/250A/400A
-
Material:
-
Copper
-
Name:
-
YUYE
-
Function:
-
power transfer
-
Product name:
-
YES1-NA
-
Rated voltage:
-
220v AC380V/660V
-
Feature:
-
Position
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
3
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUYE
-
Model Number:
-
YES1-NA
-
Rated Current:
-
400A
-
Frame current:
-
630
-
Certificate:
-
CCC
-
Color:
-
Blue
-
Rated current:
-
32A/125A/250A/400A
-
Material:
-
Copper
-
Name:
-
YUYE
-
Function:
-
power transfer
-
Product name:
-
YES1-NA
-
Rated voltage:
-
220v AC380V/660V
-
Feature:
-
Position
Product Description
Product Description

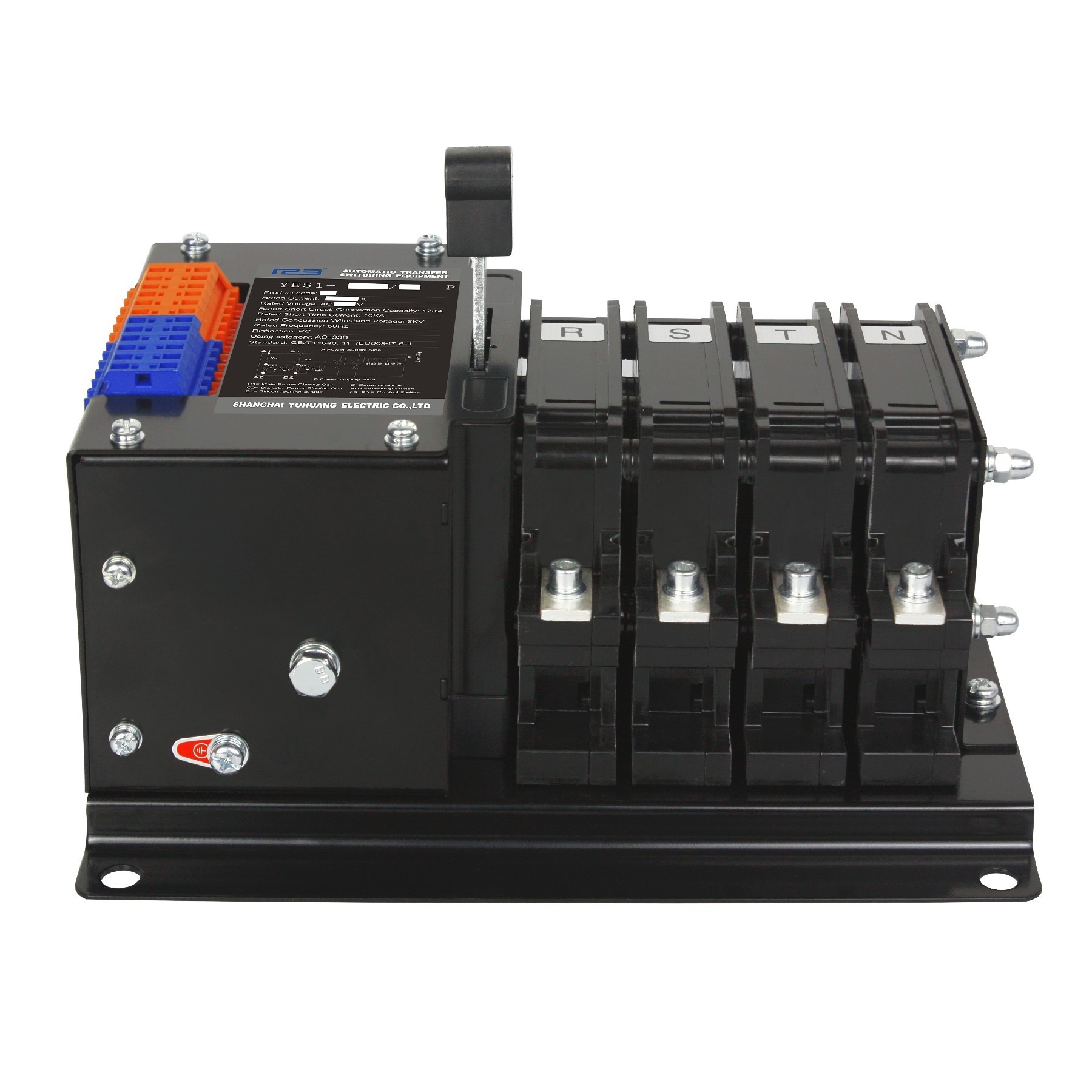

Dual-power Automatic Transfer Switch is divided into two parts,namely Special ATSE and Derived ATSE.The former could connect and bear load,but can't break short circuit current.Derived ATSE is divided into derived PC Class,CB Class and CC Class.Here derived PC Class will be introduced.
Our derived PC Class has many types including NA,N,C,M,Q,S,G and each type has all kinds of current ranks for you to choose.Derived PC Class takes load isolating switch as switch body and it also could connect and bear load,but can't break short circuit current.What's more,with the exception of GA type,other types have electromagnetic winding inside and are quite stable to use.The transfer time of PC Class is within 50ms .There are integral type with controller inside and split type with controller outside..Moreover,PC Class could make different voltage ,such as (120V/208V),(220V/380V) and so on.
Q uick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: YUYE
Model Number: YES1-NA
Max. Current: 400A
Rated working voltage: AC 220V/400V, 50Hz
Current Rank:32A,125A,250A,400A
Pole number: 2p( Below 125A ), 3p, 4p
Certification:CE,CCC
Application:
YES1 Series ATS are mainly used for the state of a load,widely applicable to the fire,postal communication,hospitals,hotels,Urban rail transport and high-rise buildings,industrial assembly line,television stations need electricity for the important parts,Main power Emergency Power can be power grids,with self-excitation generator sets,battery,and so on.
Detailed Images
Detailed Images
Our Company
Our Company
One Two Three Electric Co.,Ltd
is located in Yueqing--the center of china electrical equipment. 123 Company is one of the biggest manufactory--specialized in producing Automatic Transfer Switch, load break switch and Air circuit breaker, Moulded case circuit breaker, Miniature circuit breaker, protection and controller switch and so on. We have on import&export line around 10 yeas, during those 10 years we establish the business with more than 300 oversea clients with a stable high quality and competitive price. And we are the gold supplier of alibaba, and have aprroved the third party certification."Guarantee the superiority and reliability of our products and supply best service" is our purpose. Welcome to One Two Three company!!!
