Quick Details
-
Model Number:
-
HDPE Double wall Corrugated Pipe
-
Specification:
-
DN/ID200 200-800
-
Length:
-
6m or as requird
-
Thickness:
-
4.7-45.9mm
-
Standard:
-
GB/T19472.1-2004
-
Product name:
-
Factory Outlet HDPE PE Double Wall Corrugated Drainage Pipe
-
Specifications:
-
Nominal diameter DN/ID200 200-800
-
Performance Standards:
-
GB/T19472.1-2004
-
temperature:
-
-60℃~60℃
-
Shape:
-
corrugated
-
Color:
-
Black
-
Application:
-
Water Drainage
-
Connection:
-
Socket Fusion Joint
-
Size:
-
200-1000mm
-
Raw material:
-
hdpe
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JIASHANG
-
Model Number:
-
HDPE Double wall Corrugated Pipe
-
Specification:
-
DN/ID200 200-800
-
Length:
-
6m or as requird
-
Thickness:
-
4.7-45.9mm
-
Standard:
-
GB/T19472.1-2004
-
Product name:
-
Factory Outlet HDPE PE Double Wall Corrugated Drainage Pipe
-
Specifications:
-
Nominal diameter DN/ID200 200-800
-
Performance Standards:
-
GB/T19472.1-2004
-
temperature:
-
-60℃~60℃
-
Shape:
-
corrugated
-
Color:
-
Black
-
Application:
-
Water Drainage
-
Connection:
-
Socket Fusion Joint
-
Size:
-
200-1000mm
-
Raw material:
-
hdpe
factory direct sale double Wall Smooth Interior HDPE Plastic Corrugated 200mm Culvert Pipe for Drainage
|
Project
|
Requirement
|
|
|
|
Ring stiffness KN/m²
|
SN≥4KN/m²
|
SN≥8KN/m²
|
|
|
Impact property(TIR)/%
|
TIR≤10%
|
|
|
|
Ring flexibility
|
Smooth style, no reverse bending, no cracking,
no separation of the two walls |
|
|
|
Creep property
|
≤4
|
|
|
|
Oven test
|
No bubbles, no layers, no cracks
|
|
|
|
Seal test
|
Pressure 0.05MPa, constant temperature 15min,
no leakage, no fracture |
|
|
|
Specifications
|
|
|
|
|
|
|
||||||
|
Nominal diameter
DN/ID200 |
200
|
300
|
400
|
500
|
600
|
800
|
||||||
|
1Minimum mean
internal meridian Dim,min |
195
|
294
|
392
|
490
|
588
|
785
|
||||||
Features.
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).

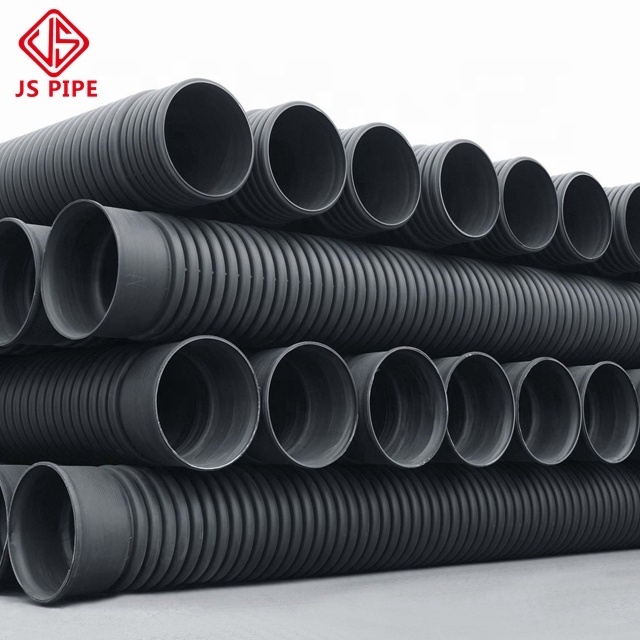

High Density Polyethylene (HDPE) Double Wall Corrugated Sewer and Drainage Pipes are for gravity and low pressure sewerage and
drainage such as waste water, sanitary sewer and storm sewerage for municipal or industrial use. The pipes provide important
benefits and distinct advantages for sewer and drainage applications.
Specification:
Size: DN200 to DN800.
Ring stiffness: SN4, SN8.
Connection: Socket with rubber ring.
Length: 6 Meters/piece.
Application:
> Sewer and drainage
> Frontage drains for terrace and other residential units in housing schemes
> Perimeter drains for commercial, industrial units and individual factories
> As collector drains in subsoil system in road, highway, open field, stadium, retaining wall or parking space
> As collector drains in subsoil system, sewerage treatment plant sludge drying bed under drains
The company's main products are: HDPE, PP-R, PVC-U, CPVC, MPP and other series, widely used in construction engineering, municipal engineering, agricultural irrigation and drainage, gas transportation, home improvement, power cable sheathing and other fields.
There are nearly 3,000 kinds of pipes, fittings and valve products of different varieties and specifications. Among them, the
production and sales of PE water supply pipes and HDPE drainage pipes are among the best in the industry..
At present, the company has more than 200 advanced production units at home and abroad, including 72 automatic pipe production lines, more than 40 computer-controlled injection molding machines, and more than 70 other auxiliary equipment. The annual production capacity of various series products reaches 200,000 tons.
