Quick Details
-
Description:
-
rf flange resistor
-
Resistance:
-
1~500ohm
-
Resistance Tolerance:
-
+-5%
-
Mounting holes on heating panel:
-
2, 4
-
Number of leading wires:
-
single/double
-
Operating Temperature:
-
-55℃~+125℃
-
Frequency:
-
0~2 GHZ
-
Material:
-
BeO and Cu
-
Type of company:
-
manufacturer
-
Usage:
-
communication device
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
BONENS
-
Model Number:
-
RIG
-
Description:
-
rf flange resistor
-
Resistance:
-
1~500ohm
-
Resistance Tolerance:
-
+-5%
-
Mounting holes on heating panel:
-
2, 4
-
Number of leading wires:
-
single/double
-
Operating Temperature:
-
-55℃~+125℃
-
Frequency:
-
0~2 GHZ
-
Material:
-
BeO and Cu
-
Type of company:
-
manufacturer
-
Usage:
-
communication device
Product Description

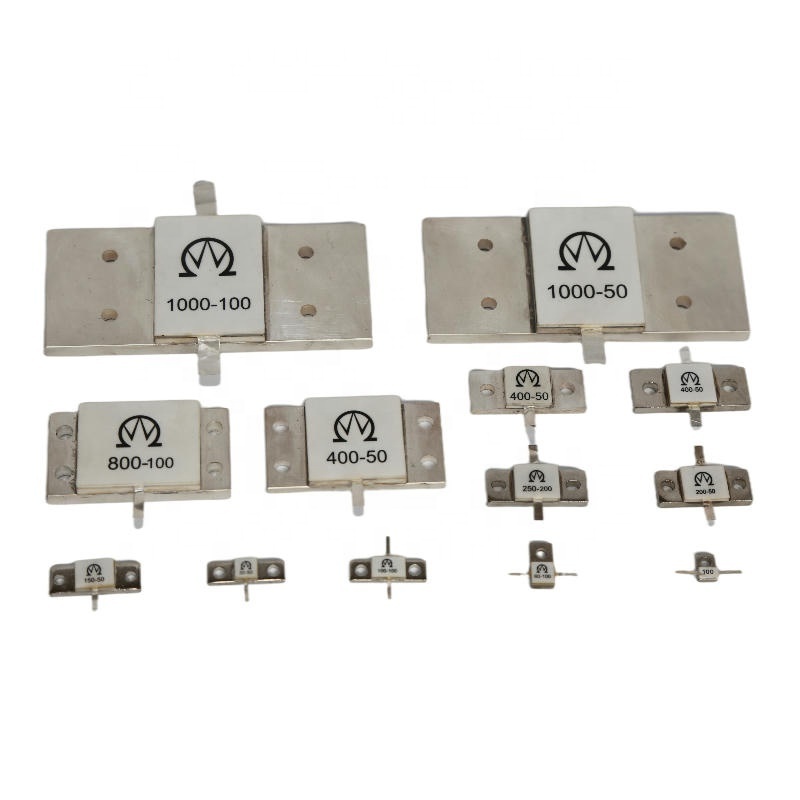

100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor picture
100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor drawing
All RF flange resistor can do with one terminal or Two terminals
100W one terminal resistor drawing
150W two terminals rf resistor drawing
250W 10ohm 50ohm two terminals rf resistor drawing
400W
10ohm 50ohm two terminals rf resistor drawing
500W 10ohm 50ohm one terminals rf resistor drawing
600w 10ohm 50ohm one terminals rf resistor drawing
800W 10ohm 50ohm two terminals rf resistor drawing
1000W 10ohm 50ohm One terminals rf resistor drawing
Specification
100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor Parameters
|
Electrical Characteristics
|
|
|
|
Range of nominal resistance
|
1 ~500Ω
|
|
|
Range of nominal resistance
|
±5%
|
|
|
Frequency range
|
0~2GHz
|
|
|
Standing wave ratio
|
1.2~1.3
|
|
|
Insulation resistance
|
≥ 1GΩ
|
|
|
Withstand voltage
|
500V/1 mm (Substrate thickness)
|
|
|
Environment Characteristics
|
|
|
|
Rated power
|
1~1200W (70°C)
|
|
|
Temperature range
|
-55°C~+165°C
|
|
|
TCR
|
±300×10-6/°C
|
|
|
Temperature shock (-55°C/+125°C, 3 times)
|
ΔR≤±5%R
|
|
|
Moisture proof (GJB306A-96-Method106)
|
ΔR≤±5%R
|
|
|
Vibration (10-500HZ, 0.75mm, 6h)
|
ΔR≤±3%R, No mechanical damage
|
|
|
Test at low temperature (-55°C, 24h)
|
ΔR≤±5%R
|
|
|
Load life (96)
|
ΔR≤±5%
|
|
|
Collision
|
ΔR≤±3%R
|
|
|
Physical Characteristics
|
|
|
|
Terminal strength(10N,5S)
|
No loose and fall off
|
|
|
Solderability(240℃,3s)
|
Tin layer covering area of 95%
|
|
