Quick Details
-
Model Number:
-
RCMB 4
-
type:
-
4-Scale Mud Balance, with Case, Model RC-140
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RG
-
Model Number:
-
RCMB 4
-
type:
-
4-Scale Mud Balance, with Case, Model RC-140
Products Description
4-Scale Mud Balance, Machined Arm, with Case
Constructed of premium metals for durability, accuracy and ease of use
The Model RCMB Series Mud Balance provides a simple, practical method for accurate determination of fluid density.
It is one of the most sensitive and accurate field instruments available for determining the density or weight-per-unit-volume
(specific gravity) of drilling fluids.
An outstanding advantage of this Mud Balance is that the temperature of the sample does not materially affect the accuracy of
readings. A high impact plastic case protects the balance during transport and provides a secure base in its working position.
The Model RCMB Series Mud Balance is constructed with an easy-to-read beam graduated into four scales:
· pounds per gallon
· specific gravity
The volume of space occupied by entrapped gas or air bubbles in a sample fluid may distort the accuracy of the fluid density
measurement. This distortion can be significantly reduced by pressurizing the fluid. The density of a fluid containing entrained
air or gas can be determined more accurately by using a pressurized fluid density balance.

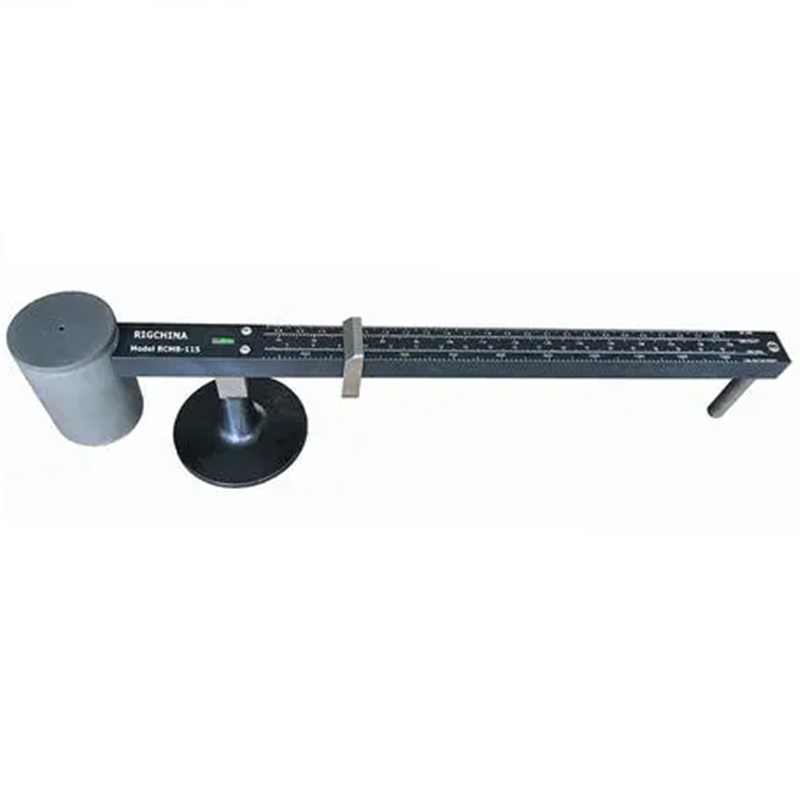

Part No.112-02 4-Scale Mud Balance, Model RCMB-115
Constructed of premium metals for durability, accuracy and ease of use
The Model RCMB-115 Mud Balance provides a simple, practical method for accurate determination of fluid density.
It is one of the most sensitive and accurate field instruments available for determining the density or weight-per-unit-volume
(specific gravity) of drilling fluids.
An outstanding advantage of this Mud Balance is that the temperature of the sample does not materially affect the accuracy of
readings. A high impact plastic case protects the balance during transport and provides a secure base in its working position.
The Model RCMB-115 Mud Balance is constructed with an easy-to-read beam graduated into four scales:
· pounds per gallon
· specific gravity
· pounds per cubic foot
· pounds per square inch per 1,000 feet of depth
The volume of space occupied by entrapped gas or air bubbles in a sample fluid may distort the accuracy of the fluid density
measurement. This distortion can be significantly reduced by pressurizing the fluid. The density of a fluid containing entrained
air or gas can be determined more accurately by using a pressurized fluid density balance.
Constructed of premium metals for durability, accuracy and ease of use
The Model RCMB Series Mud Balance provides a simple, practical method for accurate determination of fluid density.
It is one of the most sensitive and accurate field instruments available for determining the density or weight-per-unit-volume
(specific gravity) of drilling fluids.
An outstanding advantage of this Mud Balance is that the temperature of the sample does not materially affect the accuracy of
readings. A high impact plastic case protects the balance during transport and provides a secure base in its working position.
The Model RCMB Series Mud Balance is constructed with an easy-to-read beam graduated into four scales:
· pounds per gallon
· specific gravity
The volume of space occupied by entrapped gas or air bubbles in a sample fluid may distort the accuracy of the fluid density
measurement. This distortion can be significantly reduced by pressurizing the fluid. The density of a fluid containing entrained
air or gas can be determined more accurately by using a pressurized fluid density balance.
Part No.112-02 4-Scale Mud Balance, Model RCMB-115
Constructed of premium metals for durability, accuracy and ease of use
The Model RCMB-115 Mud Balance provides a simple, practical method for accurate determination of fluid density.
It is one of the most sensitive and accurate field instruments available for determining the density or weight-per-unit-volume
(specific gravity) of drilling fluids.
An outstanding advantage of this Mud Balance is that the temperature of the sample does not materially affect the accuracy of
readings. A high impact plastic case protects the balance during transport and provides a secure base in its working position.
The Model RCMB-115 Mud Balance is constructed with an easy-to-read beam graduated into four scales:
· pounds per gallon
· specific gravity
· pounds per cubic foot
· pounds per square inch per 1,000 feet of depth
The volume of space occupied by entrapped gas or air bubbles in a sample fluid may distort the accuracy of the fluid density
measurement. This distortion can be significantly reduced by pressurizing the fluid. The density of a fluid containing entrained
air or gas can be determined more accurately by using a pressurized fluid density balance.
|
Mud Balance Specification
|
|
|
|
|||
|
Part No.
|
Model
|
Description
|
Remark
|
|||
|
115-04
|
RCMB-4
|
Material: Stainless Steel
Measuring Range(2 Scales):5.8-24 lb/gal(0.7-2.9 gms/cm3 Specific Gravity) Accuracy:0.01% Mud capacity:140ml Size:50*12*12cm Weight:2kg |
|
|||
|
115-07
|
RCMB-7
|
Material: Stainless Steel
Measuring Range(2 Scales): 0.8-13 1b/gal (0.1-1.5gms/cm3) Accuracy:0.01% Mud capacity:140ml Size:50*12*12cm Weight:2kg |
|
|||
|
112-20
|
RC-140
|
Material: Aluminium Alloy
Measuring Range(4 Scales): 6-24 lb/gal 310-1250 lb/sq in/100ft of depth 45-180 lb/cu ft 0.72-2.88 gms/cm3 Specific Gravity Accuracy:0.01% Mud capacity:140ml Size:50*12*12cm Weight:2kg |
|
|||
|
RPMB-31
|
RPMB-31
|
Mud Balance Tru-wate Pressurized
1.Measuring range: 0.90-3.1g/cm3 (7.5-26lb/gal)
2.Measuring Accuracy: 0.01g/cm3
3.Mud capacity:210cm3
|
|
|||
Mud test three-piece NB-1 mud hydrometer NA-1 sand content 1006 mud viscometer
NB-1 hydrometer is an instrument for measuring the specific gravity of mud, and its unit is g/cm. This hydrometer is a scale with unequal arms. Its lever blade rests on a seat that can be fixedly installed on the workbench. The left side of the lever is a scaled vernier device. Moving the vernier can directly read the mud on the scale. weight. The balance of the lever is indicated by the horizontal bubble at the top of the lever.
2. Main technical characteristics of NB-1 hydrometer
1. The measurement range is from 0.96 to 3 g/cm3
2. The graduation value of the scale is 0.0l g/cm3
3. The capacity of the mud cup is 140 cm3
4. Instrument size: 500(L)*100(W)*100(H)mm
3. Instructions for use
1. When using the mud hydrometer, the mud must be poured into the mud cup
2. Flush the mouth of the cup without leaving air bubbles
3. Gently cover the lid
4. Wipe up the excess spilled mud
5. Put the main knife edge of the lever on the main knife pad of the base
6. Move the weight slowly, when the bubble is in the center, the lever is horizontal
7. Read the scale shown on the left side of the weight (that is, the specific gravity of the mud)
8. To measure the specific gravity of the mud at 2~3g/cm3, unscrew the balance cylinder cover
9. Put the counterweight into the
10. Screw on the screw cap, you can measure
11. The instrument should be rinsed and wiped clean after use
Fourth, the verification method
To check whether the instrument is accurate, the mud cup can be filled with distilled water, and the specific gravity measured by the same method is 1, then the hydrometer is accurate. If the measured result is not 1, the balance cylinder cover of the hydrometer can be unscrewed, and the metal particles in the cylinder can be increased or decreased so that the measured specific gravity is 1.
