Quick Details
-
Dimension(L*W*H):
-
8006*1880*1766
-
Weight:
-
3700 KG
-
Material:
-
iron
-
Color:
-
green
-
Drafting multiple:
-
4.4-12.7
-
Front roller spacing (mm):
-
39-63
-
Frequency converter's specification:
-
3G3RV-A4055
-
Maximum Feed-in weight(g/m):
-
250
-
Carding mode of the carding box:
-
Chain type
-
Needle bar specification(mm):
-
332*13.5
-
Needle bar qty(piece):
-
72 both left and right sides
-
Needle hitting times(times/min):
-
5000
Quick Details
-
Application:
-
Spinning Line
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LANGMA
-
Dimension(L*W*H):
-
8006*1880*1766
-
Weight:
-
3700 KG
-
Material:
-
iron
-
Color:
-
green
-
Drafting multiple:
-
4.4-12.7
-
Front roller spacing (mm):
-
39-63
-
Frequency converter's specification:
-
3G3RV-A4055
-
Maximum Feed-in weight(g/m):
-
250
-
Carding mode of the carding box:
-
Chain type
-
Needle bar specification(mm):
-
332*13.5
-
Needle bar qty(piece):
-
72 both left and right sides
-
Needle hitting times(times/min):
-
5000
Products Description
|

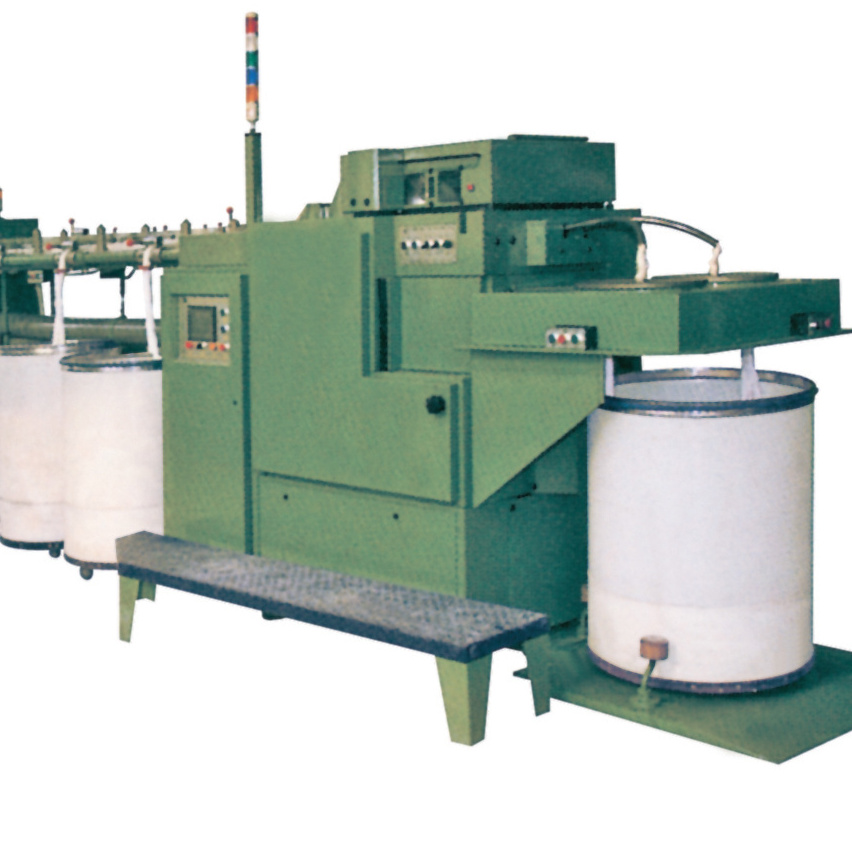

■FBL series wool spinning combing machine Main specifications and technical parameters
|
|
|
|
|
|
|||||
|
Item\Model
|
FBL312
|
FBL313/FBL313Y
|
FBL314
|
FBL315
|
FBL316/FBL316Y
|
|||||
|
Output slicer quantity(piece)
|
1
|
|
2
|
1
|
|
|||||
|
Feed-in sliver quantity(piece)
|
10
|
10
|
2*5
|
10
|
|
|||||
|
Feed-in sliver quantity(piece)
|
10
|
10
|
2*5
|
10
|
|
|||||
|
Feed-in sliver can's specification(mm)
|
Φ700*1000
|
|
|
Φ700*1000
|
|
|||||
|
Output ball top specification(mm)
|
|
|
|
|
Φ500*550
|
|||||
|
Output sliver can's spcification(mm)
|
Φ700*1000
|
|
|
Φ700*1000
|
|
|||||
|
Maximum Feed-in weight(g/m)
|
250
|
|
|
240
|
|
|||||
|
Maximum output sliver weight(g/m)
|
25
|
|
22
|
25
|
|
|||||
|
Carding mode of the carding box
|
Chain type
|
|
|
Chain type
|
|
|||||
|
Needle bar specification(mm)
|
332*13.5
|
|
|
332*13.5
|
|
|||||
|
Needle bar qty(piece)
|
72 both left and right sides
|
|
|
72 both left and right sides
|
|
|||||
|
Needle density(stiches/cm)
|
2.5-5(Optional)
|
|
|
2.5-5(Optional)
|
|
|||||
|
Needle hitting times(times/min)
|
5000
|
|
|
5000
|
|
|||||
|
Special chain specification
|
9.525-3*72
|
|
|
9.525-3*72
|
|
|||||
|
Front roller sliver discharging speed (m/min)
|
250(Normallyopen200)
|
|
|
250(Normallyopen200)
|
|
|||||
|
Drafting multiple
|
4.4-12.7
|
|
|
4.4-12.7
|
|
|||||
|
Front roller spacing (mm)
|
39-63
|
|
|
39-63
|
|
|||||
|
Self-leveling apparatus
|
|
FBl313Y Yes
|
|
|
FBl313Y Yes
|
|||||
|
Wool lubricating device
|
|
|
|
|
Yes
|
|||||
|
Front roller specification (mm)
|
Φ62.5/Φ30
|
|
|
Φ62.5/Φ30
|
|
|||||
|
Front leather roller specification(mm)
|
Φ80
|
|
|
Φ80
|
|
|||||
|
Rear roller specification (mm)
|
Φ62.5
|
|
|
Φ62.5
|
|
|||||
|
Rear pressurized leather roller specification(mm)
|
Φ80
|
|
|
Φ80
|
|
|||||
|
Front roller pressurized mode
|
pneumatic
|
|
|
pneumatic
|
|
|||||
|
Rear roller pressurized mode
|
pneumatic
|
|
|
pneumatic
|
|
|||||
|
Main electrical machinery power(Kw)
|
5.5
|
|
|
5.5
|
|
|||||
|
Dust collecting motor's power(Kw)
|
1.5
|
|
|
1.5
|
|
|||||
|
Frequency converter's specification
|
3G3RV-A4055
|
|
|
3G3RV-A4055
|
|
|||||
|
overall dimension （ L*W*H(mm)
|
8006*1880*
1981 |
7816*1880*
1981 |
7166*1880*
1981 |
7881*1880*
1981 |
8416*2124*
2181 |
|||||
