Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Year:
-
2021
-
Weight (KG):
-
200 KG
-
After-sales Service Provided:
-
Video technical support, Online support
-
Product name:
-
Fiber Laser Cleaning Machine Laser Rust Removal For Metal Surface Rust
-
Feature:
-
Cleaning metal sheet
-
Laser wavelength:
-
1064~1080nm
-
Laser power:
-
1500W / 2000W
-
Laser source:
-
Raycus IPG MAX
-
Type:
-
Laser cleaning
-
Cleaning materials:
-
Stainless Steel Carbon Steel Aluminum Copper
-
Control system:
-
Cypcut
-
Cooling method:
-
Water cooling
-
Optional:
-
Big power laser source
Quick Details
-
Power:
-
1500W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
MAX
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Year:
-
2021
-
Weight (KG):
-
200 KG
-
After-sales Service Provided:
-
Video technical support, Online support
-
Product name:
-
Fiber Laser Cleaning Machine Laser Rust Removal For Metal Surface Rust
-
Feature:
-
Cleaning metal sheet
-
Laser wavelength:
-
1064~1080nm
-
Laser power:
-
1500W / 2000W
-
Laser source:
-
Raycus IPG MAX
-
Type:
-
Laser cleaning
-
Cleaning materials:
-
Stainless Steel Carbon Steel Aluminum Copper
-
Control system:
-
Cypcut
-
Cooling method:
-
Water cooling
-
Optional:
-
Big power laser source

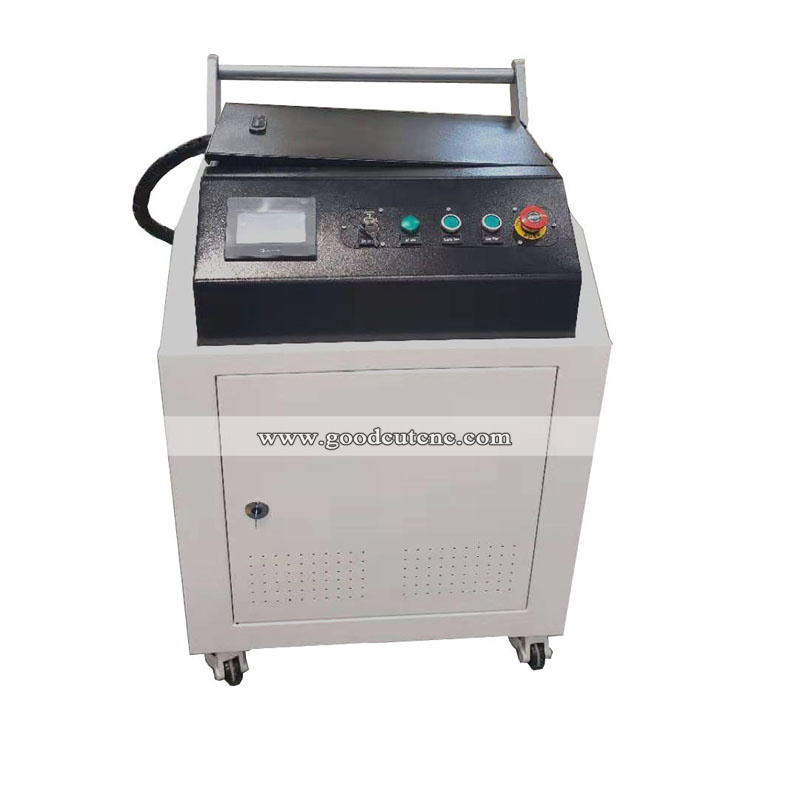

Portable 1500W 2000W Fiber Laser Cleaning Machine Laser Rust Removal For Metal Surface Rust
GoodCut Fiber laser cleaning machine is a high-tech product of the new generation of surface treatment.
It is easy to remove resin stains, paint-coat, rust, cladding material, and paint.
It is widely applicable in varies of industries, which can effectively reduce the machine maintenance cost and improve the industrial cleaning effect.
Portable 1500W 2000W Fiber Laser Cleaning Machine Laser Rust Removal For Metal Surface Rust:
|
Equipment model
|
GC-C1500
|
GC-C2000
|
|
Laser working medium
|
fiber laser
|
|
|
Laser power
|
1500W
|
2000W
|
|
Laser wavelength
|
1064~1080nm
|
|
|
Pulse frequency
|
5000~10000Hz
|
5000~10000Hz
|
|
Cooling method
|
Water cooling
|
Water cooling
|
|
Dimension
|
1350mmX750mmX1450mm
|
|
|
Total Weight
|
260kg
|
280kg
|
|
Total power
|
10KW
|
12KW
|
|
Scan width
|
10-50mm/10-67mm/10-80mm optional
|
|
|
Optional
|
Hand/automatic
|
|
|
Working temperature
|
5-40℃
|
|
Laser cleaning head
Wire reel
Control System
Water chiller
2. Effect advantages: the traditional cleaning method is often contact cleaning, which has mechanical force on the surface of the cleaned object, damages the surface of the object or the cleaning medium is attached to the surface of the cleaned object,which cannot be removed and produces secondary pollution. The non grinding and non-contact of laser cleaning can solve these problems; Laser cleaning can remove various types of pollutants on the surface of various materials and achieve cleanliness that conventional cleaning cannot achieve. It can also selectively clean the pollutants on the material surface without damaging the material surface.
3. Control advantages: the laser can be transmitted through optical fiber, cooperate with manipulator and robot, conveniently realize long-distance operation, and can clean the parts that are not easy to reach by traditional methods, which can ensure the safety of personnel in some dangerous places.
4. Cost advantage: laser cleaning has high efficiency and saves time; Although the one-time investment in the purchase of laser cleaning system is high in the early stage, the cleaning system can be used stably for a long time and has low operation cost.
Application field of Portable 1500W 2000W Fiber Laser Cleaning Machine Laser Rust Removal For Metal Surface Rust:
