Quick Details
-
Usage:
-
Garlic Harvester
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SANKAY
-
Dimension(L*W*H):
-
1980*1230*900mm
-
Weight:
-
260 KG
-
Marketing Type:
-
New Product 2022
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
keywords:
-
Garlic Harvester
-
Row Spacing:
-
800-1200mm
-
Working Width:
-
900mm
-
MOQ:
-
1 set
-
Structure Type:
-
Suspension
-
Power:
-
22.1-29.4kw
-
Efficiency:
-
0.09-0.2hm2/h
-
Absorptivity:
-
>95%
Quick Details
-
Number of Rows:
-
2
-
Working Width(mm):
-
9000 mm
-
Tractor Power(HP):
-
25 - 40 HP
-
Usage:
-
Garlic Harvester
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SANKAY
-
Dimension(L*W*H):
-
1980*1230*900mm
-
Weight:
-
260 KG
-
Marketing Type:
-
New Product 2022
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
keywords:
-
Garlic Harvester
-
Row Spacing:
-
800-1200mm
-
Working Width:
-
900mm
-
MOQ:
-
1 set
-
Structure Type:
-
Suspension
-
Power:
-
22.1-29.4kw
-
Efficiency:
-
0.09-0.2hm2/h
-
Absorptivity:
-
>95%

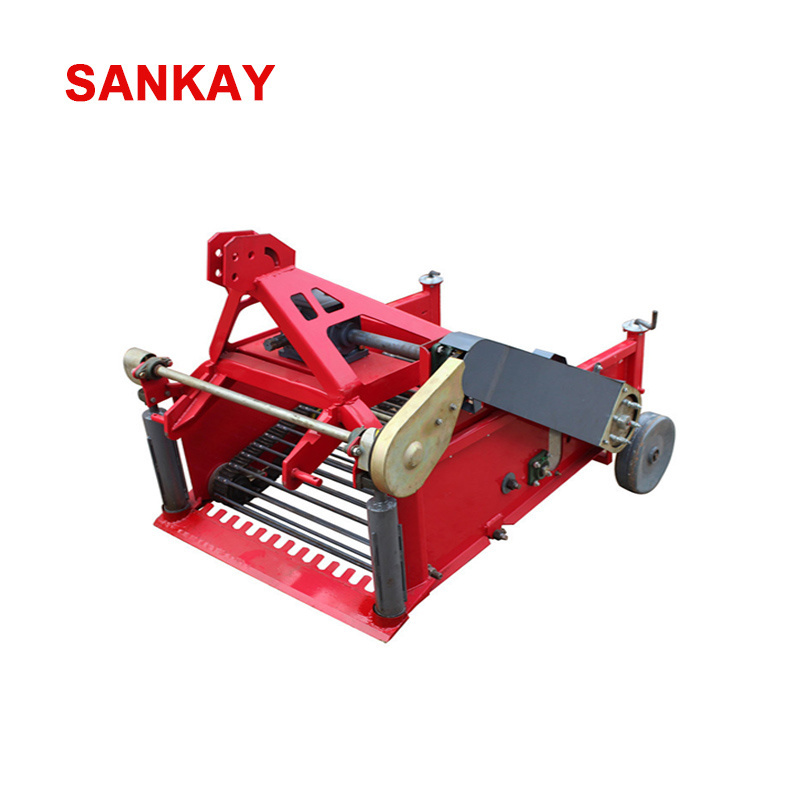

Root Crops Harvester/Sweet Potatoes Harvester/Garlic Harvester Equipment
1.It features of high-working efficiency, lower breakage rate, lower skin break rate.
2.Light & quick running without vibration, no blocking by the grasses, leaks the soil quickly, lower buried potato rate.
3.The penetrating angle of excavating device is the same with the elevation angle of transfer& separate device. It effectively solves the problem of soil accumulation after shoveling.
4.Matching power is the common four wheel tractor, it is features of wide adaptation , strong applicability, low investment and easy to operate.
5.The residual agricultural film can be extracted so as not to affect the crop's growth afterwards.
|
|
4UXS-80 |
4UXS-85 |
4UXS-110 |
4UXS-130 |
|
Structure |
3 point hitch |
|||
|
Power(kw ) |
22-29.4 |
22.1-29.4 |
29.4-36.8 |
29.4-36.8 |
|
Efficiency(hm2/h) |
0.07-0.18 |
0.09-0.2 |
0.17-0.28 |
0.21-0.3 |
|
Digging Depth(mm ) |
150-250 |
|||
|
Working Width(mm) |
800 |
900 |
1100 |
1300 |
|
Row Spacing(mm) |
<800 |
800-1200 |
900-1500 |
1200-1600 |
|
Dimension(mm) |
1900*1200*850 |
1980*1230*900 |
2200*1500*1100 |
2350*1650*1200 |
|
Weight(kg) |
230 |
260 |
405 |
430 |
UXS series Root Crops Garlic Harvester Equipment is our company designed for garlic and tubers excavation. It can complete the working procedures of excavating, earth clearing and tubers laying on field surface. It can harvest single ridge and single row, also single ridge and two rows, which greatly reduces the manpower demand and the harvesting operation cost. This machine has the advantages of high-working efficiency, lower breakage rate, simple structure as well as long life service.
