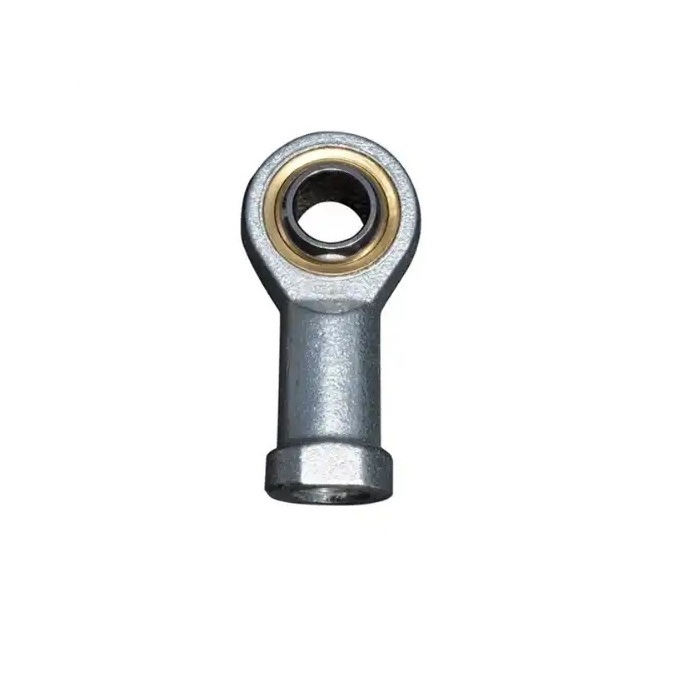

Rod End Plain Bearing Si10tk Si10t/K Universal Ball Joint Bearing with Right Thread Rod End M10 Fish Eye Bearing for Gear Box

Rod End Plain Bearing Si10tk Si10t/K Universal Ball Joint Bearing with Right Thread Rod End M10 Fish Eye Bearing for Gear Box

FOB Reference Price: Get Latest Price

≥100 Pieces

US $1.1

≥1000 Pieces

US $0.96

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Fujian, China

Material:: chrome steel

Certificate:: ISO 9001:2015,Reach and RoHs

Application:: Fishing Reel

Cage Material:: plastic spring or steel spring

weight:: 77 g

Quick Details

Applicable Industries:: Manufacturing Plant

Brand Name:: RUNSTAR

Model Number:: SI10TK/ SI10T/K

Place of Origin:: Fujian, China

Material:: chrome steel

Certificate:: ISO 9001:2015,Reach and RoHs

Application:: Fishing Reel

Cage Material:: plastic spring or steel spring

weight:: 77 g

SI…TK Series (PHS Series)Rod Ends is belong to maintenance-free Rod Ends bearing. The rod end body is equipped with a left-hand or right-hand external thread. The rod end body is formed by extrusion and the surface of the rod end body is galvanized. And The outer sphere is lined with PTFE synthetic material.

Part No:		Dimension										Torque Kgf/cm	Load Rating(KN)		Weight
Part No:		d	d3	B	a	C1	d2	G	h1	L4	L3	Torque Kgf/cm	Cr	Cor	g
SA3PK	NOS-3	3	6.8	6	11	4.5	12	M3x0.5	27	33	15	0.2~3.5			6
SA4PK	NOS-4	4	7.6	7	12	5.3	14	M4x0.7	30	37	17	0.2~3.5			10
SA5PK	NOS-5	5	7.7	8	12	6	16	M5x0.8	33	41	20	0.2~3.5	5.7	6	12
SA6PK	NOS-6	6	9	9	10	6.8	18	M6x1	36	45	22	0.2~3.5	7.2	7.65	19
SA8PK	NOS-8	8	10.4	12	12	9	22	M8x1.25	42	53	25	0.2~3.5	11.6	12.9	32
SA10PK	NOS-10	10	12.9	14	12	10.5	26	M10x1.5	48	61	29	0.2~3.5	14.5	18	54
SA12PK	NOS-12	12	15.4	16	12	12	30	M12x1.75	54	69	33	0.2~3.5	17	24	85
SA14PK	NOS-14	14	16.9	19	14	13.5	34	M14x2	60	77	36	0.2~3.5	24	31	126
SA16PK	NOS-16	16	19.4	21	13	15	38	M16x2	66	85	40	0.2~3.5	28.5	39	185
SA18PK	NOS-18	18	21.9	23	14	17	42	M18x1.5	72	93	44	0.2~3.5	42.5	47.5	258
SA20PK	NOS-20	20	24.4	25	12	18	46	M20x1.5	78	101	47	0.2~3.5	42.5	57	340
SA22PK	NOS-22	22	25.8	28	13	20	50	M22x1.5	84	109	51	0.2~3.5	57	68	435
SA25PK	NOS-25	25	29.6	31	14	22	56	M24x2	94	122	57	0.2~3.5	68	85	730
SA28PK	NOS-28	28	32.3	35	16	26	66	M27x2	110	143	66	0.2~3.5			1000
SA30PK	NOS-30	30	34.8	37	16	26	66	M30x2	110	143	66	0.2~3.5			1320

Part No:		Dimension														Torque Kgf/cm	Load Rating(KN)		Weight
Part No:		d	d1	B	a	C1	d2	G	h1	L4	L3	d4	d5	L5	W	Torque Kgf/cm	Cr	Cor	g
SI3PK	NHS-3	3	6.8	6	11	4.5	12	M3x0.5	21	27	10	6.5	8	3	7	0.2~3.5			10
SI4PK	NHS-4	4	7.6	7	12	5.25	14	M4x0.7	24	31	12	8	9.5	4	8	0.2~3.5			12
SI5PK	NHS-5	5	7.7	8	12	6	16	M5x0.8	27	35	14	9	12	4	9	0.2~3.5	5.7	6	16
SI6PK	NHS-6	6	9	9	10	6.75	18	M6x1	30	39	14	10	13	5	11	0.2~3.5	7.2	7.65	25
SI8PK	NHS-8	8	10.4	12	12	9	22	M8x1.25	36	47	17	13	16	5	14	0.2~3.5	11.6	12.9	43
SI10PK	NHS-10	10	12.9	14	12	10.5	26	M10x1.5	43	56	21	15	19	6.5	17	0.2~3.5	14.5	18	72
SI12PK	NHS-12	12	15.4	16	12	12	30	M12x1.75	50	65	24	18	22	6.5	19	0.2~3.5	17	24	107
SI14PK	NHS-14	14	16.9	19	14	13.5	34	M14x2	57	74	27	20	25	8	22	0.2~3.5	24	31	160
SI16PK	NHS-16	16	19.4	21	13	15	38	M16x2	64	83	33	22	27	8	22	0.2~3.5	28.5	39	210
SI18PK	NHS-18	18	21.9	23	14	17	42	M18x1.5	71	92	36	25	31	10	27	0.2~3.5	42.5	47.5	295
SI20PK	NHS-20	20	24.4	25	12	18	46	M20x1.5	77	100	40	27.5	34	10	32	0.2~3.5	42.5	57	380
