Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Top Brand
-
Marketing Type:
-
New Product 2023, Ordinary Product
-
Weight (KG):
-
100000 kg
-
Max. rated lifting capacity:
-
100Ton
-
Rated Lifting Moment:
-
4000KN.M
-
Application:
-
Construction
-
Main Boom length:
-
13.5-63m
-
Span:
-
8m
Quick Details
-
Rated Loading Capacity:
-
100Ton
-
Max. Lifting Height:
-
82.5m
-
Engine Brand:
-
Top Brand
-
Place of Origin:
-
China
-
Brand Name:
-
Top Brand
-
Marketing Type:
-
New Product 2023, Ordinary Product
-
Weight (KG):
-
100000 kg
-
Max. rated lifting capacity:
-
100Ton
-
Rated Lifting Moment:
-
4000KN.M
-
Application:
-
Construction
-
Main Boom length:
-
13.5-63m
-
Span:
-
8m

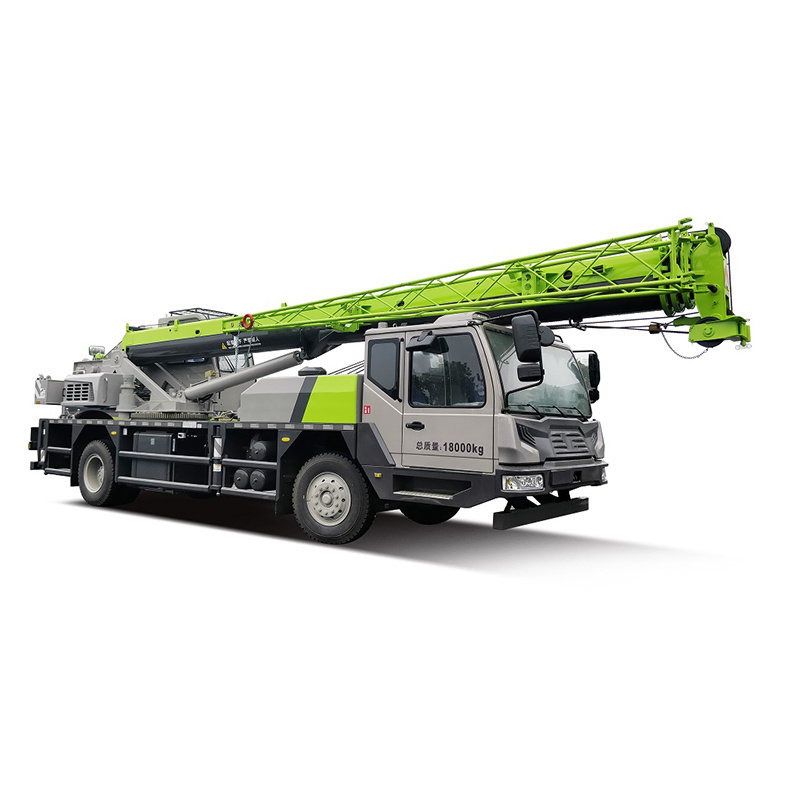

Products Description
The lifting, variable amplitude, rotary, telescopic and other mechanisms of the product adopt manual proportional control and hydraulic drive, which are characterized by light and flexible operation, stable and reliable operation, stepless speed
regulation, etc. In the hydraulic system, safety valve and balance are provided. Safety devices such as valves, hydraulic locks, brake valves, etc., to prevent accidents caused by oil passage overload and avoid oil pipe rupture.
The upper control valve adopts anti-flow saturation technology, and the flow rate is independent of load, ensuring combined action. Stability and synchronization.
regulation, etc. In the hydraulic system, safety valve and balance are provided. Safety devices such as valves, hydraulic locks, brake valves, etc., to prevent accidents caused by oil passage overload and avoid oil pipe rupture.
The upper control valve adopts anti-flow saturation technology, and the flow rate is independent of load, ensuring combined action. Stability and synchronization.
Specification
|
Item
|
|
Amount
|
|
|
Performance Parameter
|
Rated Capacity (kg)
|
12000
|
|
|
|
Max. load moment of basic boom (kN·m)
|
465.5
|
|
|
|
Max. load moment of main boom (fully extended) (kN·m)
|
258.7
|
|
|
|
|
7
|
|
|
|
Max. lifting height of main boom (m)
|
29.8
|
|
|
|
Max. lifting height of jib (m)
|
35.8
|
|
|
Working Speed
|
Max. hoist rope speed (Main winch) m/min
|
98
|
|
|
|
Max. hoist rope speed (Auxiliary winch) m/min
|
87
|
|
|
|
Boom demrricking up time (s)
|
38
|
|
|
|
Boom demrricking up time (s)
|
53.5
|
|
|
|
Slewing speed (r/min)
|
2.2
|
|
|
Traveling speed
|
Max. driving speed (km/h)
|
80
|
|
|
|
Max. Gradeability %
|
40
|
|
|
|
Turning diameter (m)
|
≤20
|
|
|
|
Min. ground clearance (mm)
|
260
|
|
|
|
Approach angle / departure angle (°)
|
15/13
|
|
|
|
Braking distance (m)
|
≤10
|
|
|
|
Oil consumption per hundred kilometers (L)
|
28
|
|
|
Dimensions
|
Overall dimensions (L×W×H) mm
|
11150×2500×3180
|
|
|
|
Span (Longitudinal ×Transversal ) (m)
|
4.63×5.2
|
|
|
|
Main boom (m)
|
9.2~29.4
|
|
|
|
Boom angle (°)
|
-2~80
|
|
|
|
Jib boom (m)
|
6
|
|
|
|
Offset (°)
|
0
|
|
|
|
Front / rear overhang (mm)
|
1970/2110
|
|
|
|
Axle number
|
3
|
|
|
|
Wheelbase (mm)
|
3750+1300
|
|
|
|
Tread (front/rear) (mm)
|
1940/1860
|
|
|
Weight
|
Deadweight in driving condition (kg)
|
19450
|
|
|
|
Complete vehicle kerb mass (kg)
|
19320
|
|
|
|
Front axle load (kg)
|
6000
|
|
|
|
Rear axle load (kg)
|
13450
|
|
