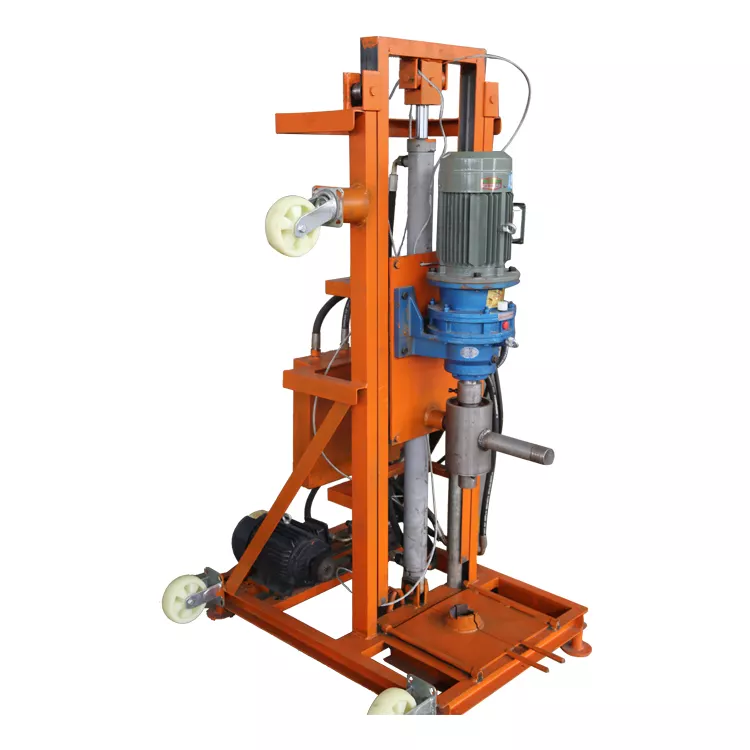

Water well drill machine mainly used for family eat well, air condition used
well, and it is perfect tool to help workers engaged in drilling Wells and investigation.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
200 KG
-
Mobility:
-
yes
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
700*700*2500mm
-
Weight:
-
200 KG
-
Mobility:
-
yes
Product Description
Application
Features and Advantages
1. Light weight. The main engine is only weighted 50kg.
2. Easy to operate. Needing little experience to operate.
3. Matched power diversified, it can adopt gasoline, also can adopt single phase and three phase electric
4. Wide suitability, it can work in door and outdoor.
5. Economical. It can be called the most economical water well drilling machine.
2. Easy to operate. Needing little experience to operate.
3. Matched power diversified, it can adopt gasoline, also can adopt single phase and three phase electric
4. Wide suitability, it can work in door and outdoor.
5. Economical. It can be called the most economical water well drilling machine.
Specification
|
Drilling machine overall dimension(mm)
|
700*700*2500
|
|
Weight of Drilling machine(kg)
|
200
|
|
Drill rod diameter(mm)
|
42-220
|
|
Drill rod length(mm)
|
1500
|
|
Rod change method
|
Full automatic screw thread
|
|
Drilling depth(m)
|
100
|
|
Engine
|
5kw/380v
|
|
Drilling method
|
Percussive and rotating type
|
|
Pump power(KW)
|
3KW
|
|
Drilling hole diameter(mm)
|
Within Ø 200mm
|
|
Hosting height(mm)
|
2000
|
|
Hosting capacity(kg)
|
500
|
Packing & Delivery
standard export wooden box
