Quick Details
-
Model Number:
-
12V24v 100ah ~600ah
-
Place of Origin:
-
Shandong, China
-
Electric Energy:
-
100 Wh
-
product name:
-
Battery 12v100ah Plastic Case M8 Terminal Lithium Ion Lifepo4
-
lifespan:
-
above 3000 cycles
-
Charge Current:
-
0.2C
-
Material:
-
lifepo4 battery cell
-
Keywords:
-
lithium battery 12v 100ah
-
Warranty:
-
3 Year
-
Charge Cut-off Voltage:
-
14.6v
-
Discharge Cut-off Voltage:
-
10.0v
-
Product name:
-
lithium battery 48v 24v 12v 250ah 300ah 400ah 500ah 600ah
-
Discharge Current:
-
0.2C~0.5c
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Home Appliances
-
Brand Name:
-
Vglory orOEM
-
Model Number:
-
12V24v 100ah ~600ah
-
Place of Origin:
-
Shandong, China
-
Electric Energy:
-
100 Wh
-
product name:
-
Battery 12v100ah Plastic Case M8 Terminal Lithium Ion Lifepo4
-
lifespan:
-
above 3000 cycles
-
Charge Current:
-
0.2C
-
Material:
-
lifepo4 battery cell
-
Keywords:
-
lithium battery 12v 100ah
-
Warranty:
-
3 Year
-
Charge Cut-off Voltage:
-
14.6v
-
Discharge Cut-off Voltage:
-
10.0v
-
Product name:
-
lithium battery 48v 24v 12v 250ah 300ah 400ah 500ah 600ah
-
Discharge Current:
-
0.2C~0.5c
Product Description
|
Weight
|
|
36kg
|
||
|
Size
|
|
custom
|
||
|
Working Temperature
|
Charge
|
-20°C ~ 45°C , 65±20%RH;
|
||
|
|
Discharge
|
-20°C ~65°C , 65±20%RH
|
||
|
Storage Temperature
|
Less than 1 month
|
-20°C ~ 45°C
|
||
|
|
less than 3 months
|
-20°C ~ 35°C
|
||
|
Retention of charge(store in one month)
|
|
above 95%
|
||
|
2. Technical Data
|
|
|
||
|
Rated Voltage
|
|
12.8V
|
||
|
Rated Capacity
|
|
100ah 200ah 250Ah,300ah,400ah,500ah,600ah
|
||
|
Charge & Discharge
|
Way of charge
|
CC/CV(Constant Current / Constant Voltage)
|
||
|
|
Standard Charge Current
|
0.2c (Adjustable)
|
||
|
|
Max Charge Current
|
0.5c or customized
|
||
|
|
Over Charge cut-off voltage
|
14.6v± 0.025V(optional)
|
||
|
|
Continuous Discharge Current
|
0.5c (Adjustable)
|
||
|
|
Discharge cut-off voltage
|
10v ± 0.025V(optional)
|
||
|
|
Peak Discharge Current
|
0.2c ~0.5c customized
|
||
|
|
Cell Over Charge Protection Voltage
|
3.65v ± 0.025V(optional)
|
||
|
|
Cell Over discharge Protection Voltage
|
2.5v ± 0.025V(optional)
|
||

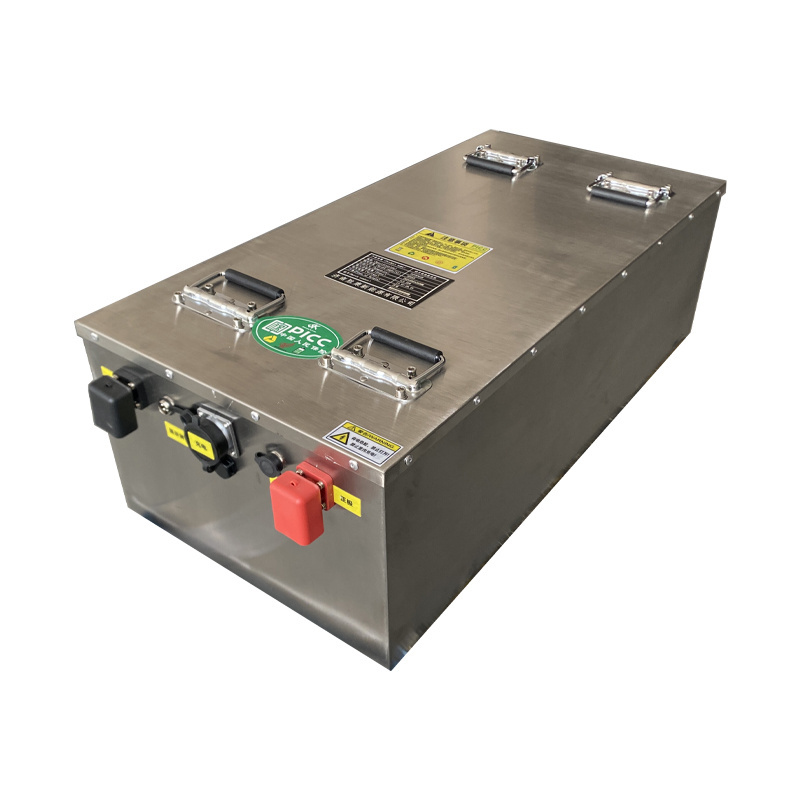

Specification
|
Product Name
|
Power Battery Pack Assembly
|
|
Specification
|
72V180AH
|
|
Material
|
Lithium iron phosphate/ternary lithium battery
|
|
capacity
|
180AH
|
|
External dimensions
|
810 * 525 * 350MM
|
|
Applicable scope
|
Electric vehicles/handling vehicles
|
|
Voltage range
|
supports customization
|
|
high-power range
|
supports customization
|
|
Remote control/backend management
|
optional
|
|
Cycle life
|
>2000 times
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
