- Product Details
- {{item.text}}
Quick Details
-
Power:
-
750
-
Dimension(L*W*H):
-
1080*950*1700
-
Weight (KG):
-
400 KG
-
Keywords:
-
3 spindle thread yarn braiding machine braided rope making machine
-
Name:
-
High Speed Rope Braiding Machines
-
Application:
-
Wool laces rope ect
-
Product:
-
Braided Ropes
-
bobbin size:
-
43*140/48*140mm
-
Spindle qty:
-
12-120 Spindle
-
Horn gear speed:
-
300/320rpm/min
-
rope diameter:
-
0.1-20mm
-
horngear size:
-
80-90
-
key words:
-
automatic 24 spindle shoelace braiding machine cord knitting machine
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Minko
-
Power:
-
750
-
Dimension(L*W*H):
-
1080*950*1700
-
Weight (KG):
-
400 KG
-
Keywords:
-
3 spindle thread yarn braiding machine braided rope making machine
-
Name:
-
High Speed Rope Braiding Machines
-
Application:
-
Wool laces rope ect
-
Product:
-
Braided Ropes
-
bobbin size:
-
43*140/48*140mm
-
Spindle qty:
-
12-120 Spindle
-
Horn gear speed:
-
300/320rpm/min
-
rope diameter:
-
0.1-20mm
-
horngear size:
-
80-90
-
key words:
-
automatic 24 spindle shoelace braiding machine cord knitting machine
Products Description

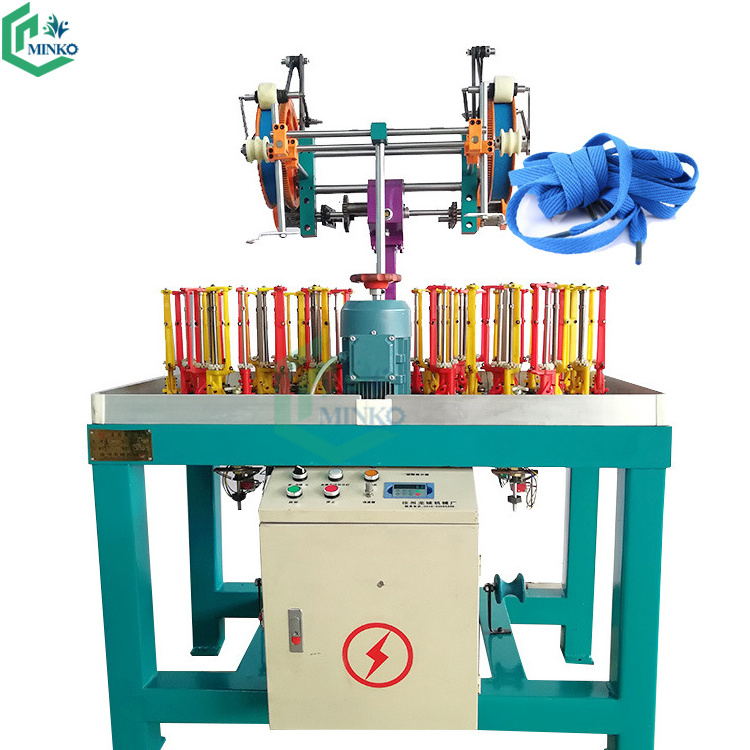

high speed 3 spindle thread yarn braiding machine braided rope making machine
1.High speed rope braiding machine is automatic production machine can simple operation. 2.The produced according to customer
requirements, can produce different standard products, like nylon rope, cotton rope, PE rope etc. 3.The production speed is three
times of ordinary braiding machine. The machine parts are real materials, precision design, durable, a low depreciation rate. Easy
to operate and easy to maintain. 4.Low HP and low electricity cost.
requirements, can produce different standard products, like nylon rope, cotton rope, PE rope etc. 3.The production speed is three
times of ordinary braiding machine. The machine parts are real materials, precision design, durable, a low depreciation rate. Easy
to operate and easy to maintain. 4.Low HP and low electricity cost.
|
Model
|
head qty
|
spindle qty
|
power
|
horngear size
|
bobbin size
|
rope dia
|
size(mm)
|
|
MK-BM12
|
4
|
12
|
750w
|
80-90
|
43*140/48*140
|
0.1-8mm
|
980*950*1700
|
|
MK-BM16
|
4
|
16
|
750w
|
80-90
|
43*140/48*140
|
0.1-8mm
|
1080*950*1700
|
|
MK-BM24
|
2
|
24
|
750w
|
80-90
|
43*140/48*140
|
0.5-12mm
|
1250*850*1700
|
|
MK-BM32
|
2
|
32
|
750w
|
80-90
|
43*140/48*140
|
1-15mm
|
1370*850*1700
|
|
MK-BM36
|
2
|
36
|
1100w
|
80-90
|
43*140/48*140
|
1-15mm
|
1420-980*1700
|
|
MK-BM40
|
2
|
40
|
1100w
|
80-90
|
43*140/48*140
|
2-16mm
|
1650*900*1700
|
|
MK-BM44
|
1
|
44
|
750w
|
80-90
|
43*140/48*140
|
2-20mm
|
1050*950*1700
|
|
MK-BM48
|
2
|
48
|
750w
|
80-90
|
43*140/48*140
|
3-20mm
|
1850*950*1750
|
|
MK-BM56
|
1
|
56
|
1100w
|
80-90
|
43*140/48*140
|
3-20mm
|
1200*1050*1750
|
16 spindle round cotton shoe laces braiding machine
32 spindle double-head high-speed decoration with gift rope knitting machine
Spindle winding machine
rope tipping machine
Details Images
Packaging&Shipping
Package
*Moisture-proof inner package *Shockproof inner package
*Insect-proof wooden box package
*Iron fastening tape
*Insect-proof wooden box package
*Iron fastening tape
Shipping
*Land shipping *Rail transportation
*Sea transportation
*Air shipping
*Sea transportation
*Air shipping
Documents
Bill of loading . packing list
Commercial invoice .C/O
FORM A FORM E (as you require)
