- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25-years
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP425M-54H
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Keyword:
-

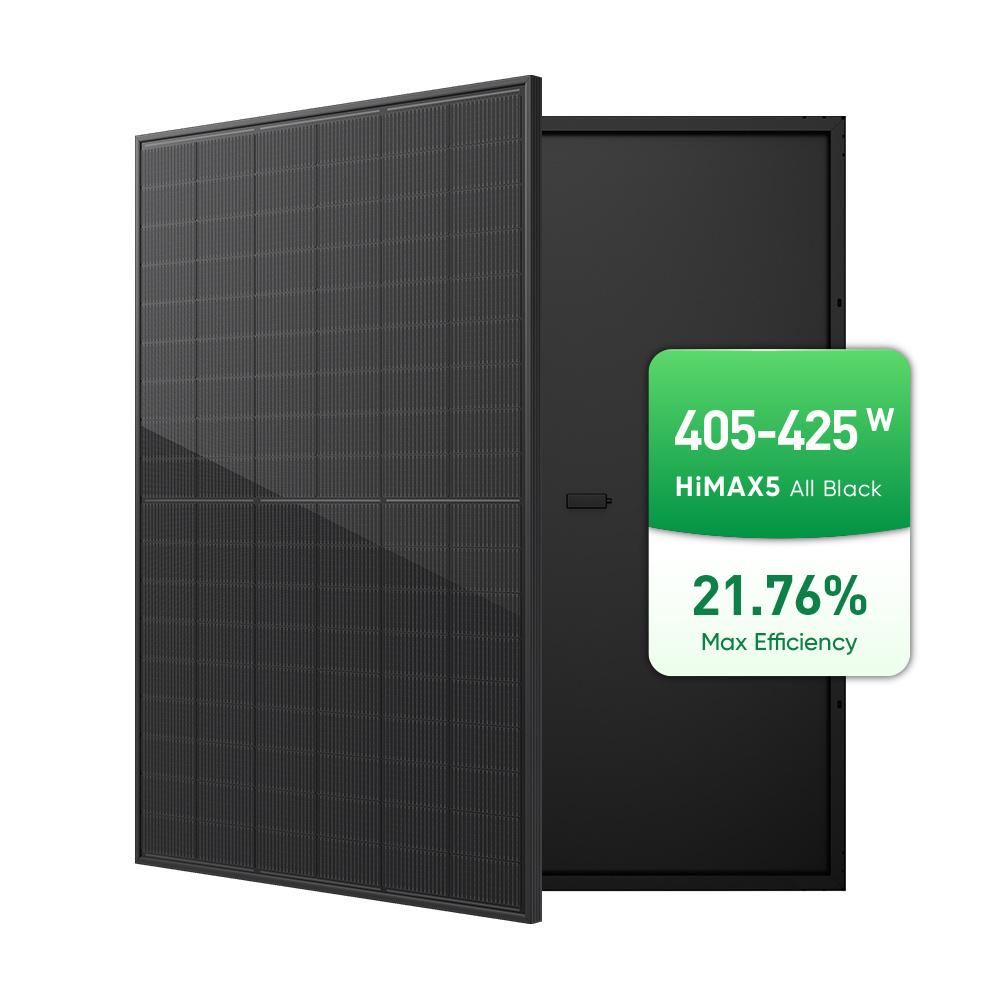

Half Cell All Black Mono Solar Panel
-
Solar cell:
-
A-grade
-
Application:
-
Solar Home System
-
Frame:
-
Black Anodized Aluminium Alloy
-
Cell Type:
-
Mono PERC Half Cell
-
Backsheet:
-
Black PCB Board
-
Number of Cells:
-
108 Cells (6x18)
-
Material:
-
Mono-crystalline Silicon
-
Color:
-
Full Black
-
OEM Order:
-
Accept Customized Solar Panel
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, All Black, HJT, N-TYPE, TOPCON
-
Panel Efficiency:
-
21.76%
-
Warranty:
-
25-years
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP425M-54H
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Keyword:
-
Half Cell All Black Mono Solar Panel
-
Solar cell:
-
A-grade
-
Application:
-
Solar Home System
-
Frame:
-
Black Anodized Aluminium Alloy
-
Cell Type:
-
Mono PERC Half Cell
-
Backsheet:
-
Black PCB Board
-
Number of Cells:
-
108 Cells (6x18)
-
Material:
-
Mono-crystalline Silicon
-
Color:
-
Full Black
-
OEM Order:
-
Accept Customized Solar Panel
Product Description
|
Maximum Power (Pmax/W)
|
405
|
|
410
|
415
|
|
420
|
|
425
|
|||||||
|
Open Circuit Voltage (Voc/V)
|
37.06
|
|
37.14
|
37.22
|
|
37.3
|
|
37.38
|
|||||||
|
Short Circuit Current (Isc/A)
|
13.85
|
|
13.92
|
13.99
|
|
14.06
|
|
14.13
|
|||||||
|
Voltage at Maximum Power (Vmp/V)
|
30.52
|
|
30.62
|
30.72
|
|
30.82
|
|
30.92
|
|||||||
|
Current at Maximum Power (Imp/A)
|
13.27
|
|
13.39
|
13.51
|
|
13.63
|
|
13.75
|
|||||||
|
Module Efficiency(%)
|
20.75
|
|
21
|
21.26
|
|
21.51
|
|
21.76
|
|||||||
|
Temperature Coefficient of Isc
|
+0.04%/°C
|
|
|
|
|
|
|
|
|||||||
|
Temperature Coefficient of Voc
|
-0.25%/°C
|
|
|
|
|
|
|
|
|||||||
|
Temperature Coefficient of Pmax
|
-0.34%/°C
|
|
|
|
|
|
|
|
|||||||
Certifications
Sunpal Marketing Department
Modularized fully automated production lines enable fast delivery and cost savings. To achieve high utilization rate and
efficiency, SunPal divided the whole production chain into separate but closely united automated production sectors. Over 40 patents are applied on production process optimization, which could effectively avoid manual errors and make sure all the production processes from raw material inspection to packing are all monitored online and saved for later use. This system ensures that the materials from the beginning of production to the packaging is all monitored online.
efficiency, SunPal divided the whole production chain into separate but closely united automated production sectors. Over 40 patents are applied on production process optimization, which could effectively avoid manual errors and make sure all the production processes from raw material inspection to packing are all monitored online and saved for later use. This system ensures that the materials from the beginning of production to the packaging is all monitored online.
Quality Control
Stringent quality control is the cornerstone of SunPal's manufacturing. Our customers have come to expect uncompromising quality standards in our products. To meet this expectation of high quality, we continue to invest in state-of-the art equipment and professional training of our employees . We are proud of our product quality and their reliable performance even in the most extreme conditions.
SunPal has received certifications for Quality Management System (ISO 9001:2015), Environment Management System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.
SunPal has received certifications for Quality Management System (ISO 9001:2015), Environment Management System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018) from both DNV GL and GZCC.
Solar Cell String EL Testing
Each solar PV cell string must be tested by EL machine to ensure every single solar cell is perfect.
Each Solar Module must be tested by EL machine before lamination to ensure every solar cell string is perfect.
Each Solar Module must be inspected by QC after lamination to ensure there is no defect during lamination.
Final EL Testing 100% ensure zero intenal electric defect for each solar module.
Output power testing ensure 100% positive power tolerance and excellent power performance.
Each Solar Module must be inspected by QC before packaging to ensure there is no defect during production process.
Product packaging
Sunpal Project Case
Utility Scale
Commercial
Residential
OEM & ODM Services
Get Free Quote Now
FAQ
A: What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What is your Delivery time?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately.
If you want to know more information, you can send inquiry to our team, we will cover more details.
B: Are you a factory or trading company?
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What is your Delivery time?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately.
If you want to know more information, you can send inquiry to our team, we will cover more details.
