Quick Details
-
Jacket:
-
PTFE fiberglass
-
Place of Origin:
-
China
-
Color:
-
brown or other color
-
Certificate:
-
BV CE SGS
-
Core:
-
2 Core 3Core
-
Product name:
-

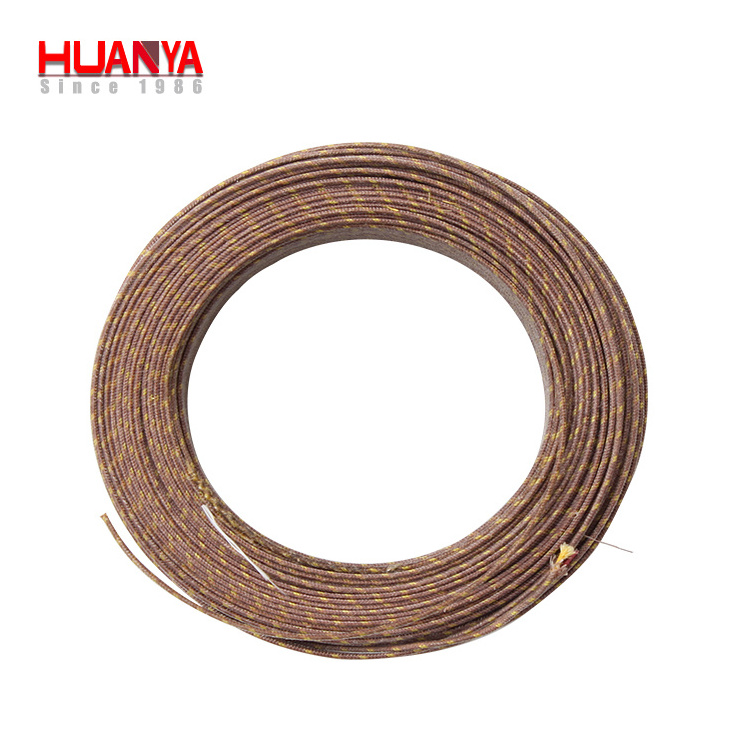

TT-K-30-SLE K thermocouple temperature measuring cable
Quick Details
-
Insulation Material:
-
PTFE fiberglass
-
Application:
-
measurment
-
Conductor Material:
-
NiCr-Nisi CU Fe CuNi
-
Jacket:
-
PTFE fiberglass
-
Place of Origin:
-
China
-
Color:
-
brown or other color
-
Certificate:
-
BV CE SGS
-
Core:
-
2 Core 3Core
-
Product name:
-
TT-K-30-SLE K thermocouple temperature measuring cable
Connect the sensor cable to the host, the instrument displays the temperature. T emperature measuring cable divided into analog and digital two. Generally by the temperature sensor, wire, tensile steel wire rope and sheath composition. The temperature measurement cable contains at least one temperature sensor. N number of temperature sensors can be set as required. Analog temperature cable is the sensor output is included in the analog signal, if there are N sensors, there are N + 1 core line; and data type temperature measurement cable is included in the sensor is a sensor chip, the output is Digital signals, regardless of the number of sensor chips, are only 2 or 3 cores. Temperature measurement cable generally have two kinds of appearance, a diameter of round; the other is flat, the sensor has a prominent protection section.
The temperature measuring cable can be connected with the corresponding auxiliary equipment to realize the computer remote monitoring point, large-scale temperature group and the change situation. It can be widely used in all kinds of warehousing, agriculture, fishery, mining preservation, environment, Control system of the signal sensing system.
Product Datasheet
|
Type |
K J T |
|
Temperature rang |
-200℃-260℃(PTFE) |
|
|
-200℃-500℃(fiberglass) |
|
Wire size |
24AWG 26AWG ... 28AWG 30AWG... |
|
Wire material |
Nickel chromium nickel silicon |
|
|
copper |
|
|
Iron copper nickel |
|
Color code |
N egative pole-red / positive-pole-yellow |
|
Application |
<![if !supportLists]> · <![endif]> laboratory shipping <![if !supportLists]> · <![endif]> petrochemical engineering <![if !supportLists]> · <![endif]> machinery
|
