Quick Details
-
Machine Weight:
-
1000 kg
-
Color:
-
Customer's Request
-
Engine:
-
Diesel Engine
-
Climbing ability:
-
40°
-
Wading depth:
-
30cm
-
Keywords:
-
Crawler Mini Dumper
-
Engine type:
-
Diesel Powered
-
Application:
-
Transport Cargo
-
MOQ:
-
1 Set
-
Carriage dimension:
-
227*115.7*45cm
Quick Details
-
Engine Brand:
-
Kohler
-
Power:
-
Other, 37 KW, 15.7 kw, 17.2 kw
-
Place of Origin:
-
China
-
Machine Weight:
-
1000 kg
-
Color:
-
Customer's Request
-
Engine:
-
Diesel Engine
-
Climbing ability:
-
40°
-
Wading depth:
-
30cm
-
Keywords:
-
Crawler Mini Dumper
-
Engine type:
-
Diesel Powered
-
Application:
-
Transport Cargo
-
MOQ:
-
1 Set
-
Carriage dimension:
-
227*115.7*45cm

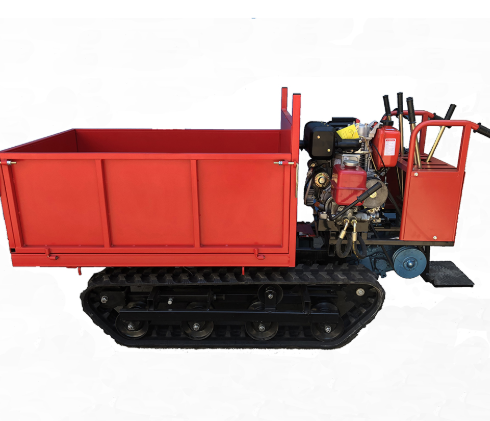

Diesel power crawler small truck dumper / mini dump truck
Small crawler transport vehicle can adapt to complex road conditions such as paddy fields, marshes, muddy field roads, rugged mountain roads, soft grasslands and deserts, slippery ice surfaces and snow, transport in agricultural orchards, freight yards, water conservancy construction, infrastructure projects, and mining sites are widely used.
|
Product model |
TDY-2 |
TDY-4 |
TDY-6 |
|
Overall weight |
1400kg |
330kg |
800kg |
|
Overall dimension |
3350*1560*1740mm |
2000*1000*1200mm |
2400*1200*1600mm |
|
Carriage dimension |
2200*1500*600mm |
1300*1000*380mm |
1400*1200*900mm |
|
Crawler dimension |
320*90*56mm |
150*72*37mm |
350*72*60mm |
|
ground contact length of track |
1950mm |
960mm |
1280mm |
|
Diesel engine power |
22kw |
6.8kw |
8.8kw |
|
Deadweight |
4000kg |
500-1000kg |
1500kg |
|
Max.level load |
3000kg |
1200kg |
2500kg |
|
Max.Slope Load |
2200kg |
800kg |
1800kg |
|
Max.walking speed |
12km/h |
13km/h |
12km/h |
|
Min.walking speed |
2.5km/h |
2km/h |
2.5km/h |
|
Climbing ability |
40° |
40° |
40° |
|
Wading depth |
45cm |
30cm |
45cm |
Main Feature of Crawler Dumper:
1. Wide application range, simple structure, stable transmission, easy operation and easy automatic control.
2. Applicable to complex road conditions such as swamps, river beaches, deserts, paddy fields, tropical rain forests, snow and ice.
3. The dynamic load and impact resistance, the rear axle and suspension are strengthened.
4. With power track, torque, start low speed, the tracked dumper is suitable working in the soft, potholes and geological condition.
5. Single-cylinder power system with low fuel consumption.
6. the traction is large, the climbing performance is good, and the transportation capacity is strong.
7. the turning radius is small, flexible, especially suitable for narrow sites, reducing the cost of building roads.
8. equipped with electric start, handle centralized, easy to operate.
9. It is equipped with hydraulic lifting and lowering, self-unloading, reducing labor intensity and improving transportation efficiency.
10. Braking performance is smooth, to avoid the impact of the dumper during the start-up, braking to reduce the damage of parts and improve the driver's comfort, so the tracked dumper adapt to a wider range of different road conditions.
Crawler dumper truck is a kind of special crawler vehicle, which is widely used in agriculture, mining, water conservancy and other large and medium projects, and is used for earth, rock, coal and other displacement work.
