Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
AOYUE
-
Warranty:
-
12 Months
-
Product name:
-
Tire Bead Breaker
-
Material:
-
Steel
-
Capacity:
-
10Ton
-
Rated working:
-
700bar
-
Max Open:
-
19cm
-
Tire Changer Grip Width:
-
10cm
-
Quantity of oil:
-
255cc
-
Weight:
-
28kg
-
Color:
-
Customer's Request
-
Quality:
-
High-Quality
Quick Details
-
Car Fitment:
-
ABG, OMC Tilt & Trim, AEBI, MAHINDRA RENAULT, AIFO, SAIC(VW)
-
Main Material:
-
Steel
-
Size:
-
55*30*30
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
AOYUE
-
Warranty:
-
12 Months
-
Product name:
-
Tire Bead Breaker
-
Material:
-
Steel
-
Capacity:
-
10Ton
-
Rated working:
-
700bar
-
Max Open:
-
19cm
-
Tire Changer Grip Width:
-
10cm
-
Quantity of oil:
-
255cc
-
Weight:
-
28kg
-
Color:
-
Customer's Request
-
Quality:
-
High-Quality
Products Description

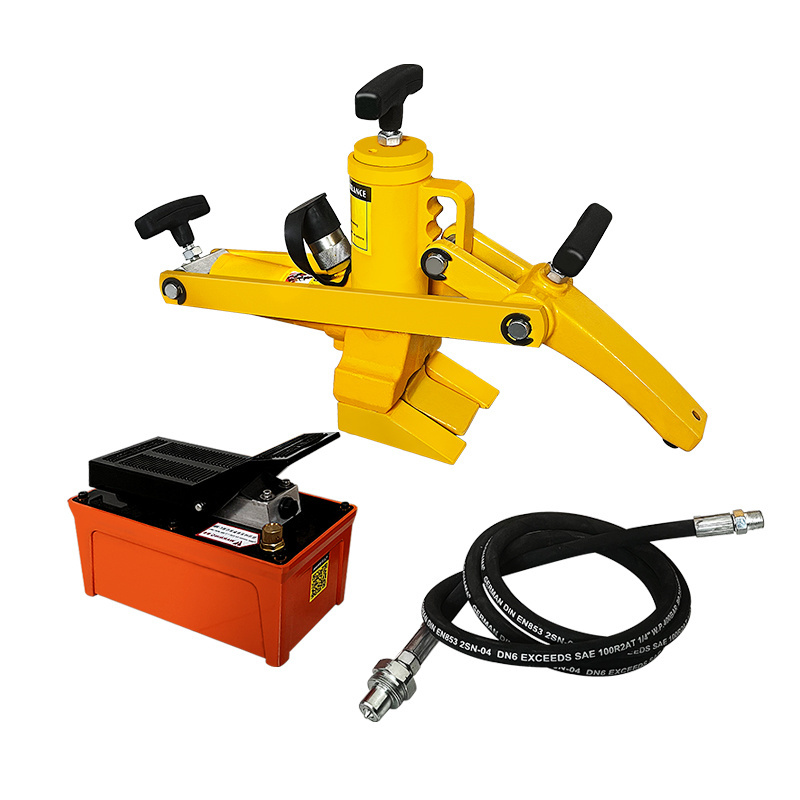

Factory Direct Sell Cheap Type Pneumatic Tire Removal Tool
10 Ton Manual Pneumatic Hydraulic Tire Bead Breaker
Description:
The bead breaker is used on all types of rims except 5-piece earthmover rims, activated by air hydraulic pumps.And it can be applied in any 1, 2 and most 3 piece 2-5-10 hole budd and all tubeless truck tires rims, including some new style wheels.
The working range of our bead breaker is up to 5'.Keep both hands on the handles and be away from the clamping jaw or breaker tongue.Do not continue to operate the air/ Hydraulic pump once the breaker rod is completely extended.Make certain that the tool is properly aligned on the rim before allowing the bead breaking action.Failure to comply with these instructions could result in personal injury or damage to the equipment.Make certain that the teeth are slipping in between the rim and the bead. If not,depress the RELEASE end of the pump pedal and realign the tool.
The optional air/hydraulic pump is capable of generating fluid pressure up to 10,000 PSI. It is ideal for use with truck, farm,tractor, garder, combine, and skidder tires. Caution: If the tool is not positioned correctly, extending the breaker rod may damage the tool. Continue pumping until the tongue of the Bead Breaker pushes the bead free of the rim. Depress the RELEASE end of the pump pedal.
The bead breaker is used on all types of rims except 5-piece earthmover rims, activated by air hydraulic pumps.And it can be applied in any 1, 2 and most 3 piece 2-5-10 hole budd and all tubeless truck tires rims, including some new style wheels.
The working range of our bead breaker is up to 5'.Keep both hands on the handles and be away from the clamping jaw or breaker tongue.Do not continue to operate the air/ Hydraulic pump once the breaker rod is completely extended.Make certain that the tool is properly aligned on the rim before allowing the bead breaking action.Failure to comply with these instructions could result in personal injury or damage to the equipment.Make certain that the teeth are slipping in between the rim and the bead. If not,depress the RELEASE end of the pump pedal and realign the tool.
The optional air/hydraulic pump is capable of generating fluid pressure up to 10,000 PSI. It is ideal for use with truck, farm,tractor, garder, combine, and skidder tires. Caution: If the tool is not positioned correctly, extending the breaker rod may damage the tool. Continue pumping until the tongue of the Bead Breaker pushes the bead free of the rim. Depress the RELEASE end of the pump pedal.
|
Product name
|
Tire Bead Breaker
|
|
Rated working
|
700bar
|
|
Max open
|
19cm
|
|
Tire changer grip width
|
10cm
|
|
Inlet pressure
|
700bar
|
|
GW
|
26kg
|
Specification
