Quick Details
-
Brand Name:
-
SOKEN
-
Model Number:
-
PS21-16
-
Name:
-
SOKEN double pole single throw garment steamer push button switch
-
Main material:
-
PA66
-
Function:
-
latching/momentary
-
Light:
-
Customized
-
Color:
-
Customized
-
Operation temp:
-
-25~85℃
-
Certificate:
-
CQC/TUV
-
Usage:
-
home appliance
-
Certification:
-
TUV
Quick Details
-
Max. Current:
-
16A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SOKEN
-
Model Number:
-
PS21-16
-
Name:
-
SOKEN double pole single throw garment steamer push button switch
-
Main material:
-
PA66
-
Function:
-
latching/momentary
-
Light:
-
Customized
-
Color:
-
Customized
-
Operation temp:
-
-25~85℃
-
Certificate:
-
CQC/TUV
-
Usage:
-
home appliance
-
Certification:
-
TUV

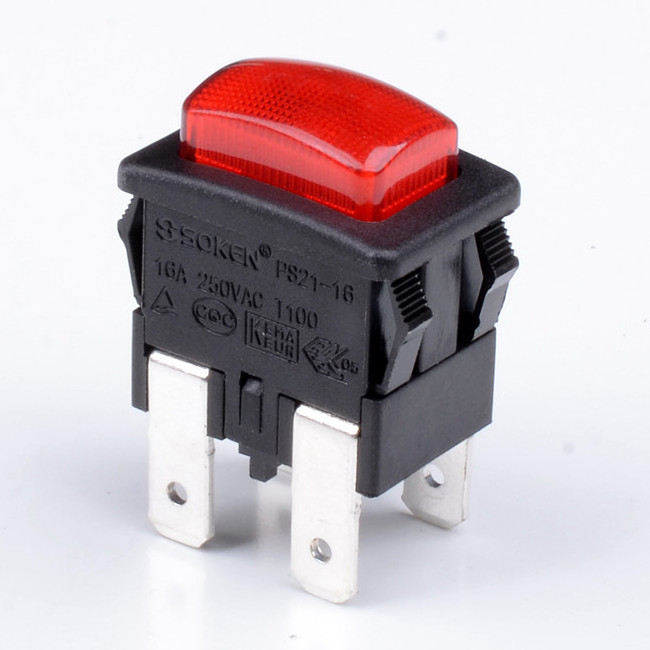

SOKEN double pole single throw garment steamer push button switch 250VAC PS21-16 2 pole
FUNCTION: LATCHING & MOMENTARY
Product Description
-
Specification
Rating
16A 250VAC (TUV) Operating
temperature
-25~85℃ Contact resistance 100mΩ Max Insulation resistance 100mΩ Min Electrical life 10000cycles Applicable standard IEC61058-1 -
Material list
Contact leg Brass T=0.8mm Contact Silver alloy Terminals Brass T=0.8mm Case PA66 Gear PA66 - Drawing
- Product display
Packaging & Shipping
Inner carton box+factory standard export carton box
QTY/CTN:1000pcs
SIZE/CTN: 53*18*42cm
G.W./CTN:17.5kg
