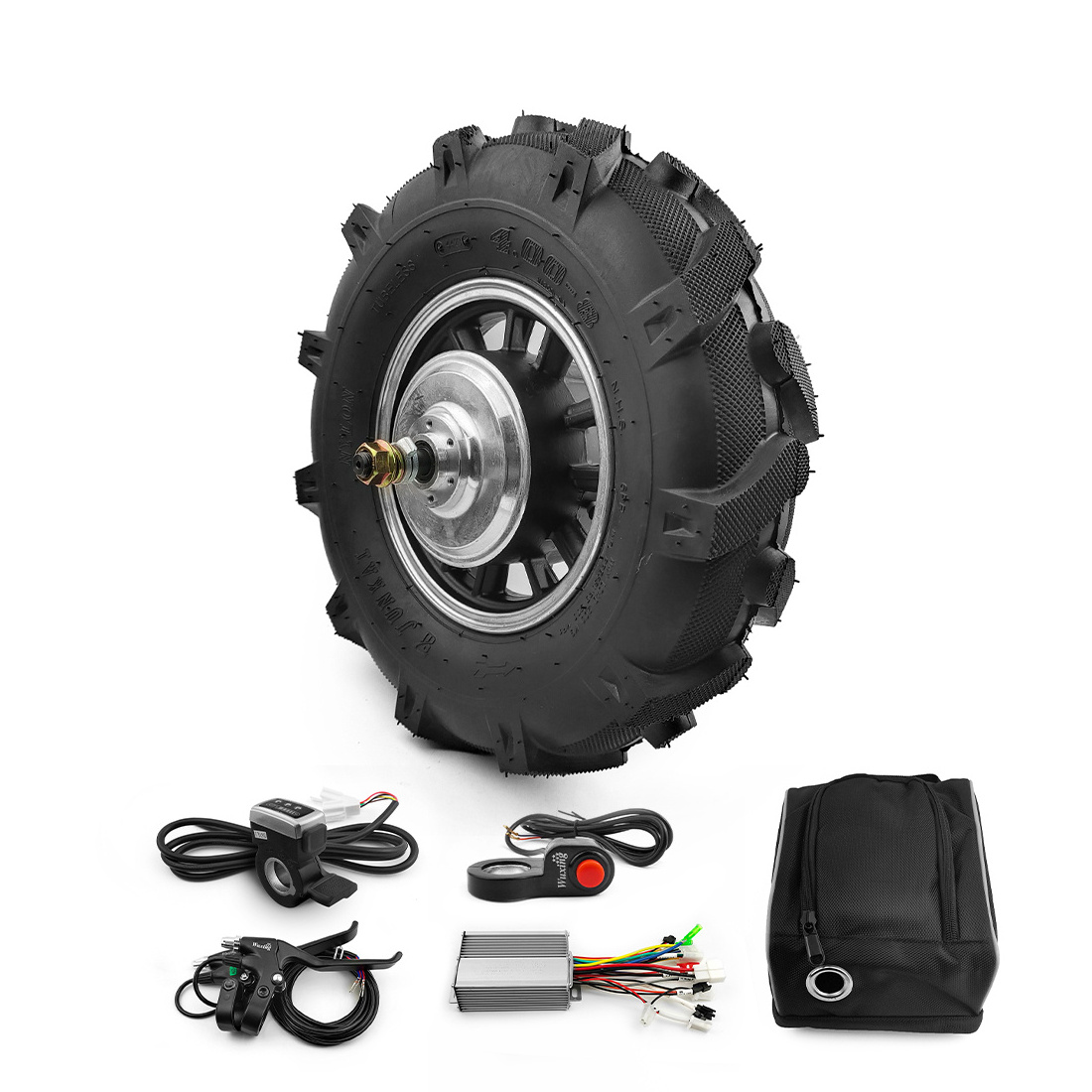

1). 1x 16 inch 500W brushless geared hub motor (with tire)
2). 1x Motor controller
3). 1x Thumb throttle (with battery indicator lights & button switch)
4). 1x Brake handle
5). 1x Red button switch (reverse)
6). 1x Bag
Note: this kit is without battery and battery charger.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
UU16
-
Brand Name:
-
l-faster
-
Application:
-
Scooter Bicycle Motorcycle
-
Speed:
-
6-12km/h
Quick Details
-
Voltage:
-
24V
-
Style:
-
Single wheel
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
UU16
-
Brand Name:
-
l-faster
-
Application:
-
Scooter Bicycle Motorcycle
-
Speed:
-
6-12km/h
Product Description
Motor: 16 inch brushless wheels (tire 16*4.0-8)
Hall sensor: 5 Hall wires
Brake: Disc brake
Tires: Inflatable inner and outer tubes
Turbine wheel size (wheel): 8 inches
Maximum torque: 30-60 N.M (maximum torque tested at 48v 30A controller)
Rated power: 500W (peak 800W)
Normal speed: 24v 6km/h, 36v9km/h, 48v12km/h
Maximum current: 25-30A
Gear transmission ratio: 1:5
Number of pole pairs: 10 pairs
Load capacity: 300kg
Tire diameter: 400 mm
Hall sensor: 5 Hall wires
Brake: Disc brake
Tires: Inflatable inner and outer tubes
Turbine wheel size (wheel): 8 inches
Maximum torque: 30-60 N.M (maximum torque tested at 48v 30A controller)
Rated power: 500W (peak 800W)
Normal speed: 24v 6km/h, 36v9km/h, 48v12km/h
Maximum current: 25-30A
Gear transmission ratio: 1:5
Number of pole pairs: 10 pairs
Load capacity: 300kg
Tire diameter: 400 mm
The Brake lever kit includes:
Specification
|
item
|
value
|
|
Voltage
|
24V
|
|
Design
|
Brushless
|
|
Style
|
Single wheel
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Model Number
|
UU16
|
|
Brand Name
|
l-faster
|
|
Design
|
Brushless Geared
|
|
Application
|
Scooter Bicycle Motorcycle
|
|
Speed
|
6-12km/h
|
