Quick Details
-
Function:
-
Backup Power,Peak shaving,
-
Battery Capacity:
-
350kWh-1000kWh
-
Installation Site:
-
Outdoor
-
Grid Type:
-
Hybrid support
-
Production Level:
-
IP65
-
Color:
-
Customized
-
Use life:
-
10 years
-
PCS Power:
-
300kW-1MW
-
Application:
-
Energy Storage System
-
Output Voltage:
-
380V/400V/415V
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Ecube
-
Model Number:
-
ZESS-350K
-
Function:
-
Backup Power,Peak shaving,
-
Battery Capacity:
-
350kWh-1000kWh
-
Installation Site:
-
Outdoor
-
Grid Type:
-
Hybrid support
-
Production Level:
-
IP65
-
Color:
-
Customized
-
Use life:
-
10 years
-
PCS Power:
-
300kW-1MW
-
Application:
-
Energy Storage System
-
Output Voltage:
-
380V/400V/415V
Products Description
Bess Solar Battery Energy Storage System For 1mwh 500kwh Off grid Solar Pv Power System Supply

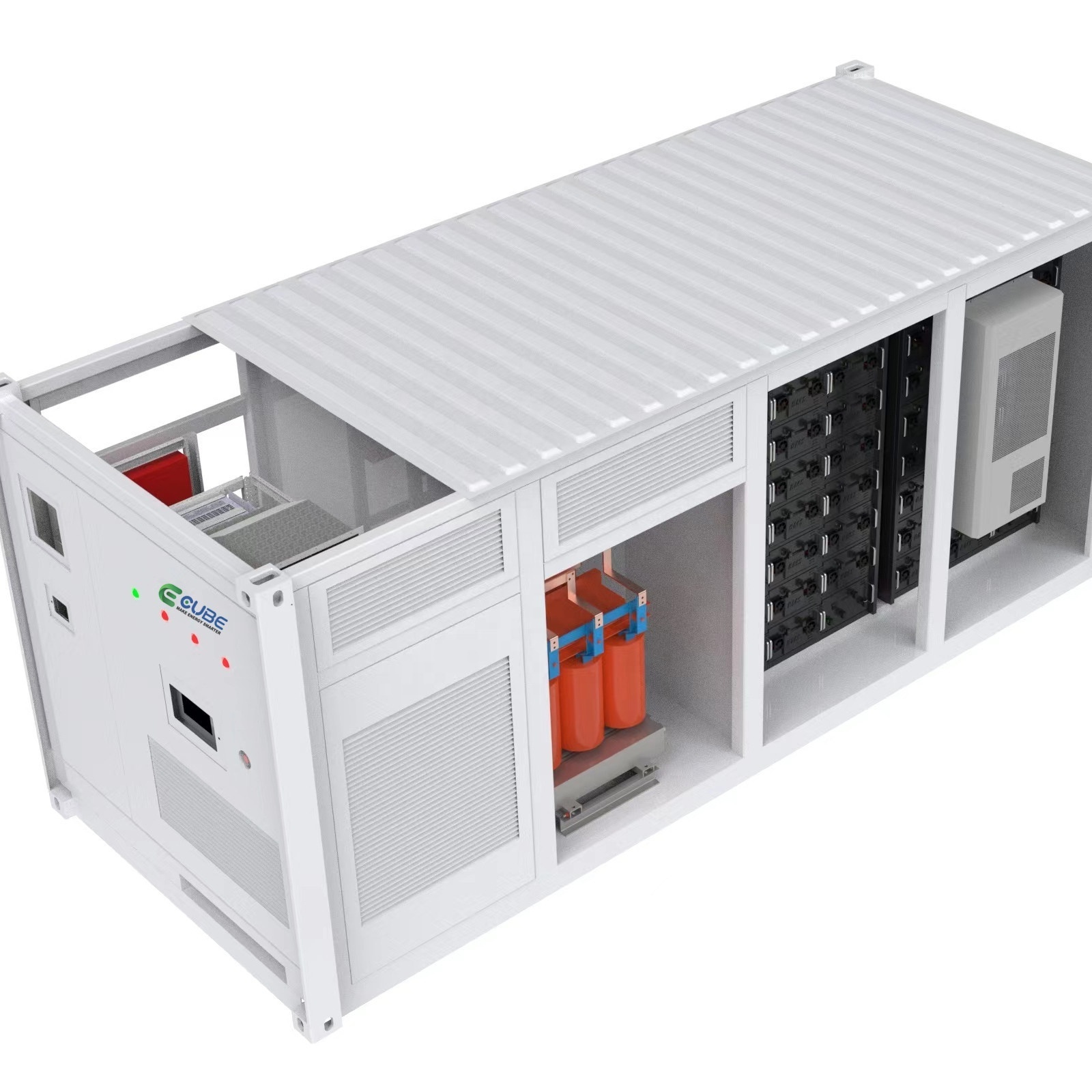

ECUBE Battery Container energy storage system (BESS) is an integrated energy storage system developed for the needs of mobile energy storage market. It integrates battery cabinets, battery management system (BMS) and monitoring system, and also integrate energy storage converter and energy management system(EMS) against customer needs. Container energy storage system has the characteristics of simplifying infrastructure construction cost, short construction cycle, high degree of modularization,convenient transportation and installation, and can be applied to thermal power, wind energy, solar power and other power stations or islands, communities, schools, scientific research institutions, factories, large load centers and other applications,can be used for back up power,peak shaving,energy storage etc.
The ECUBE battery system selects the top performance cells in the international market to meet the needs of customers in different application scenarios. The battery module, bi-directional active equalization (BMS) battery management system and electrical protection components are mainly installed inside. Cabinet structure is scientific, mechanical strength is high, module installation and maintenance is convenient, and the overall structure ensures the reliability and safety of the system to the greatest extent, while achieving beautiful appearance. The system is equipped with a visual human-computer interface, which can monitor the operation status of the system and the status of the single electric cell in real time.
The ECUBE battery system selects the top performance cells in the international market to meet the needs of customers in different application scenarios. The battery module, bi-directional active equalization (BMS) battery management system and electrical protection components are mainly installed inside. Cabinet structure is scientific, mechanical strength is high, module installation and maintenance is convenient, and the overall structure ensures the reliability and safety of the system to the greatest extent, while achieving beautiful appearance. The system is equipped with a visual human-computer interface, which can monitor the operation status of the system and the status of the single electric cell in real time.
Product Paramenters
|
|
ZESS-600K-300
|
ZESS-800K-400
|
ZESS-1000K-500
|
ZESS-2000K-1000
|
||||
|
Battery Parameter
|
|
|
|
|
||||
|
Battery Type
|
Lithium iron phosphate
|
|
|
|
||||
|
Cpacity
|
768V/645kWh
|
768V/860kWh
|
768V/1075kWh
|
768V/2150kWh
|
||||
|
Charge/discharge Rate
|
0.5C/0.5C
|
|
|
|
||||
|
Work Temperature
|
-20～55℃(>45℃ derating)
|
|
|
|
||||
|
Cycle life time
|
25℃ 0.5C/0.5C 100%DOD EOL80% ≥6000s
|
|
|
|
||||
|
AC Parameter（Grid Connect）
|
|
|
|
|
||||
|
Rated output power
|
300kW
|
400kW
|
500kW
|
1000kW
|
||||
|
Rated grid voltage
|
3W+N+PE, 380V/400V
|
|
|
|
||||
|
Rated grid frequency
|
50Hz/60Hz
|
|
|
|
||||
|
AC parameters (off grid)
|
|
|
|
|
||||
|
Rated output power
|
300kW
|
400kW
|
500kW
|
1000kW
|
||||
|
Rated grid voltage
|
3W+N+PE, 380V/400V
|
|
|
|
||||
|
Rated grid frequency
|
50Hz/60Hz
|
|
|
|
||||
|
General Parameter
|
|
|
|
|
||||
|
Cooling
|
Air conditioner
|
|
|
|
||||
|
Fire fighting system
|
Included
|
|
|
|
||||
|
EMS
|
Optional
|
|
|
|
||||
Configuration
PCS Power Converter System
The multi-functional bi-directional converter can realize the bi- directional conversion from DC to AC and from AC to DC. It can not only convert AC into DC to charge the battery, but also convert DC into AC to supply power to the load or feed back to the grid. The system adopts advanced digital control technology, which optimizes the control performance and improves the reliability of the system. It can realize seamless switching between grid-connected discharge, grid -connected charging and off grid operation modes.
Lithium Battery Rack/System
1.The cabinet adopts frame structure, and the connections between battery packs are connected by power lines, and the high and low voltage and signal lines are connected by unique connectors
2.The structure is safe and reliable, and should have enough mechanical strength to ensure that the components are not shaken and deformed after installation and during operation.
3.Battery cabinet design fully consider electrical clearance and creepage distance.In the design of electrical gap and creepage distance, the working voltage, over voltage, pollution level and insulation materials of the system are fully considered.
Battery system Container
The container is mainly composed of double-layer insulation system, monitoring system, fire protection system, access control system, construction wiring of lighting
system,equipment frame and other load-bearing frame and bridge;Can be added to the ceiling, reserved ceiling and box link fixed installation location, bulk design, on-site
assembly;The equipment is installed on the load bearing frame, which is installed (welded) on the steel bottom plate, and the fixed installation position of the monitoring
camera can be reserved.
Products Photos
Product packaging
Battery Rack Packed by wooden carton
Battery Modules packed by UN standard package.
