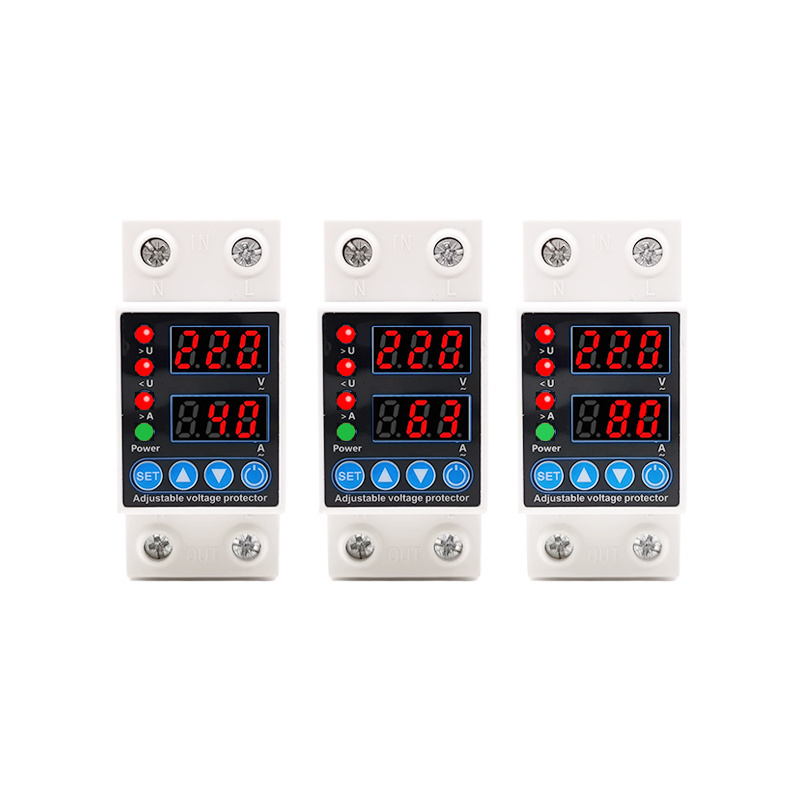

AVP 2P 4P Single phase 40A 63A 80A Ac DC Over Under Voltage Protector Adjustable THREE PHASEVOLTAGE & CURRENT PROTECTOR 100A

KYAVP series intelligent adjustable self-compound over-under-voltage protector (hereinafter referred to as the protector) is another high-tech new product developed according to market demand using the latest technology. When the power supply line over-voltage, under-voltage, the protector can be sustained high-voltage impact quickly and safely cut off the circuit, to avoid abnormal voltage into the terminal electrical equipment caused by the occurrence of accidents, when the voltage returns to normal value, the protector will automatically turn on the circuit within the specified time, to ensure that the terminal electrical equipment in the case of unattended normal operation. The protector is suitable for users or loads with single-phase AC voltage of 220V/110V, frequency of 50H2 and rated working current of 60A and below. As a neutral line fault caused by the single-phase line under-voltage protection of single-phase electrical equipment. It is mainly used for the protection of the incoming line of the residential household box or the distribution line that needs to protect the single-phase electrical equipment.

Product Features

1. Cut off the line when the single-phase line is under voltage, and the single-phase line voltage returns to normal after delay, and automatically reset and connect the line without manual operation.

2. When transient or transient overvoltage occurs on the line, the protector will not cause malfunction.

3. When the voltage of the line is unstable due to faults such as false contacts, or when the line is suddenly cut off and suddenly comes into a call, the protector does not connect the line.

When the line fault voltage is the highest, the protector itself will not be damaged.

5. Voltage protection range: 0300V below 0A, 50/60A : 0600V

6, withstand impulse voltage: 4kV (in line with the safety standards of Class I electrical appliances).

7. The protector has two-color light-emitting diodes to indicate the working status, green 1 normal voltage indication, and red 1 over-under-voltage or delay indication

8. The protector adopts intelligent adjustable design, which can set the current and voltage range by itself.

9. The current and voltage of the protector are more clearly displayed by digital display.

8. The product has compact structure and modular design, and is installed in parallel with (C45).
