Outdoor Solar Sun flower Photovoltaic Power panel Generation storage System Battery) Smart Sunflower panel
Outdoor Solar Sun flower Photovoltaic Power panel Generation storage System Battery) Smart Sunflower panel
Outdoor Solar Sun flower Photovoltaic Power panel Generation storage System Battery) Smart Sunflower panel
Outdoor Solar Sun flower Photovoltaic Power panel Generation storage System Battery) Smart Sunflower panel
Outdoor Solar Sun flower Photovoltaic Power panel Generation storage System Battery) Smart Sunflower panel
Outdoor Solar Sun flower Photovoltaic Power panel Generation storage System Battery) Smart Sunflower panel
Outdoor Solar Sun flower Photovoltaic Power panel Generation storage System Battery) Smart Sunflower panel
Outdoor Solar Sun flower Photovoltaic Power panel Generation storage System Battery) Smart Sunflower panel

Outdoor Solar Sun flower Photovoltaic Power panel Generation storage System Battery) Smart Sunflower panel

FOB Reference Price: Get Latest Price
≥2 Sets
US $10986
≥10 Sets
US $9999
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power capacity:
14.4~18Kw.h
Storage capacity:
2.4kWh/5kWh/10kWh
Load Power:
2.4kW±5% / 2.6kW±5%
Efficiency:
> 90% in 10 years
Rated output voltage:
110-220V
Work Time:
≥20Years
Solar Panel Type:
Monocrystalline Silicon
Controller Type:
MPPT
Panel Dimensions:
1440*1300*2710
Net Weight:
794KG

Quick Details

Place of Origin:
Guangdong,China
Brand Name:
Smart Sunflower
Model Number:
ZHCD-GZS
Power capacity:
14.4~18Kw.h
Storage capacity:
2.4kWh/5kWh/10kWh
Load Power:
2.4kW±5% / 2.6kW±5%
Efficiency:
> 90% in 10 years
Rated output voltage:
110-220V
Work Time:
≥20Years
Solar Panel Type:
Monocrystalline Silicon
Controller Type:
MPPT
Panel Dimensions:
1440*1300*2710
Net Weight:
794KG
Product Paramenters
Specifications of solar modules
Item
1.4KW
2.6KW
System Power
1.45KW±5%
2.6KW±5%
Power Capacity
7-9kW·h
14.4-18kW·h
Product size (expanded)
4000*4000*4000mm
5000*5000*5000mm
Product size (Closure)
1030*1330*2170mm
1440*1330*2170mm
Storage capacity
2.4kWh/5kWh/10kWh
2.4kWh/5kWh/10kWh
Net Weight
650KG
794KG
Structure
Triple Axis Tracking
Efficiency
> 90% in 10 years
Rated output voltage
110-220V
Work Time
≥20Years
Solar Panel Type
Monocrystalline Silicon
Controller Type
MPPT
Operating mode
On-Grid Solar System /Off-Grid Solar System/Hybrid Solar System
Working Temp
-20~65℃
Wind Proof
7 near gale:17.1m/s
Water Proof
IP55
Installation
Installation with the foundational bolt or on the concrete base
Advantage

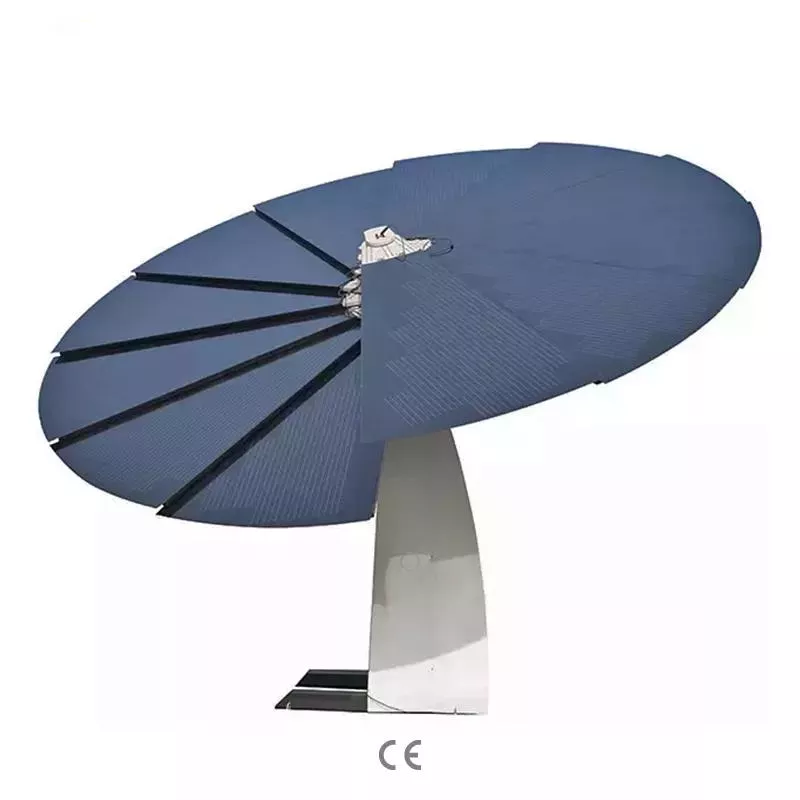

*Beautiful And Novel. Sunflower bionic design, suitable for a variety of application scenarios.
*Long Service Life. The service life can reach more than 20 years.
*All-in-one. An integrated solar power generation system composed of 12 monocrystalline silicon solar panels, tracking
system,inverter, and energy storage battery.
*High efficiency of power generation. Using a real-time solar tracking system to achieve the most efficient power generation. The efficiency of photovoltaic power generation decreases with the increase of ambient temperature. When the temperature increases by 10°C, the power generation efficiency decreases by 5%. Sunflower rear-mounted heat dissipation modules, heat cannot be collected due to the structure, which means that they are 10°~15°C cooler than the roof system, and the power generation is increased by 5-10%.
*Safe Monitoring. Keep safe and stable startup at -20°C; prevent wind and snow, sensor monitoring wind speed; one-key startup;solar real-time tracking system; automatic folding of blades; automatic cleaning.
*Easy To Install. Flexible choice of installation location and convenient transportation; one-time hoisting saves labor costs.
*Wide Range Of Applications. It can be used in commercial exhibitions, home furnishings,hotels, exhibitions, power companies,national grids, parks, smart parks, rural construction, educational institutions, schools,etc.
*Built-in Energy Storage(Optional). Sunflower can be built-in inverter, lithium battery, leakage protection function, and support grid-connected and off-grid system.
*Efficient Power Generation Capacity. The annual average power generation can reach 10Kwh/day, preferably 14Kwh/day.
*Energy Storage. Lithium battery can be configured to store the electric energy generated during the day in the battery to supply power for household loads.
Product Description
Composition
Solar module：
Convert solar energy into DC power, charge the battery through the all-in-one machine, or directly convert it into AC power to supply power to the load.
Energy storage battery:
When the solar energy is insufficient and there is no commercial power, the energy storage battery ensures the normal power consumption of the system load.
Inverter：
Energy conversion device.
Commercial power or generator:
Connected to the AC input, it can supply power to the load and charge the battery at the same
time.If it is not connected to the commercial power or generator, the system can also run normally. At this time, the load power supply is provided by the battery and solar modules.
