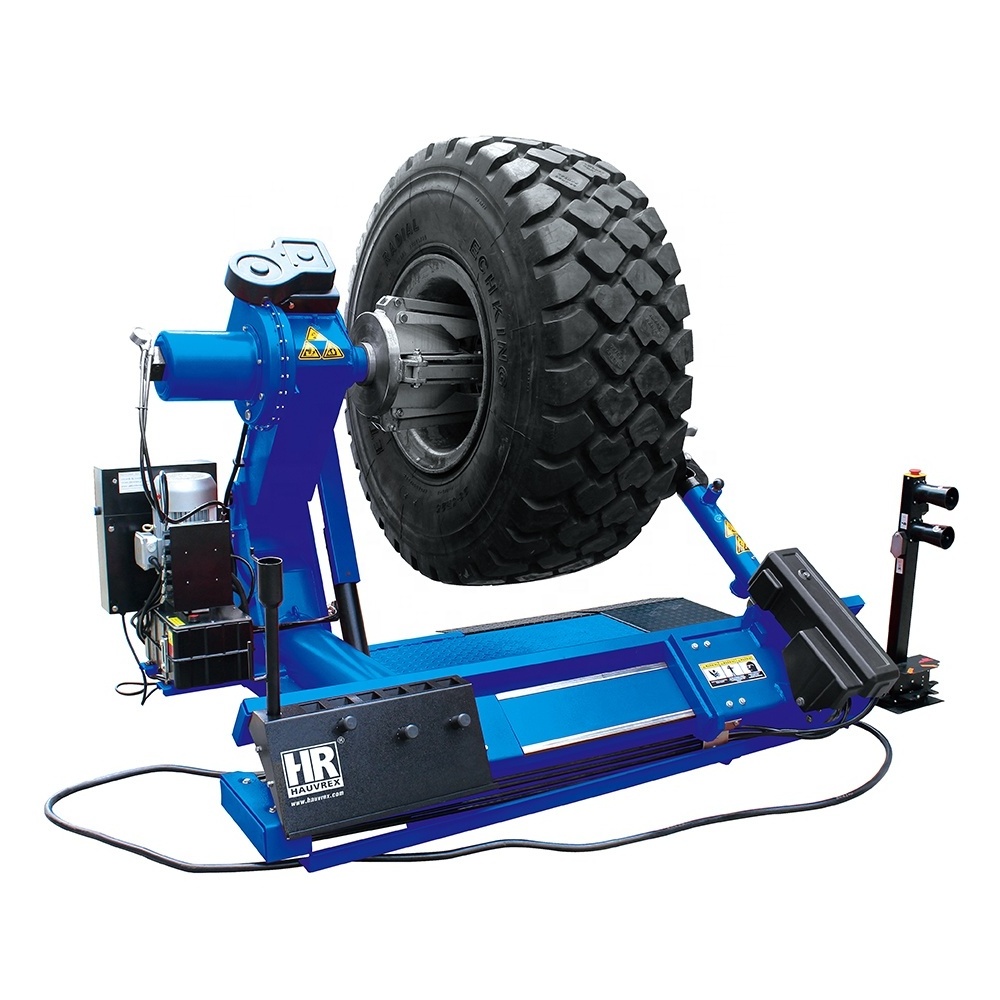

HC8970 | Electro-hydraulic Truck Tyre Changer
♦ Electro-hydraulic, universal and automatic tyre changer for truck, bus, tractor, agricultural and earth moving equipment tyres from 14" to 56".
♦ Super-duty electric motor and hydraulic drive for superior torque and wheel holding power.
♦ Simple controls and positionable unit console lets the operator safely monitor the tire-changing process from the most advantageous angle.
♦ Hydraulically operated universal self-centering chuck clamps rims from 14" to 56" either on the inside or through the center hole ensures clamping of virtually all rims and off-load style wheels.
♦ Hydraulic sled carriage for positioning, bead loosening, mounting and demounting procedures.
♦ Simultaneous movement of chuck carrier and tool holding arm speeds up true handling time.
♦ Automatically controlled tool rotation makes it possible to use either the demount/mount head or the bead breaking roller without time consuming and laborious manual tool changing.
♦ The action of the tool holding arm to the “no work” position and the traverse from one side of the wheel to the other is fully automated.
♦ The clamping chuck rotates in both direction and at two different speeds.
♦ With pressure gauge for monitoring the hydraulic pressure.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hauverx, Hauvrex
-
Model Number:
-
HC8970
-
Warranty:
-
12 Months
-
Style:
-
Economical
-
Color/Logo:
-
Customized
-
Clamping Range:
-
14"~56"
-
Voltage:
-
380v
-
CE:
-
Yes
-
Beadbreaking Force:
-
2700kg
-
Max.tire weight:
-
2000kg
-
Usage:
-
Tire Repairing
-
Package:
-
Wooden Box
Quick Details
-
Motor Power:
-
1.5kw
-
Operating Pressure:
-
130bar
-
Power Supply:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hauverx, Hauvrex
-
Model Number:
-
HC8970
-
Warranty:
-
12 Months
-
Style:
-
Economical
-
Color/Logo:
-
Customized
-
Clamping Range:
-
14"~56"
-
Voltage:
-
380v
-
CE:
-
Yes
-
Beadbreaking Force:
-
2700kg
-
Max.tire weight:
-
2000kg
-
Usage:
-
Tire Repairing
-
Package:
-
Wooden Box
Product Description
Technical Features
Technical Specification
|
56" Electro-hydraulic Truck Tyre Changer
|
|
|
|
Tyre Changer model
|
HC8970
|
|
|
Clamping Range
|
14"~56"
|
|
|
Max. Wheel Diameter
|
2500mm
|
|
|
Max. Wheel Width
|
1200mm
|
|
|
Max. Tire Weight
|
2000kg
|
|
|
Beadbreaking Force
|
2700kg
|
|
|
Operating Pressure
|
130 bar
|
|
|
Power Supply
|
380V/50Hz/3Ph
|
|
