China Large Scale Maize Straw Grinding Machines Maize Stalk Forage Hay Bales Tub Grinders

China Large Scale Maize Straw Grinding Machines Maize Stalk Forage Hay Bales Tub Grinders

FOB Reference Price: Get Latest Price

≥1 Sets

US $28500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Dimension(L*W*H):: 6500*3200*3200mm

Weight:: 5500 kg

Color:: RED

Motor drive power:: 90kw

Tractor drive power:: 90-180hp

Crushed length:: 30-200mm

PTO speed:: 1000/ r-min

Tub Diameter:: 2.3m

Production efficiency:: 3-15T / Hay

Screen mesh Thickness:: 6 mm

Customized:: Available

Quick Details

Max. Capacity:: 15 ton/h

Place of Origin:: China

Brand Name:: GENGZE

Voltage:: 380V

Dimension(L*W*H):: 6500*3200*3200mm

Weight:: 5500 kg

Color:: RED

Motor drive power:: 90kw

Tractor drive power:: 90-180hp

Crushed length:: 30-200mm

PTO speed:: 1000/ r-min

Tub Diameter:: 2.3m

Production efficiency:: 3-15T / Hay

Screen mesh Thickness:: 6 mm

Customized:: Available

Alibaba verified supplier

GENGZE-Alibaba Verified Golden Supplier

Product Description

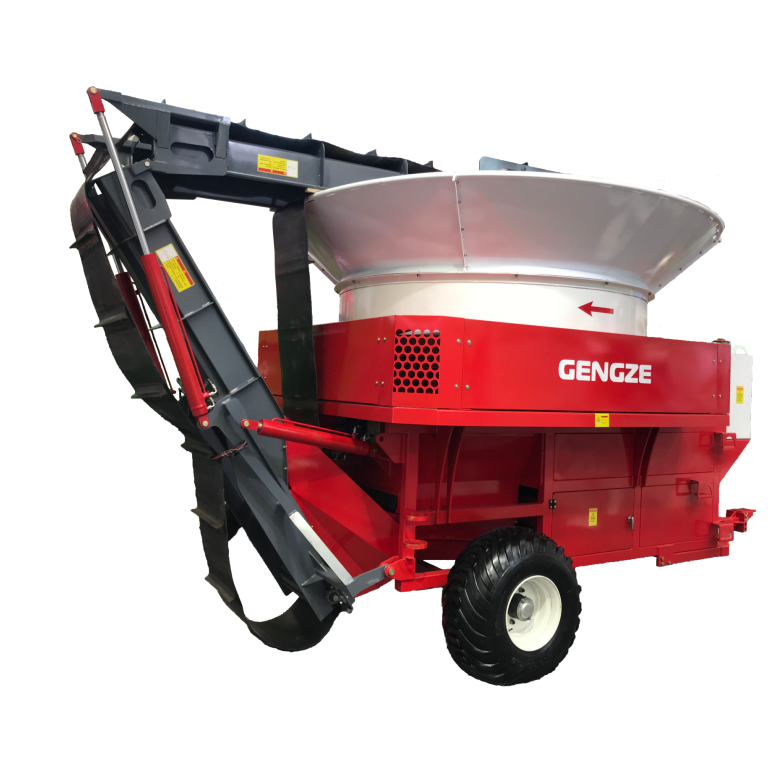

China Large Scale Maize Straw Grinding Machines Maize Stalk Forage Hay Bales Tub Grinders are built up to treat any kind of straw or hay bale in tough situation. When the pasture covered by the heavy snow, or short of fresh hay, our tub grinder for hay can solve the problem. The large amount of bales, piles of feed can be treated and they will become the most palatable feed. Grinding the poorer quality hay is the most efficient and cost less way to feed the cattle. China Large Scale Maize Straw Grinding Machines Maize Stalk Forage Hay Bales Tub Grinders

Crushed materials : herbage, rice straw, oat grass, alfalfa, corn straw, rape straw, wheat straw, weeds, etc.
Crushed grains: corn kernels (high moisture content), corn cobs, etc.
Crushed shape : round bale, square bale, loose herbage.
Crushed length : 30-200mm China Large Scale Maize Straw Grinding Machines Maize Stalk Forage Hay Bales Tub Grinders

China Large Scale Maize Straw Grinding Machines Maize Stalk Forage Hay Bales Tub Grinders
_Model	China Large Scale Maize Straw Grinding Machines Maize Stalk Forage Hay Bales Tub Grinders
_{LWH (mm)}	6500x3200x3200
_{Weight (kg)}	5300kg
Rotor hammer mill	Fly hammer: 64 Fly hammer shaft: 8 Bearing: SKF Drive: PTO
Combined power	Tractor drive: 90-180 HP Motor drive: 90-150 kw PTO speed: 1000/ r-min
Screen mesh	Thickness: 6 mm Diameter of hole :6 mm-125 mm
Drum/Tub	Outside width: 3.2m Inside Dia: 2.3m
Screw pusher	Type: bi-column symmetric Length: 1150mm
Discharging conveyor	Type: folding hydraulic drive; Maximum lifting height: 4.19 m; Belt: Rubber

Grinding Effect Display

Detailed Images

Our machine owns the same hammer set as the most famous brand in the world, however, they are more durable and competitive than them. The unique carbide grit hammers can be used for a longer period

Eight belts drives the machine dependable ,which supplies the power from PTO of a tractor to the whole system , so that the perfect grinding effect comes out in smooth way.

Electrical governor mounded on the machine , which control the stability of power outlet, adjust the tub speed. Also the tub rotating direction, stop is controlled by it.

Tub tilt tub mounded on a platform for easy access to the hammers set and daily maintenance and easy screen changing.

The conveyor with boom, which is folding type , the highest level is 3.6 meters. Whatever pile it is , it can meet your requirement.

Simple operation of hydraulic valves and pipe mounded on the bale processors. Also the the cylinders driven by hydraulic allow the boom with conveyor folding at at a ideal position.

Double helical pusher on the machine allow the material discharged well to the conveyor.

The agricultural tires make sure the better mobility

A working standing position with protection chain

Packing&Delivery

L*W*H: 6.5*3.2*3.2m
Weight: 5300KG
China Large Scale Maize Straw Grinding Machines Maize Stalk Forage Hay Bales Tub Grinders

Our equipment are all large scale, so normally would be delivered with full container load.

China Large Scale Maize Straw Grinding Machines Maize Stalk Forage Hay Bales Tub Grinders

The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.
China Large Scale Maize Straw Grinding Machines Maize Stalk Forage Hay Bales Tub Grinders
The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
