Quick Details
-
Dimension(L*W*H):
-
according to the model
-
Weight:
-
7000 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Low cost 25tph capacity jaw crusher machine granite stone
-
Max feeding size:
-
350mm
-
Discharge size:
-
40-90mm
-
Raw material:
-
Stones Rocks Ores
-
Spare parts supply:
-
Anytime
-
Test&Installation:
-
Under Enginees Guidence
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
Quick Details
-
Application:
-
stone crushing
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SPOM
-
Dimension(L*W*H):
-
according to the model
-
Weight:
-
7000 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Low cost 25tph capacity jaw crusher machine granite stone
-
Max feeding size:
-
350mm
-
Discharge size:
-
40-90mm
-
Raw material:
-
Stones Rocks Ores
-
Spare parts supply:
-
Anytime
-
Test&Installation:
-
Under Enginees Guidence
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO

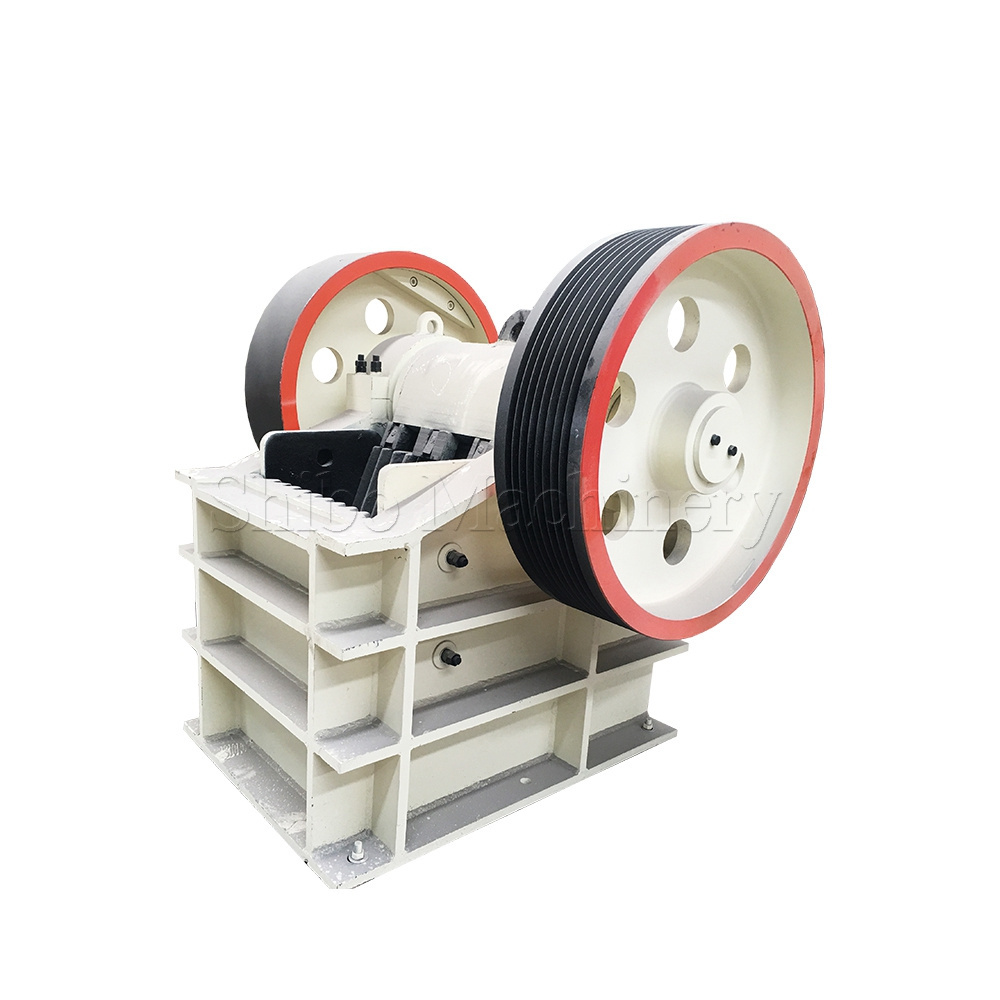

Low cost long service life 25tph capacity jaw crusher machine granite stone
Product Overview
Jaw crusher is the primary crushing equipment in the crushing production line, it's used to crush the large stone (300-1200mm) into medium size (100-200mm), and the fine type jaw crusher can produce 0-40 mm aggregate, the production capacity range of different model is from 1-1200 ton per hour. We have
primary jaw crusher
and
fine secondary jaw crusher
with different models and capacities for sale.
There are two series of jaw crusher, including
PE series
and
PEX series
.
1. The hot-sale models of PE series are PE 400*600, PE 500*750, PE 600*900, PE 750*1060, PE 900*1200, etc.
2. The popular PEX series are PEX 150*750, PEX 250*1000, PEX 250*1200, etc.
3.
5-30t/h,
30-50t/h ,60-80t/h, 80-100t/h, 100-150t/h, 150-200t/h, 200-300t/h are the popular production capacity chosen by our customers.
4. Small, medium and larges-sized models are in stock now.
5. The output size can reach 10mm-300mm, and we can adjust the output size according to the customers' requirement.
Our jaw crusher is made of high manganese steel, has very high wear resistance, which can extend the service life of wearing parts and help customers reduce costs. The machine body and the welding area are polished very smoothly, and the painting is also very uniform, so the overall appearance of the machine is very beautiful. If you buy our machine, we can give you a 5% discount of the spare parts.
Our Advantages
1. Factory-direct sale, guaranteed quality with competitive price, saving costs.
2. High crushing efficiency, adjustable final size, reliable performance, easy maintenance.
3. High quality spare parts, long lifetime, full service system.
Product Application
Jaw crusher can be used for crushing of over 120 kinds of stones, such as granite, gravel, aggregate, rock, boulder, basalt, quartz, etc. It can be used for primary secondary fine crushing, different final output size, meeting your different needs.
Our products have been exported to over 90 countries all over the world, well received by our customers.
Product Paramenters
|
Model
|
Feeding Size(mm)
|
Discharge Size (mm)
|
Capacity(t/h)
|
Motor Power(kw)
|
Overall Dimension(mm)
|
|
PE150×250
|
≤130
|
15-45
|
1-4
|
5.5
|
896×745×935
|
|
PE250×300
|
≤150
|
15-55
|
3-6
|
7.5
|
1050×987×1000
|
|
PE250×400
|
≤210
|
25-60
|
5-20
|
15
|
1215×1520×1030
|
|
PE400×600
|
≤350
|
40-90
|
15-60
|
30
|
1650×1588×1050
|
|
PE500×750
|
≤425
|
50-100
|
40-110
|
45
|
1956×1918×1920
|
|
PE600×900
|
≤500
|
60-125
|
90-180
|
55
|
2250×2733×2280
|
|
PE800×900
|
≤600
|
80-140
|
100-220
|
75
|
2450×2950×2490
|
|
PE750×1060
|
≤630
|
60-150
|
110-380
|
110
|
2531×2455×2783
|
|
PE900×1060
|
≤700
|
100-160
|
230-390
|
110
|
2900×2657×2950
|
|
PE900×1200
|
≤750
|
110-165
|
220-450
|
132
|
3100×2760×3260
|
|
PE1000X1200
|
≤900
|
110-185
|
315-500
|
132
|
3200×2760×3260
|
|
PE1200×1500
|
≤950
|
115-195
|
400-800
|
220
|
3710×3446×4075
|
|
PE1500×1800
|
≤1200
|
135-225
|
500-1000
|
280
|
5100×4700×4300
|
|
PEX150×750
|
≤120
|
10-40
|
8-25
|
15
|
1310×1118×1145
|
|
PEX250×750
|
≤210
|
15-50
|
15-35
|
22
|
1400×1751×1515
|
|
PEX350×750
|
≤300
|
15-50
|
18-40
|
30
|
1485×1680×1648
|
|
PEX250×1000
|
≤210
|
15-60
|
15-60
|
30
|
1550×1964×1380
|
|
PEX250×1200
|
≤210
|
15-60
|
20-60
|
37
|
1530×1946×1380
|
|
PEX300×1300
|
≤250
|
25-60
|
16-105
|
55-75
|
2000×2320×1730
|
Successful Project
Packing & Shipping
PE-250×400 and smaller model are packing in wooden box, Motor , v-belt , Anchor bolt , control cabinet, spare parts etc. are packing into wooden box. Big model jaw crushers are nude packing into container directly, some super big jaw crusher have to disassemble and load into several container.
Customer Visit
Our Customers and Business Partners Around The World
Through long-term arduous technology research and international communication, all of the products have passed the authentication of ISO 9001, CE and GOST, winning many customs acclaim and honor, and our products are exported to 160+ countries : India, Tanzania, Nigeria, South Africa, Kenya, Zambia, Uganda, Ghana, Indonesia, Egypt, Australia, Vietnam, Ethiopia, etc
