Quick Details
-
Brand Name:
-
MD
-
Model Number:
-
MPPT
-
Work Time (h):
-
24
-
Max PV Power:
-
1000Wp
-
Max PV Voltage:
-
60Vdc, 230v
-
Certificate:
-
CE, TUV Listed: IEC 62109
-
Warranty:
-
1 year
-
Product name:
-
12V/24V/48V/60V/72V/84V/96V Auto Detection
-
Charge mode:
-
MPPT Charging
-
Size:
-
22*27*10cm
-
Weight:
-
2.2Kg
-
Battery type:
-
Sealed Gel AGM Flooded Lithium
-
Keywords:
-
MPPT
-
OEM:
-
Yes
Quick Details
-
Type:
-
MPPT
-
Application:
-
Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MD
-
Model Number:
-
MPPT
-
Work Time (h):
-
24
-
Max PV Power:
-
1000Wp
-
Max PV Voltage:
-
60Vdc, 230v
-
Certificate:
-
CE, TUV Listed: IEC 62109
-
Warranty:
-
1 year
-
Product name:
-
12V/24V/48V/60V/72V/84V/96V Auto Detection
-
Charge mode:
-
MPPT Charging
-
Size:
-
22*27*10cm
-
Weight:
-
2.2Kg
-
Battery type:
-
Sealed Gel AGM Flooded Lithium
-
Keywords:
-
MPPT
-
OEM:
-
Yes

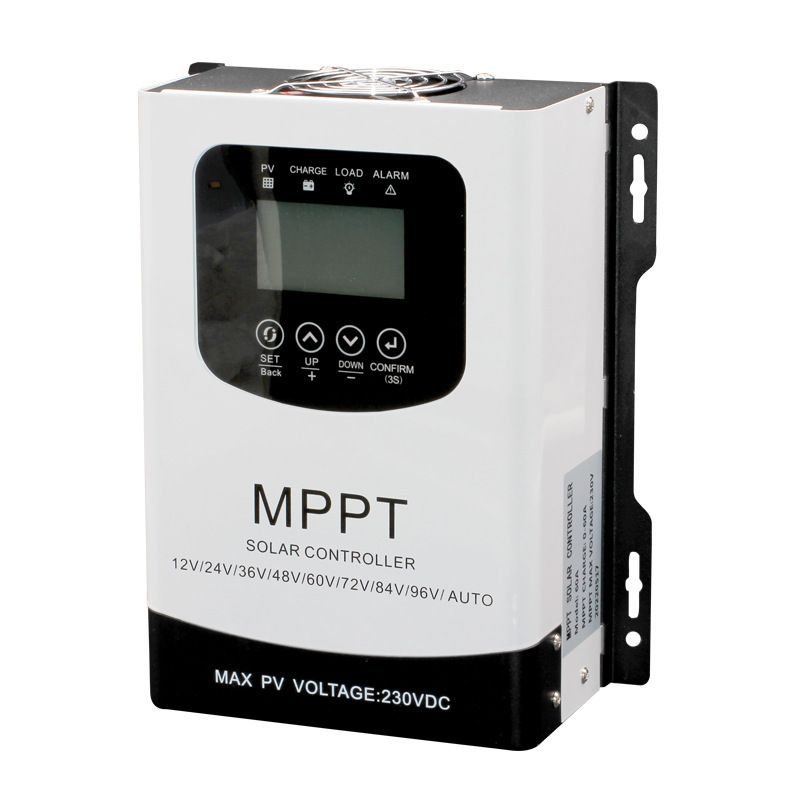

Product Description
| MPPT Model | BDC-30A | BDC-40A | BDC-50A | BDC-60A | BDC-70A | BDC-80A | |||
| Rated Current | 30A | 40A | 50A | 60A | 70A | 80A | |||
|
Rated Maximum PV Input
Power |
12V batterv | 360W | 480W | 600W | 720W | 84 0W | 960W | ||
| 24V battery | 720W | 960W | 1200W | 1440W | 1680W | 1920W | |||
| 36V batterv | 1080 | 1440W | 1800W | 2160W | 2520W | 2880W | |||
| 48V batterv | 1440W | 1920W | 2400W | 2880W | 3360W | 3840W | |||
| 60V battery | 1800W | 2400W | 3000W | 3600W | 4200W | 4800W | |||
| 72V batterv | 2160W | 2880W | 3600W | 7320W | 5010W | 5760W | |||
| 84V battery | 2520W | 3360W | 4200W | 5040W | 5880W | 6720W | |||
| 96V battery | 2880W | 3840W | 4800W | 5760W | 6720W | 7680W | |||
| charging mode | MPPT Automatic maximum power tracking | ||||||||
| charge mode | Fast chargex Equalized Charging, Floating charge | ||||||||
| Type of battery | lead battery | (12V/24V/36V/48V/96V automatic identification) (12V/24V/36V/48V/60V/72V/84V/96V adjustable) | |||||||
| Gel battery | 12V/24V/36V/48V/60V/72V/84V/96V adjustab1e | ||||||||
| Lifepo4 | Cell voltage 3. 2V (2s—45s adjustable) | ||||||||
| Li-ion | Cell voltage 3. 7V (2s—45s adjustable) | ||||||||
| user defined | CC-V,FLA-VN DC discharge voltage is adjustable: 8V--170V | ||||||||
| Lithium battery activation function |
pv input, there is a charging voltage (to activate the lithium) that can be
used without the battery de output |
||||||||
| Pv minimum voltage starts charging | The PV is greater than the battery voltage +3V | ||||||||
| PV Maximum open circuit input voltage | 0-230V | ||||||||
| PV charging current is adjustable | 0-30A | 0-40A | 0-50A | 0-60A | 0-70A | 0-80A | |||
| DC ouftput current | Continuous de output 25A | Continuous de output 50A | |||||||
| Temp. Comp | Automatic compensation of charging voltage and current according to battery temperature, prolong battery life | ||||||||
| LCD touch key press | LCD display: (Total/Pv voltage/battery voltage/charge current/ power/operating state) | ||||||||
|
set: (type of battery, charge currentN factory reset)
,Chinese and English characters display |
|||||||||
| RS485 | Can query the running status and Settings | ||||||||
| operating temperature | IOC +45C | ||||||||
| quiescent dissipation | 2W | ||||||||
| overall efficiency | 96. 5%-99% | ||||||||
| temperature protection | +85 ℃ | ||||||||
| Temperature rise protection | +80C This reduces power output | ||||||||
| defensive function | short circuit, overvoltages overcharges reverse polarity protect ion,1ow-vo1tage protection | ||||||||
| humidity | 0-90%RH | ||||||||
| Mechanical protection class | IP21 | ||||||||
| altitude | 0"3000m | ||||||||
| size | 215nim*202mm* 100mm | 265mm*218mm*100mm | |||||||
| suttle | 1.95KG | 2. 6KG | |||||||
