Quick Details
-
Other name:
-
Handle Lock
-
Finish:
-
sliver poeder coated
-
Material:
-
zinc alloy
-
Application:
-
cable cabinet /electrical cabinet
-
Free sample:
-
Available, but freight collect
-
Management Certification:
-
ISO9001:2008
-
OEM/ODM,small order:
-
accepted
-
keyword-1:
-
Panel Door Lock
-
RoHS compliant:
-
Yes
Quick Details
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
Lipson
-
Name:
-
Panel Lock
-
Other name:
-
Handle Lock
-
Finish:
-
sliver poeder coated
-
Material:
-
zinc alloy
-
Application:
-
cable cabinet /electrical cabinet
-
Free sample:
-
Available, but freight collect
-
Management Certification:
-
ISO9001:2008
-
OEM/ODM,small order:
-
accepted
-
keyword-1:
-
Panel Door Lock
-
RoHS compliant:
-
Yes
LM-843-1 Waterproof Electrical Cabinet Door Swing Handle Cam Lock Industrial Box Lift and Turn Latch Plane Control Panel Lock
Description for Panel Lock
1.Material-- Zinc alloy
2.Finish--
Sliver powder Coated
3.Feature--
LM-843 series is thin type latches, and design of stopper plate can be allowed left and right hand open.
4.Suitable Panel thickness--
1.5~3mm.
5.Application--
Cubicle, control panel, cabinet door, distribution panel, kitchen furnishings, ship equipment.
6.Type: electric cabinet latch lock

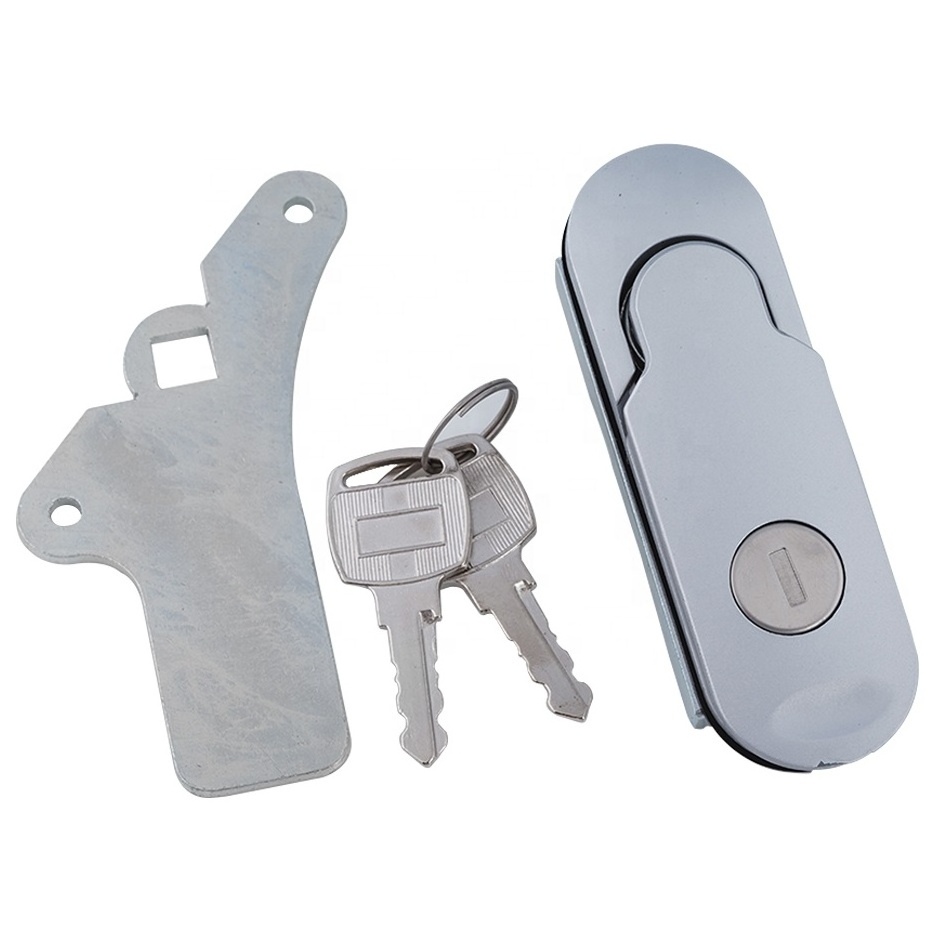

Picture of Handle Lock
More information of Plane Lock
| Product Name | Electrical panel door lock, Locking Cabinet Latch, electrical panel latch, Push Button Cabinet Lock, Electronic Cabinet Lock, Metal Cabinet Lock, Industrial cabinet lock, Electric panel lock, electric latch, industrial cabinet latch, electric cabinet latch, electric cabinet lock, swing cabinet latch lock, flush lock |
| Material | Body:Zinc Die Casting Body |
| Shaft, cylinder:Zinc alloy die cast | |
| Cam:Steel with zinc plating | |
| Dimension(L*W) | LM-843-1: 89mm*28mm |
| Finish | Sliver powder coated |
| Feature | 1) Handle can operate with the push-button when unlocking. |
| 2) Push Buton isincorporated in the lift handle to increase the effective length of the grip so operation is easy | |
| 3) For both left hand and right hand use.(the left hand and right hand use can be changed by reversing the cam and stopper plate. | |
| 4) Smallprotrusion from the panel surface and waterproof (O-ring and sheet packing) | |
| Panel Drilling dimensions | 63mm*24mm |
| Usage and Feature | Automotive, Passenger Vehicles and Trucks, Metal or nonmetal cabinet,public telephones,metro auto-gate,Intelligent Terminal Device,Financial Terminals,Game Consoles,Vending Machine,Strongbox, Advertising Box and etc. |
| Sample | Free sample,Freight amount should be paid by customer. |
| MOQ | 100 PCS |
| Website | www.lipson.com.tw |
| Certification | ISO9001:2008 |
| Payment | T/T, L/C, Paypal |
size specification of Panel Door Lock
