Quick Details
-

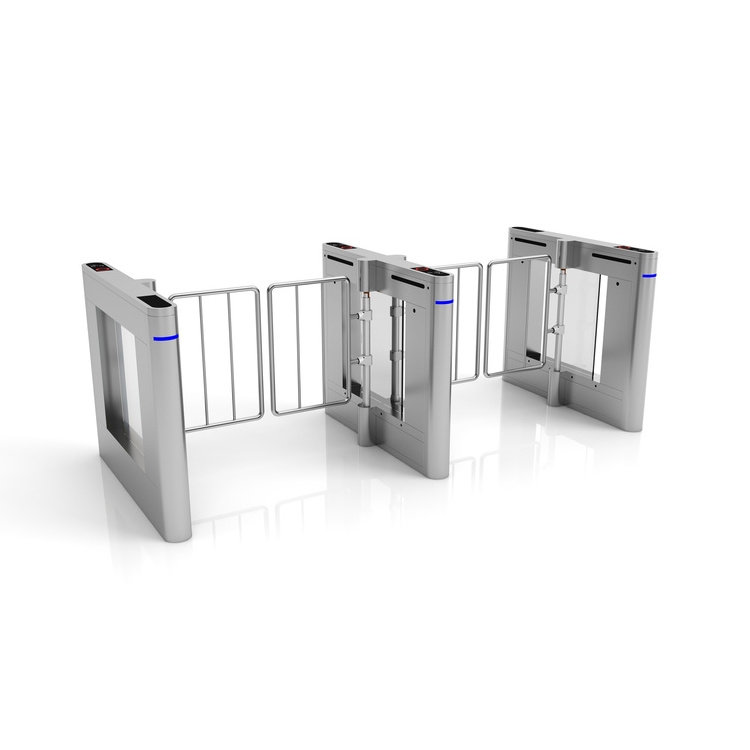

Product name:
-
swing barrier
-
Material:
-
304 Stainless Steel
-
Power supply:
-
AC 220V/110V 10% 50/60MHZ (optional)
-
Working environment:
-
Temperature: -10 ~ +60
-
Passage Width:
-
600mm-1000mm
-
Passage Direction:
-
Bi-drectional
-
Color:
-
Customized Color
-
Communication:
-
Dry Contact/RS485
-
Application:
-
Security Access Control Management
-
Warranty:
-
Life Time Technical Support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
xinyun
-
Model Number:
-
XY-B208
-
Product name:
-
swing barrier
-
Material:
-
304 Stainless Steel
-
Power supply:
-
AC 220V/110V 10% 50/60MHZ (optional)
-
Working environment:
-
Temperature: -10 ~ +60
-
Passage Width:
-
600mm-1000mm
-
Passage Direction:
-
Bi-drectional
-
Color:
-
Customized Color
-
Communication:
-
Dry Contact/RS485
-
Application:
-
Security Access Control Management
-
Warranty:
-
Life Time Technical Support
|
1. Material |
304stainless steel, thickness:1.5mm(full thickness) |
|
2. Dimension |
L1200*W120*H1000mm. |
|
3. Channel width |
≥600mm |
|
4. arm material |
Stainless steel / transparent acrylic optional |
|
5. Infrared |
standard 6 pairs.(Can be expanded to 10 pairs) |
|
6. Environmental requirements |
waterproof model, which can be used indoors and outdoors(canopy). |
|
7. Communication Interface |
RS485, Dry contact |
|
8.Passage Direction |
Single directional/Bi-directional |
|
9 . Motor |
DC brush, rebound in case of resistance. |
|
10 . Power of the whole machine |
50W. |
|
9. Traffic speed |
≥ 30 people per minute |
|
1 1 .Opening mode support |
swiping card, QR code, ESD, fingerprint, face recognition,etc. |
Product feature
1.Special anti-span design, wing arm far higher than the standard barrier 85cm, effectively enhance safety control
2. The whole machine can be customized for high-end glaze plating, with a variety of colors to match each hue environment.
3. The machine cover is high-grade black cotton covered with anti-condensation.
4. Special structure design, arm swing is not limited by the fuselage, and can adapt to the scene with wide channel.
5. Standard 92mm fan negative pressure exhaust, effective cooling, dehumidification, reducing failure rate.
6. Each channel defaults to 6 pairs of infrared radiation protection.
7. Standard air switch.
8. Power of the whole machine: 50W.
9. Traffic speed: ≥ 30 people per minute
10.Opening mode support: swiping card, QR code, ESD, fingerprint, face recognition,etc.
