1)Raw material :Low carbon steel, stainless steel, aluminum alloy
2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
3)Open-end type and closed-end type
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
deck
-
Design Style:
-
Eclectic
-
Weight:
-
none
-
Chemical Composition:
-
steel
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ASO
-
Model Number:
-
ASO-005
-
Product name:
-
walkway grating deck grating / galvanized steel catwalk grill
-
Grating Standard:
-
YB/T4001.1-2007, BS4592-1-1995, MBG531-88, GB700-88,GB1220-92, etc.
-
Finishing treatment:
-
1.Galvanized, 2.Untreated(black self-color), 3.painted
-
Galvanization Standard:
-
GB/T 13912, ISO 1461, JIS H8641,ASTM A123,AS1650 ,BS 729
-
Advantage:
-
Heavy duty, ventilative, skid resistance, anti-explosion, etc.
-
Grating Specification:
-
19-w-4, 15-w-2, 30/100, 40/50, 60/100 and all
-
Grating Size:
-
3'x20', 3'x24', 3'x30', 1000x1000, 1000x5800, 1000x6000mm and all
-
Grating Steel Material:
-
Low carbon steel, mild steel, stainless steel
-
Grating Application:
-
Industrial platform, flooring and walkway, traffic, steel structure
-
Certificate:
-
ISO 9001, CE
Quick Details
-
Warranty:
-
3 years
-
After-sale Service:
-
Other
-
Project Solution Capability:
-
3D model design, Others
-
Application:
-
deck
-
Design Style:
-
Eclectic
-
Weight:
-
none
-
Chemical Composition:
-
steel
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ASO
-
Model Number:
-
ASO-005
-
Product name:
-
walkway grating deck grating / galvanized steel catwalk grill
-
Grating Standard:
-
YB/T4001.1-2007, BS4592-1-1995, MBG531-88, GB700-88,GB1220-92, etc.
-
Finishing treatment:
-
1.Galvanized, 2.Untreated(black self-color), 3.painted
-
Galvanization Standard:
-
GB/T 13912, ISO 1461, JIS H8641,ASTM A123,AS1650 ,BS 729
-
Advantage:
-
Heavy duty, ventilative, skid resistance, anti-explosion, etc.
-
Grating Specification:
-
19-w-4, 15-w-2, 30/100, 40/50, 60/100 and all
-
Grating Size:
-
3'x20', 3'x24', 3'x30', 1000x1000, 1000x5800, 1000x6000mm and all
-
Grating Steel Material:
-
Low carbon steel, mild steel, stainless steel
-
Grating Application:
-
Industrial platform, flooring and walkway, traffic, steel structure
-
Certificate:
-
ISO 9001, CE

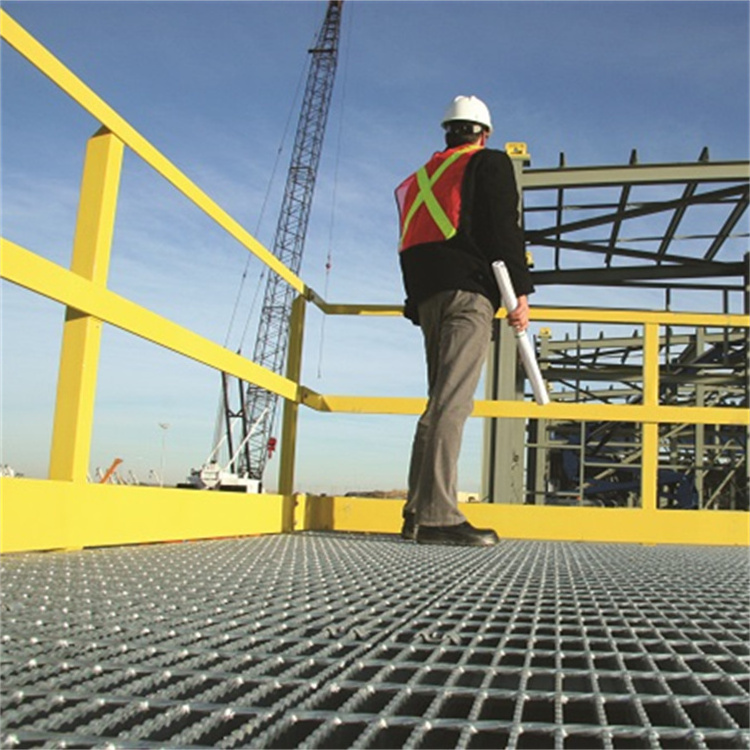

High quality walkway grating deck grating / galvanized steel catwalk grill
Product Description
Steel Grating made by welding with flat steel and cross/round bars with certain distances.
Our Galvanized Steel Grating enjoy the feature of high strength, light structure, high bearing,
convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.
Product Specification
|
Specification of
Steel Grating
|
|
|
|
Remarks: Special Material, High Zinc Coating and New Style can be Customized.
|
|
|
|
Material Standard
|
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,
Mild steel & Low carbon steel, etc |
|
|
Bearing Bar
(Width x Thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
|
|
Bearing Bar Pitch
|
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
|
|
Twisted Cross Bar Pitch
|
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
|
|
|
Surface Treatment
|
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
|
|
|
Grating Style
|
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
|
|
|
Packing
|
(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
|
|
Payment Term
|
T/T, L/C, Western Union, Credit Card, Alibaba Trade Assurance
|
|
|
Product Name: Metal Serrated Steel Grid Grating To Construction Building Material
|
|
|
Products detail
more stype of steel grating
Application
steel grating
flooring steel gratings stair treads -sun shades drain covers -security screen
-manhole covers -mezzanine flooring -earth mats -shelving -Stanchions (hand rails)
-trench covers
-manhole covers -mezzanine flooring -earth mats -shelving -Stanchions (hand rails)
-trench covers
Why Choose Us
FAQ
Q:What makes your fence products different from other company’s?
A: ASO fence provide free design service, customization and warranty service, with strictly quality control and very competitive price.
Q: Can I get a pcs of your products sample?
A: Yes, free samples will be provided anytime.
Q: What type of materials do you use for fence?
A: Most of the wire we use is low carbon steel wire. The core wire for razor wire is high tension strength steel wire. Post material is Q235.
Q: Will my fence rust, peel, fade or chip?
A: It shows more details in our warranty policy. If without manmade crash, punch, acid wash, etc, the surface can last for more than 10 years.
Q: What are fittings and how are they used?
A: We have hundreds of fittings for our fence products. Different type of fence comes with different accessories
Q: How do I take care of my new fence?
A: Just try to avoid manmade crash, acid, etc.
