Quick Details
-
Model Number:
-
CYJ
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Regular
-
Weight:
-
15000 KG
-
Features:
-
API 11E Spe
-
Product Name:
-
walking beam pump jack
-
Type:
-
B, C
-
Standard:
-
API 11E
-
Torque of the reducer:
-
16000-1824000in.lbs
-
Polished rod load:
-
5300-42700lbs
-
Length of stroke:
-
23-240in
-
Way of balance:
-
walking beam
-
Advantage:
-
long stroke and low frequency stroke
-
Purpose:
-
offer power to sucker rod pump
-
Package:
-
nude
Quick Details
-
Production Capacity:
-
100%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZS
-
Model Number:
-
CYJ
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Regular
-
Weight:
-
15000 KG
-
Features:
-
API 11E Spe
-
Product Name:
-
walking beam pump jack
-
Type:
-
B, C
-
Standard:
-
API 11E
-
Torque of the reducer:
-
16000-1824000in.lbs
-
Polished rod load:
-
5300-42700lbs
-
Length of stroke:
-
23-240in
-
Way of balance:
-
walking beam
-
Advantage:
-
long stroke and low frequency stroke
-
Purpose:
-
offer power to sucker rod pump
-
Package:
-
nude

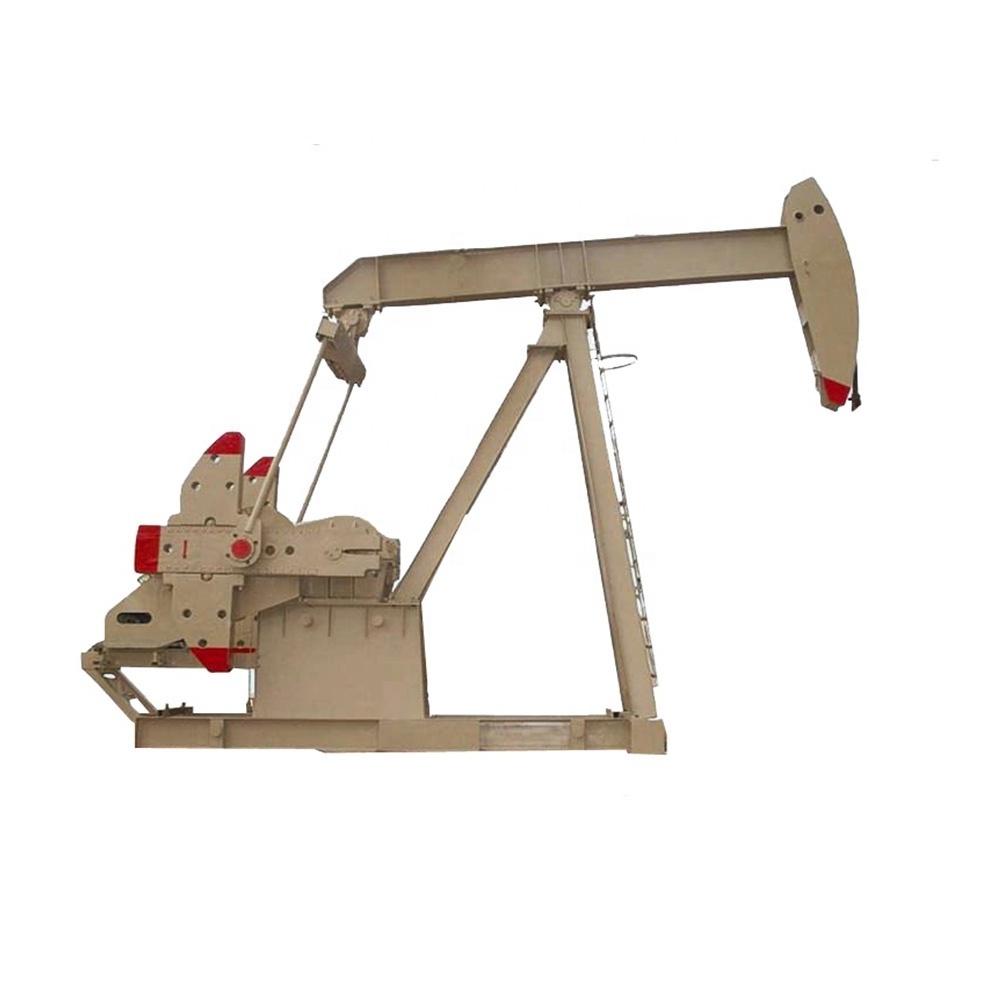

API 11E crude oil extraction walking beam pump jack for sale
2. API Q1, 5CT, 11AX, 6A,11E and ISO Certificates
3. Strict Quality Control System
4. Prompt Delivery Time
1) Product Name: walking beam pump jack
2) Standard: API Spec 11E
3) API and ISO certified
4) Type: B, C
5) Description
API B Series walking beam pump jack is a light-weight conventional beam pumping unit, adopting walking beam as its way of balance.
API C Series walking beam pump jack is a conventional beam pumping unit, adopting crank as its way of balance.
6) Features of B Series walking beam pump jack
a. Simple structure, easy maintenance and long lifespan.
b. Adopted the involute or biarc herring bone gear in symmetric distribution type to transmit, the reducer operates stably and reliably.
c. The whole machine is light weighted, convenient for installation and transportation.
d. This model is fit for the oil pumping in shallow well with short length of stroke and light loads.
7) Features of C Series walking beam pump jack
a. Featured in modular and virtual manufacturing technology design, the product boasts of its optimizing structure and high level of standardization, generalization and serialization.
b. Having passed the FEM(finite element) analysis and research, the key structural components possess stable performance and high reliability.
c. Adopted the involute or biarc herring bone gear in symmetric distribution type to transmit, the reducer is renowned for its tight seal, low noise, smooth operation and reliability and durability.
d. The whole machine features in easy operation, convenient maintenance and long lifespan.
8) Parameter of B Series walking beam pump jack
| NO. | Model | Rated Polished Rod Load(lb) | Length of Stroke(in) | Rated Torque of the Reducer(in.lb) |
| B-80D-119-64 | 11,900 | 64, 54 | 80,000 | |
| B-80D-76-64 | 7,600 | 64, 54 | 80,000 | |
| B-80D-133-54 | 13,300 | 54, 41 | 80,000 | |
| B-80D-119-54 | 11,900 | 54, 41 | 80,000 | |
| B-80D-76-54 | 7,600 | 54, 41 | 80,000 | |
| B-80D-133-48 | 13,300 | 48, 35 | 80,000 | |
| B-80D-109-48 | 10,900 | 48, 35 | 80,000 | |
| B-57D-109-54 | 10,900 | 54, 41 | 57,000 | |
| B-57D-89-54 | 8,900 | 54, 41 | 57,000 | |
| B-57D-76-54 | 7,600 | 54, 41 | 57,000 | |
| B-57D-109-48 | 10,900 | 48, 35 | 57,000 | |
| B-57D-95-48 | 9,500 | 48, 35 | 57,000 | |
| B-57D-89-48 | 8,900 | 48, 35 | 57,000 | |
| B-57D-89-42 | 8,900 | 42, 32 | 57,000 | |
| B-40D-89-48 | 8,900 | 48, 35 | 40,000 | |
| B-57D-76-42 | 7,600 | 42, 32 | 57,000 | |
| B-40D-76-42 | 7,600 | 42, 32 | 40,000 | |
| B-25D-67-36 | 6,700 | 36, 27 | 25,000 | |
| B-25D-53-30 | 5,300 | 30, 23 | 25,000 | |
| B-16D-53-30 | 5,300 | 30, 23 | 16,000 |
9) Parameter of C Series walking beam pump jack
