Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Changjiang electric
-
Model Number:
-
LA38-**Y2/209B
-
Mounting hole:
-
22mm
-
Material:
-
flame-retardant plastic
-
Operation type:
-
Turn the key, lock or reset
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
Certificate:
-
CCC CE ROSH
-
web:
-
http://en.cjel.com
-
Product name:
-

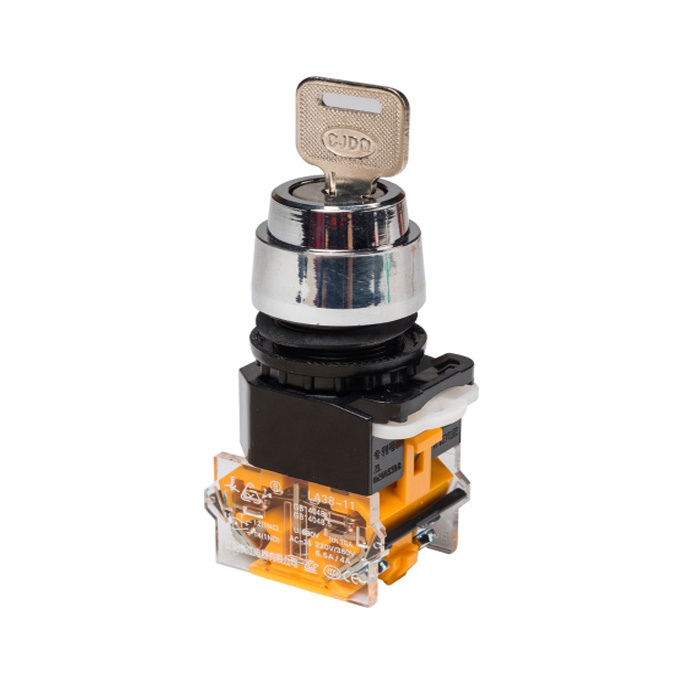

LA38 series 22mm Key Lock Switch 2 Position Spring Return Key Switch
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP54/IP65
-
Max. Current:
-
AC-15:Ue:AC220V/Ie:5.5A
-
Max. Voltage:
-
500V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Changjiang electric
-
Model Number:
-
LA38-**Y2/209B
-
Mounting hole:
-
22mm
-
Material:
-
flame-retardant plastic
-
Operation type:
-
Turn the key, lock or reset
-
Contact configuration:
-
1NO/1NC/2NO/2NC/1NO1NC...
-
Certificate:
-
CCC CE ROSH
-
web:
-
http://en.cjel.com
-
Product name:
-
LA38 series 22mm Key Lock Switch 2 Position Spring Return Key Switch
-
Certification:
-
CE
22mm key rotary push button switch position selector switch
China Shanghai institute of electrical science carried out a strict full set type tests for our push button switch products.Products are identified by the experts in the industry.Finally we got the LA38 product model in October 17, 1996 . When you are purchasing, please identify the LA38 series button switch produced by Jiangyin Changjiang electric appliance co.,ltd
Outline & Size of mounding hole
|
LA38-** Y2/209B |
||||||||||
|
Name |
2 or 3 position key rotary switch |
|||||||||
|
Products Standard |
GB/T14048.5 IEC60947-5-1 |
|||||||||
|
Operation Condition |
Altitude height |
Environment temperature |
Storage temperature |
Relative humidity |
Pollution class |
Install type |
||||
|
≤2000m |
-25℃ ~+55℃ |
-40℃ ~+70℃ |
≤90% |
3 |
Ⅲ |
|||||
|
Main technical index |
|
Rated insulated Voltage |
500V |
|||||||
|
Insulated resistance |
Ui ≤60V |
≥5MΩ |
||||||||
|
60V |
≥50MΩ |
|||||||||
|
Front protect class |
can custom IP65 |
|||||||||
|
Withstand Voltage |
1.89KV/5S |
|||||||||
|
Work Frequency |
50Hz |
|||||||||
|
button parameter |
Stipulated hot current Ith |
10A |
||||||||
|
Contact resistance |
≤50mΩ |
|||||||||
|
Rated working Voltage /Current |
AC-15 |
DC-13 |
||||||||
|
220V/5.5A |
110V/1 A |
|||||||||
|
380V/4A |
220V/0.45 A |
|||||||||
|
Electrical life |
10E4 times |
10E4 times |
||||||||
|
Mechanical life |
20E4 times |
|||||||||
Certificate
