Item:
-
Electric Power Smart Analog Digital Energy Meter/Kilo Watt Hour Meter
-
Color:
-
Black or transparent
-
Rated voltage:
-
110V/220V/230V/380V400V
-
Rated current:
-
1.5(6)A,2.5(10)A,5(20)A,3(12)A,10(40)A,15(60)A,20(80)A,30(100)A
-
Rated Frequency:
-
50HZ/60HZ
-
Certificate:
-
CE,CB,CCC
-
Standard:
-
IEC521-1988
-
Base:
-
metal
-
Function:
-
measurement the active electric energy
-
Life cycle:
-
>10 years
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
1.5A-100A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CGZ
-
Model Number:
-
DDS2688
-
Accuracy Class:
-
class1/class2
-
Output Voltage:
-
400V
-
Operating Temperature:
-
-25 +60℃
-
Dimensions:
-
decide by product
-
Item:
-
Electric Power Smart Analog Digital Energy Meter/Kilo Watt Hour Meter
-
Color:
-
Black or transparent
-
Rated voltage:
-
110V/220V/230V/380V400V
-
Rated current:
-
1.5(6)A,2.5(10)A,5(20)A,3(12)A,10(40)A,15(60)A,20(80)A,30(100)A
-
Rated Frequency:
-
50HZ/60HZ
-
Certificate:
-
CE,CB,CCC
-
Standard:
-
IEC521-1988
-
Base:
-
metal
-
Function:
-
measurement the active electric energy
-
Life cycle:
-
>10 years
Power quality analyzer smart energy meters
1. Electrical Meter Description
This energy meter is a induction meter,which is applicable to measure the rated frequency 50Hz and power loss of active and reactive energy meter. The series active energy meters are completely conformed to National Standard GB/T17218.311 -2008 ClassO5,1 and 1 AC Active Watt-hour Meter and International Standard lEC5yea21. All technical targets of reactive meter are completely conformed to National Standard GB/T 15282-1994 Reactive Watt hour Meter and International Standard IEC60521.
2. Electrical Meter Technical Data
this series Single phase kwh meter (power meter):
1.Model:DDS2688
2.Standard:IEC521-1988
3.Function:measurement the active electric energy
4.Rated current:1.5(6)A,2.5(10)A,5(20)A,3(12)A,10(40)A,15(60)A,20(80)A,30(100)A
5.Rated voltage:400V
6.Accuracy:0.5,1,2
7.Rated frequency:50Hz
8.Bearing:Single-jewel,dual jewel,magnetic floating
9.Case:Aluminum,plastic,glass
10.Certificate:ISO9001:2000, ISO14001:1996,CE
|
energy meter Name |
energy meter Model |
energy meter Reference voltage (V) |
energy meter Accuracy |
energy meter Basic current)( Max rated current )(A) |
|
3 phase 4 wire
Active
energy meter |
DT862 |
3X220/380 |
2
|
3X1.5(6)3(6)5(20)10(40)15(60)20(80)30(100) |
|
DT864 |
3X220/380 |
1 |
1.5(6)3(6) |
|
|
3 phase 3 wire
Active
energy meter |
DS862 |
3x380 |
2 |
3X1.5(6)3(6)5(20)10(40)15(60)20(80)30(100) |
|
3x100 |
3X1.5(6)3(6) |
|||
|
DS864 |
3x380 |
1 |
3X1.5(6)3(6) |
|
|
3x100 |
||||
|
3 phase 4 wire
Reactive
energy meter |
DX862 |
3x380 |
3 |
3X1.5(6)3(6) |
|
DX864 |
3x380 3x100 |
2 |
3X1.5(6)3(6) |
|
|
3 phase 3 wire
Reactive
energy meter |
DX865 |
3x380 3x100 |
3 |
3X1.5(6)3(6) |
|
DX863 |
3x380 3x100 |
2 |
3X1.5(6)3(6) |
Function and features:
1. The meter frame adopt aluminum molding with excellent mechanical strength,stable structure and anti-impact.
2.Voltage components and current components is used of double insulation structure,has good electrical characteristics.
3.Standard configuration the meter adopt dual gem bearing,oriented bearing is made of lubrication graphite bush and stainless steel needle.It has following features:Long-life and minimal friction,etc.May select magnetic thrust bearing.
4.All kinds of error adjustment mechanism adopt no step shifting mechanism.The meter starting and creeping needn't to be adjusted which is finished by anti-creeping hole of discand convenient for adjusting.
5.Standard configuration 6 digits display by drum wheel mechanical counter,may select 7 digits display by drum wheel mechanical counter.
6.Standard configuration without the device which can prevent retrograde,may select add the function of prevent retrograde.
7.Two components measurement three phase three wire active energy consumption.
8.Standard confiuration for direct connect operation,type A wiring,we can also choose another type of wiring,and use CT,type B wiring.
9.Standard configuration short terminals cover,may select extension terminals cover,it is for protecting use electricity safety.
3. Electrical Meter Pictures
Different electrical meter types for selection
From left to right
1.DD862-4 transparent single phase electrical meter
2.DD862-2 black single phase electrical meter
3.White Pre-paid meters
4.DT862 transparent three phase electrical meter
5.DT862 black three phase electrical meter

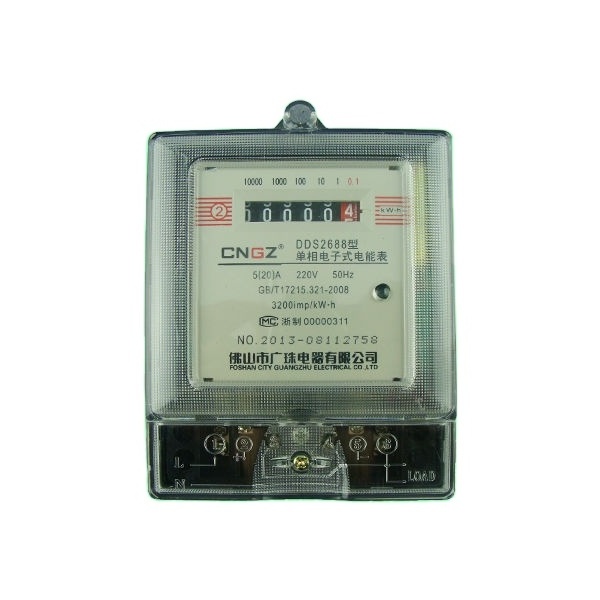

6.DDS2688 single phase electronic watt-hour meter
