- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
6 - 1500
-
Spindle Taper:
-
ISO50
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
timeway
-
Model Number:
-
BMK715
-
Dimension(L*W*H):
-
3220*2420*2800mm
-
Weight (KG):
-
7300
-
Spindle Motor Power(kW):
-
11
-
Max. Table Load(kg):
-
1500 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Bed type milling machine
-
Machine Type:
-
CNC Mill Machine
-
CNC or Not:
-
CNC Milling Machine
-
CNC Controller:
-
Fanuc Siemens Syntec KND GSK
-
Color:
-
Customers' Request
-
Model:
-
BMK715
-
After-sales Service Provided:
-
1 YEAR
-
Table size:
-
500*2100mm
-
Spindle Speed:
-
6-1500rpm
-
Machine weight:
-
7300kg
Quick Details
-
Table Travel (X) (mm):
-
1500
-
Table Travel (Y) (mm):
-
650
-
Table Travel (Z) (mm):
-
500
-
Range of Spindle Speed(r.p.m):
-
6 - 1500
-
Spindle Taper:
-
ISO50
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
timeway
-
Model Number:
-
BMK715
-
Dimension(L*W*H):
-
3220*2420*2800mm
-
Weight (KG):
-
7300
-
Spindle Motor Power(kW):
-
11
-
Max. Table Load(kg):
-
1500 kg
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Bed type milling machine
-
Machine Type:
-
CNC Mill Machine
-
CNC or Not:
-
CNC Milling Machine
-
CNC Controller:
-
Fanuc Siemens Syntec KND GSK
-
Color:
-
Customers' Request
-
Model:
-
BMK715
-
After-sales Service Provided:
-
1 YEAR
-
Table size:
-
500*2100mm
-
Spindle Speed:
-
6-1500rpm
-
Machine weight:
-
7300kg
Product Description

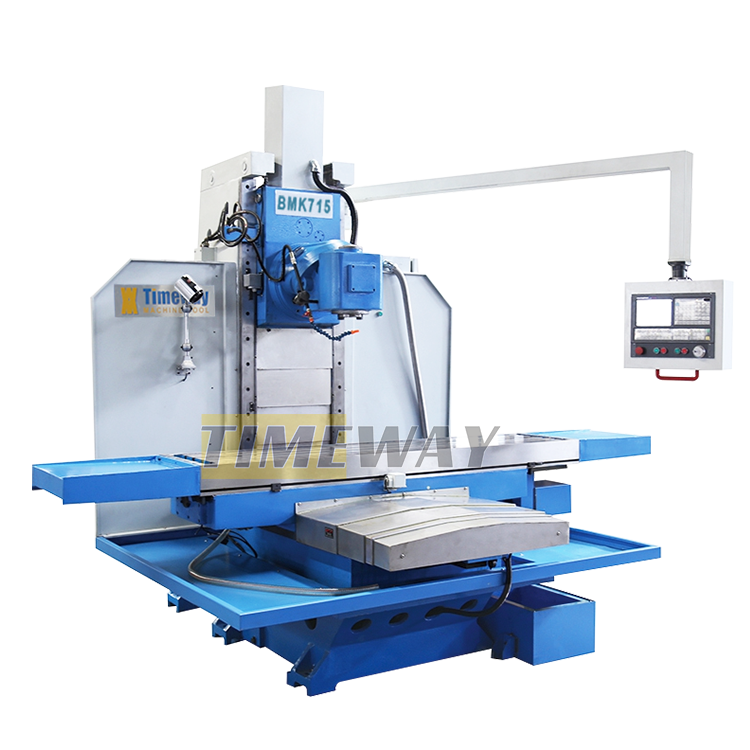

CNC Bed Type Milling Machine BMK715
Specification
|
Specification
|
Unit
|
BMK715
|
BMK716
|
|
Table size
|
mm
|
500x2100
|
600x2500
|
|
Longitudinal travel (X)
|
mm
|
1500
|
1800
|
|
Cross travel (Y)
|
mm
|
650
|
700
|
|
T slot (No./width/distance)
|
mm
|
4/20/100
|
5/20/100
|
|
Spindle taper
|
-
|
ISO50
|
ISO50
|
|
Verical spindle speed
|
rpm
|
6-1500 (2steps)
|
6-1500 (2steps)
|
|
Distance from horizontal spindle axis to table
|
mm
|
8-660
|
8-660
|
|
Distance from vertical spindle axis to column
|
mm
|
610
|
610
|
|
Distance from vertical spindle nose to table
|
mm
|
0-650
|
0-700
|
|
X/Y-axis feed speed
|
mm/min
|
2.5-3000
|
2.5-3000
|
|
X/Y-axis rapid feed speed
|
mm/min
|
6000
|
6000
|
|
Z-axis feed speed
|
mm/min
|
2.5-2500
|
2.5-2500
|
|
Z-axis rapid feed speed
|
mm/min
|
3000
|
3000
|
|
Main motor power
|
kw
|
11
|
11
|
|
X/Y/Z-axis feed motor torque
|
NM
|
18/23/18
|
18/23/18
|
|
Coolant pump power
|
kw
|
0.09
|
0.09
|
|
Machine dimensions (L×W×H)
|
mm
|
3220x2420x2800
|
4380x2520x2800
|
|
Machine weight
|
kg
|
7300
|
9000
|
Accessories
Standard accessories:
SIEMENS 808D
Draw bar
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual
Draw bar
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual
Optional accessories:
FANUC or others
The fourth axis CNC rotary table
CNC dividing head
The fourth axis CNC rotary table
CNC dividing head
Client feedback
Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
