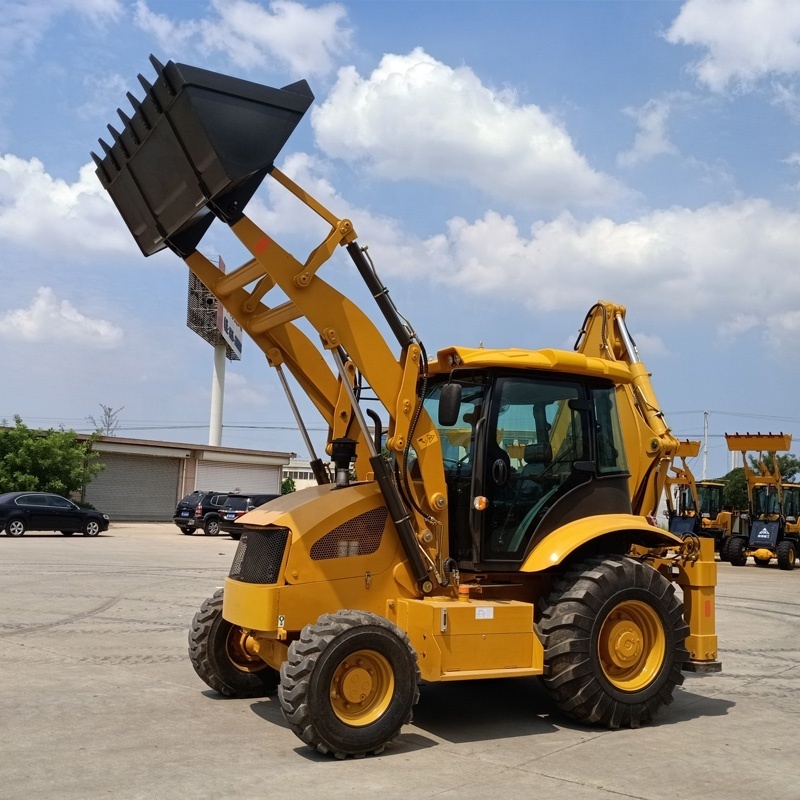

Cheap compact tractor backhoe loader four wheels tracked loaders with backhoe

Cheap compact tractor backhoe loader four wheels tracked loaders with backhoe

FOB Reference Price: Get Latest Price

≥3 Pieces

US $28500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 11300*2300*3770

Machine Weight:: 7630 kg

Bucket capacity:: 1.0m³

Product name:: FUKAI Mini backhoe Loader

Color:: Customized Color Accept

Engine type:: In Line Direct injection Four-Stroke and Injection Combustio

Tyre:: 14-17.5/19.5L-24

Quick Details

Engine Brand:: YUCHAI

Power:: 75 KW

Brand Name:: FUKAI

Place of Origin:: Shandong, China

Dimension(Long * Breadth * High):: 11300*2300*3770

Machine Weight:: 7630 kg

Bucket capacity:: 1.0m³

Product name:: FUKAI Mini backhoe Loader

Color:: Customized Color Accept

Engine type:: In Line Direct injection Four-Stroke and Injection Combustio

Tyre:: 14-17.5/19.5L-24

Product Overview

FEATURES AT A GLANCE

* HIGH OPERATING EFFICIENCY

* HIGH POWER ENGINE

* LOW FUEL CONSUMPTION

* SIMPLE CONTROL

* EASY MAINTENANCE

* LOW NOISY CAB

* LOW MAINTENANCE COST

PRODUCT SPECIFICATIONS

		Item	JFK-870
				Dimension(mm)	1130023003770
				Height over cab	3000mm
				Rated dynamic/static Load of front axle	7.5t/18.75t
				Operating weight	3Ton
				Dumping Height	2742mm
				Dumping Distance	925mm
				Min. Ground Clearance	300mm
				Bucket Capacity	1.0 m³
				Breakout Force	38 KN
				Loading Lifting Capacity	2500 KG
				Digging Depth	52mm
				Max. Digging Depth	4082mm/4500mm
				Backhoe bucket capacity	0.3m³
				Wheel base	2200mm
				Swing Angle of Excavator Grab	190°
				Max. Pulling Force	39KN
ENGINE		Engine Model	YUCHAI YC4A105Z-T20
				Engine power	75kw/2200rmp
				Pattern	In line,direct injection, 4-storke, and Injection combustion chamber.
				Cylinder-inside Diameter *Stroke	4-108*120
				Max. Torque	≥261.7N.M/ 1800r/min
				Rated Speed	2200r/min
				Displacement	4.4l
				Min. Fuel Consumption	≤216g/km.h
TRANSMISSION SYSTEM	Torque Converter	Type	Single-stage Three Elements
			Model	YJ280/TLB1-4WD
			Max. Efficiency	84.4%
			Inlet Pressure	0.5Mpa
			Outlet Pressure	1.1Mpa-1.3Mpa
				Cooling Method	Oil-cooling Pressure Circulation
		Gear Box	Type	Fixed Shaft Power Transmission
				Oil Pressure of Cluth	1373Kpa-1569Kpa
				Gears(Chinese/Carraro)	Two gears ahead, Two gears astern, Carraro four gears ahead, four gears astern
				Max. speed(Chinese/ Carraro)	28/38 Km/h
		Axels	Manufacturer	Chinese of Carraro
		Axels		Rated dynamic/static load of front axle	7t/22t
STEERING STYRE		Model of Steering Device	BZZ5-250
			Steering angle	±33°
			Min. turning radius	6950mm
			Pressure of the system	12mPA
BRAKE SYSTEM		Service Brake	Wet-type
					Internal Type
					Self-regulation
					Self-balance
			Emergency Brake	Spring Brake
			Emergency Brake		Terminating Brake Through Hydraumatic
TYRE		Model	114-17.5/19.5l-24
			Pressure of front Wheel	0.55mpa
			Pressure of Back Wheel	0.23Mpa
PACKAGE		1 Unit in 40HQ
