- High transmission and anti-reflective.
- AR coating
- AR coating
- Product Details
- {{item.text}}

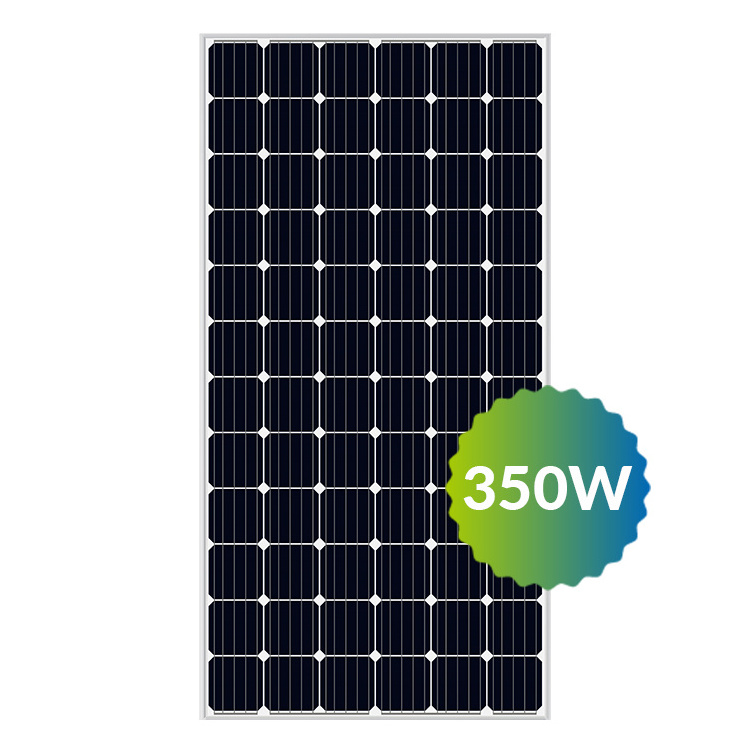

Quick Details
-
Warranty:
-
25-year, 10-year
-
Brand Name:
-
Fortune Energy
-
Model Number:
-
FEPM-350M/72
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1956 x 992 x 40 mm
-
Cell Grade:
-
A+
-
Frame:
-
Anodized aluminum alloy
-
Glass:
-
Low iron AR coated tempered glass
-
Juction-box:
-
IP68
-
Weight:
-
21.5 kg
-
Compliance:
-
CE/TUV/CEC
-
OEM/ODM:
-
Acceptable
-
Application:
-
On/off-grid/hybrid Solar System
-
Certificate:
-
TUV/IEC/CE/MCS/JIS
Quick Details
-
Cell size:
-
As shown on the details page
-
Type:
-
PERC
-
Panel Efficiency:
-
17.52%
-
Warranty:
-
25-year, 10-year
-
Brand Name:
-
Fortune Energy
-
Model Number:
-
FEPM-350M/72
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1956 x 992 x 40 mm
-
Cell Grade:
-
A+
-
Frame:
-
Anodized aluminum alloy
-
Glass:
-
Low iron AR coated tempered glass
-
Juction-box:
-
IP68
-
Weight:
-
21.5 kg
-
Compliance:
-
CE/TUV/CEC
-
OEM/ODM:
-
Acceptable
-
Application:
-
On/off-grid/hybrid Solar System
-
Certificate:
-
TUV/IEC/CE/MCS/JIS
Product Description
Fortune Energy is proud to bring Seraphim's full series of premium solar panel line
Full cell from 270W ~ 385W | Half-cut from 280W ~ 445W
MAKE INQUIRY NOW, AND ENJOY NEW CUSTOMER WELCOME DISCOUNT!
|
ELECTRICAL CHARACTERISTICS(STC*)
|
|
|
|
|
||||
|
Module Type
|
SRP-350-6MA
|
SRP-365-6MA
|
SRP-370-6MA
|
SRP-380-6MA
|
||||
|
Maximum Power(W)
|
350
|
365
|
370
|
380
|
||||
|
Open Circuit Voltage(V)
|
47.0
|
47.6
|
47.8
|
48.3
|
||||
|
Short Circuit Current(A)
|
9.51
|
9.78
|
9.88
|
10.02
|
||||
|
Maximum PowerVoltage(A)
|
38.1
|
38.7
|
38.9
|
39.4
|
||||
|
Maximum Power Current (A)
|
9.19
|
9.44
|
9.52
|
9.65
|
||||
|
Module Efficiency(%)
|
18.04
|
18.81
|
19.07
|
19.58
|
||||
|
Power Tolerance(W)
|
(0,+4.99)
|
|
|
|
||||
|
Maximum System Voltage(V)
|
1000Vdc/1500Vdc
|
|
|
|
||||
|
Maximum Series Fuse Rating(A)
|
20A
|
|
|
|
||||
|
Pmax Temperature Coefficient
|
-0.36%/°C
|
|
|
|
||||
|
Voc Temperature Coefficient
|
-0.28%/°C
|
|
|
|
||||
|
Isc Temperature Coefficient
|
+0.05%/°C
|
|
|
|
||||
|
Operating Temperature
|
-40~+85°C
|
|
|
|
||||
|
Nominal Operating Cell Temperature
|
45±2°C
|
|
|
|
||||
|
M
ECHANICAL SPECIFICATIONS
|
|
|
|
|
||||
|
External Dimensions
|
1956*992*40 mm/1970*992*40 mm
|
|
|
|
||||
|
Weight
|
21.5kg/22.0kg
|
|
|
|
||||
|
Solar Cells
|
PERC Mono crystalline 156.75*156.75 mm (72pcs)
|
|
|
|
||||
|
Front Glass
|
3.2 mm AR coating tempered glass,low iron
|
|
|
|
||||
|
Frame
|
Anodized aluminium alloy
|
|
|
|
||||
|
Junction Box
|
IP68, 3 diodes
|
|
|
|
||||
|
Output Cables
|
4.0 mm
2
,cable length:1200 mm
|
|
|
|
||||
|
Mechanical Load
|
Front side 5400Pa/Rear side 2400Pa
|
|
|
|
||||
Manufacturing Technique
- 3.2mm thickness yet strong mechanical strength.
- 22% cell efficiency
- PECVD coating guarantees color uniformity and consistency
- Anti-PID
- Smaller temperature coefficient
- Anti-PID
- Smaller temperature coefficient
- Quality diode
- Increased safety
- Reduced power loss.
- IP68 waterproof
- IP68 waterproof
Production Process
We employ advanced equipment and skilled labour, dedicated to stringent quality control, from feeding, soldering, electroluminescence (UL) test, lamination, framing to final inspection, fully automated with the highest manufacturing standards.
Recommend Products
>>Welcome to
contact us
<<
About Company
Types of Installation
Worldwide Projects
Here are some of our recent projects.
Packaging & Shipping
USEFUL NOTES AND TIPS
Unlike other electric products, solar panels' rather larger size and weight require strong packaging and careful handling.
To save cost on whether air delivery or sea shipment, we suggest customers to start with minimum 1 pallet, not only this will save final cost per piece, but also ensure complete protection of the products.
PACKAGING QUANTITY
|
External Dimensions
|
1956 x 992 x 40mm/1970 x 992 x 40mm
|
|
|
||
|
Container
|
20'GP
|
40'GP
|
40'GQ
|
||
|
Pieces per pallet
|
27
|
27
|
27+2
|
||
|
Pallets per container
|
10
|
22
|
22
|
||
|
Pieces per container
|
270
|
594
|
638
|
||
|
ORDER FULFILLMENT
|
By Air Express (Sample only)
|
By Sea Shipment
|
|
LEAD TIME
|
5 ~ 20 days
|
15 ~ 30 days
|
|
TRANSIT TIME
|
7~15 days
|
10 ~ 45 days
|
Why Choose Us
1. Are you a factory or trading company?
We design and manufacture small solar panel, custom solar panels, and we manufacture standard solar panel via certified factory, not only do we have manufacturing capability, we are also TUV certified party for 3rd-party production supervision.
2. Can you do OEM and ODM?
Absolutely. We offer a wide range of options for conventional panels and non-standard ones, tailored to most on/off-grid solar applications, along with our best pricing.
3. Can you do custom panel?
That is what we do, explain your idea, details, specification, we will lead the process clear and visible to come up with
technical and design solutions.
4. What is your lead time?
For convention panels, usually can be fulfilled between 2~3 weeks.
5. Can you provide sample?
Sure, please contact our representative for arrangement.
6. Why order from Fortune Energy?
· Quality with excellent design;
· Meets major international standards;
· 24-hour respond to any post sales service;
· Accept all major payment condition such as T/T and L/C.
7. What is your advantage?
· Key components are manufactured by our own;
· Combined 30+ years of experience in solar energy;
· Research and Development capability, OEM and ODM;
· Trade Assurance protected.
8. What are your main products?
On/off-grid solar panels, small solar panels, custom solar panels, portable solar power station generator, integrated solar street light/lamp, hybrid wind solar led street light/lamp.
We design and manufacture small solar panel, custom solar panels, and we manufacture standard solar panel via certified factory, not only do we have manufacturing capability, we are also TUV certified party for 3rd-party production supervision.
2. Can you do OEM and ODM?
Absolutely. We offer a wide range of options for conventional panels and non-standard ones, tailored to most on/off-grid solar applications, along with our best pricing.
3. Can you do custom panel?
That is what we do, explain your idea, details, specification, we will lead the process clear and visible to come up with
technical and design solutions.
4. What is your lead time?
For convention panels, usually can be fulfilled between 2~3 weeks.
5. Can you provide sample?
Sure, please contact our representative for arrangement.
6. Why order from Fortune Energy?
· Quality with excellent design;
· Meets major international standards;
· 24-hour respond to any post sales service;
· Accept all major payment condition such as T/T and L/C.
7. What is your advantage?
· Key components are manufactured by our own;
· Combined 30+ years of experience in solar energy;
· Research and Development capability, OEM and ODM;
· Trade Assurance protected.
8. What are your main products?
On/off-grid solar panels, small solar panels, custom solar panels, portable solar power station generator, integrated solar street light/lamp, hybrid wind solar led street light/lamp.
