Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Model Number:
-
ZM-CW800SBD
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
7500x2200x2070 mm
-
Weight:
-
3000 KG
-
Finishhed product:
-
side sealing bag, courier bag
-
Bag length:
-
250- 750mm
-
Bag Width:
-
250-600mm
-
Film thickness:
-
0.03- 0.04-0.1mm
-
side sealing bag making speed:
-
150PCS/MIN
-
Courier bag making speed:
-
70 pcs/min
-
Bottom Width:
-
20-60mm
-
Top turn in width:
-
50-75mm
-
Power of main motor:
-
1.5kw
-
Air comperssor:
-
5HP
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Paper
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZOMAGTC
-
Model Number:
-
ZM-CW800SBD
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
7500x2200x2070 mm
-
Weight:
-
3000 KG
-
Finishhed product:
-
side sealing bag, courier bag
-
Bag length:
-
250- 750mm
-
Bag Width:
-
250-600mm
-
Film thickness:
-
0.03- 0.04-0.1mm
-
side sealing bag making speed:
-
150PCS/MIN
-
Courier bag making speed:
-
70 pcs/min
-
Bottom Width:
-
20-60mm
-
Top turn in width:
-
50-75mm
-
Power of main motor:
-
1.5kw
-
Air comperssor:
-
5HP
Product Description

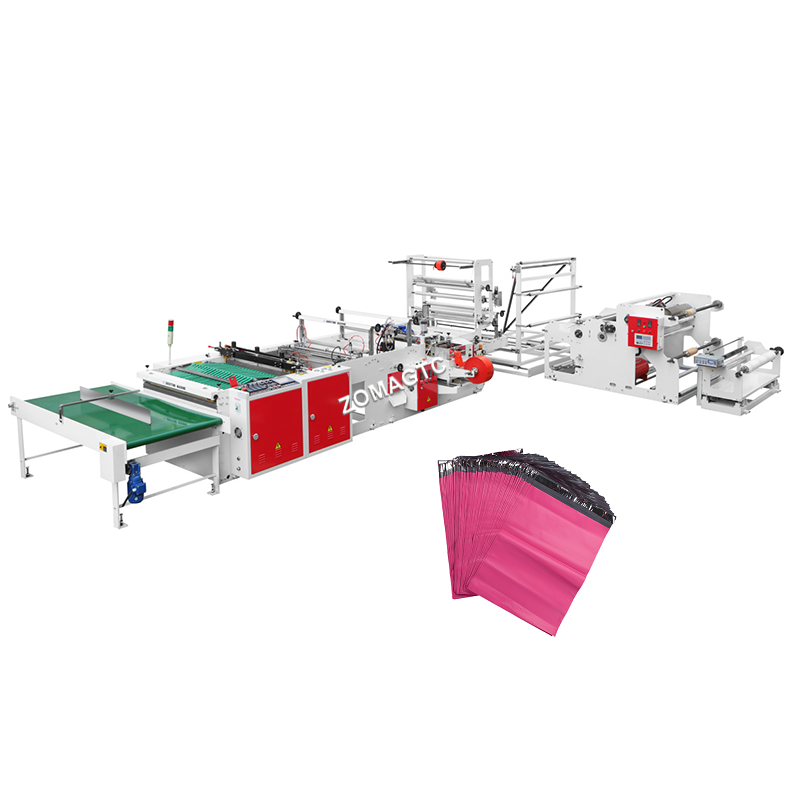

Fully automatic poly mailers plastic express bags machine polymailers courier bag making machine Bubble Envelope Bag Machinery
|
he bag which can be made
|
side sealing bag, courier bag
|
|
Max.length of the bag making
|
250- 750mm
|
|
Width size of bag making
|
250-600mm
|
|
Film thickness
|
0.03- 0.04-0.1mm
|
|
Mechanical speed
|
Side sealing bag : 150 pcs/min Courier bag : 70 pcs/min
|
|
Top folding of bag
|
50-75mm
|
|
Bottom gusset of bag
|
20-60mm
|
|
Power of main motor (ZHIBAO,TAIWAN)
|
1.5kw
|
|
The inverter of Main motor
|
Yaskawa,Japan 1.5kw
|
|
Feeding servo motor
|
3 KW,Yaskawa,Japan
|
|
Tension control
|
friction type
|
|
Temperature control
|
1 route PLC PANASONIC control
|
|
Total power
|
10 kw
|
|
Air comperssor
|
5HP
|
ADHESIVE SPRAYER
Hot air sealing device
Unwinding
1. The unwinder with automatic hydraulic loading and with max. diameter of the unwinder is 1000mm,
2. the unwinder shaft adopt plug-shaft. and air shaft alex
3. Unwinder with automatic EPC device and photocell tracking
4. With automatic tension control and magnetic power 2.5KG
5. Equipped with Triangle folding device 1600mm ( up of unwinder / separate of unwinder )
6. With 2pcs unwinder for two films of airway bill pocket of express documents
Bottom gusset.
1.14mm high hardness steel plate top folding and round bottom guset
2. Special guide plate and roller ,which offer less friction fold
3. With flat press roller
4. More thin round disc bottom gusset
5. U style mould bottom molding
Photocell of printing and preheating
1. Printing image tracking adopts photocell from SICK FROM GERMANY
2. The photocell of priting together with high technical computer ,
3. The pre-sealing knife is designed specially of bottom four layers film, high speed produce bag
4. Double sides heating, double cylinder driven, strong for gusing, and strong for sealing .
Side sealing parts
1. side sealing knife principal axis transmission belt cylinder lifting and down.
2.Side sealing knife with water cycle cooling system.
3.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
4. Side sealing knife with concealed style heating tube, temperature steady
5. Turnover heavy side sealing knife, humanism structure design, turn fast, easy to cleaning.
Convey vollect device
1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model)
2.When the bag reach to a certainty quantity,collect table will move automatically, and continuo producing.
3.Collect table is driven by Micro-motor reducing servo
